I/O Card
Dell™ Inspiron™ One 19 Service Manual
Removing the I/O Card
1.
Follow the procedures in
Before You Begin
.
2.
Remove the I/O cover (see
Removing the I/O Cover
).
3.
Remove the computer stand (see
Removing the Computer Stand
).
4.
Remove the optical drive (see
Removing the Optical Drive
).
5.
Remove the decorative cover (see
Removing the Decorative Cover
).
6.
Remove the speaker cover (see
Removing the Speaker Cover
).
7.
Remove the display bezel (see
Removing the Display Bezel
).
8.
Remove the back cover (see
Removing the Back Cover
).
9.
Remove the I/O bracket (see
Removing the I/O Bracket
).
10.

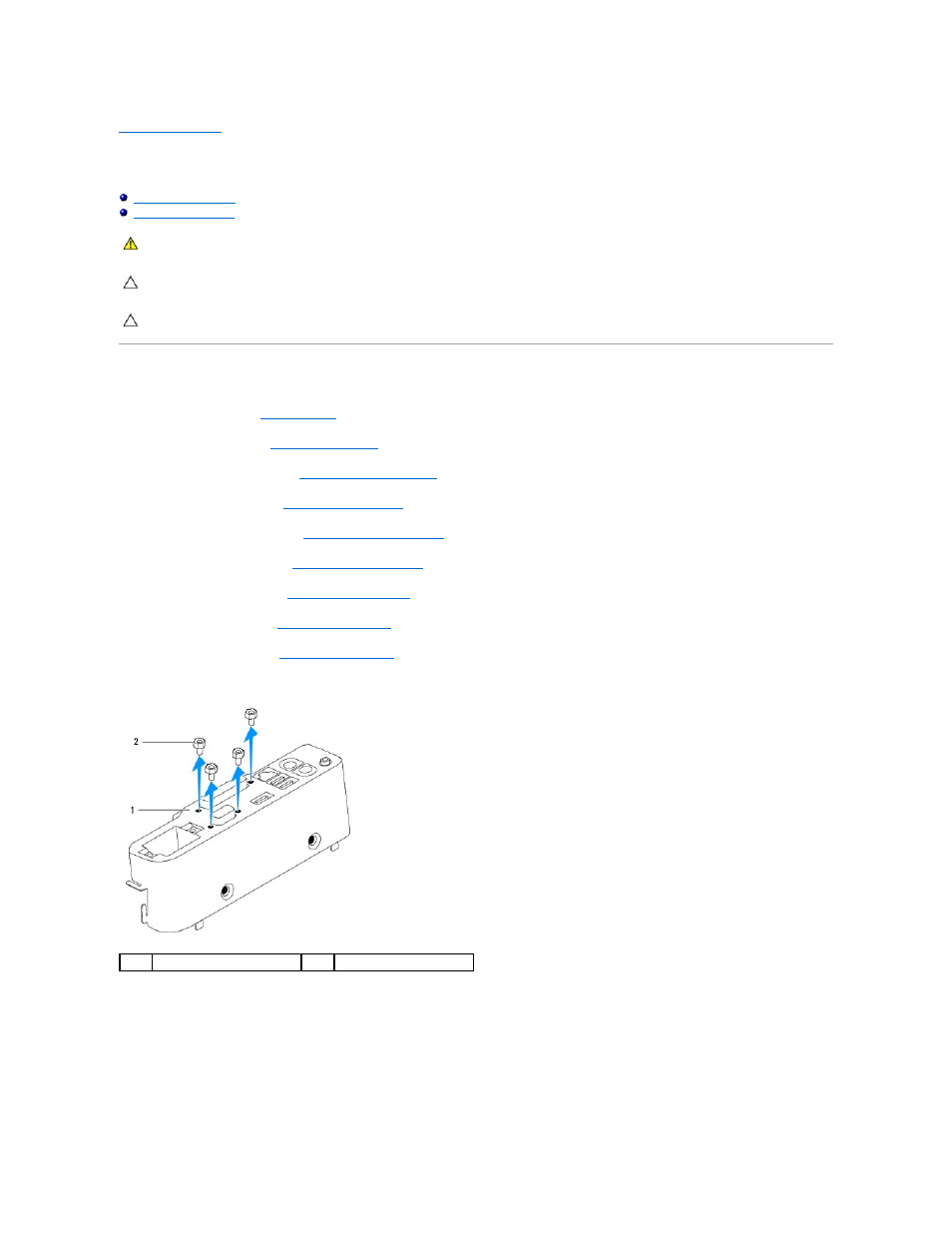

Using a hex nut driver, remove the four screws that secure the I/O card to the I/O bracket.
11.
Slide the I/O card away from the computer.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
I/O bracket
2
screws (4)
