2-15
Linksys SPA9000 Administrator Guide
Document Version 3.01
Chapter 2 Getting Started
Initial Setup and Configuration
Complete the following steps before continuing with the wizard:
1. Connect a multi-port switch to the router in your network.
2. Connect the Internet port on the SPA9000 to the switch.
3. Connect the SPA900 series phones to the switch.
4. Connect the administration PC to the switch.
5. Ensure that all devices are powered up.
6. Connect the SPA400s to the switch.
7. Power on the SPA400s.
8. Connect the FXO ports of the SPA400 to the phone ports connected to the PSTN (demarc) using a
standard telephone cord.
9. Click Next on Page 4 of the wizard.
Step 4 After making the necessary connections, click Next on Page 5 of the wizard.
The displays Page 6, as shown in Figure 2-9 .

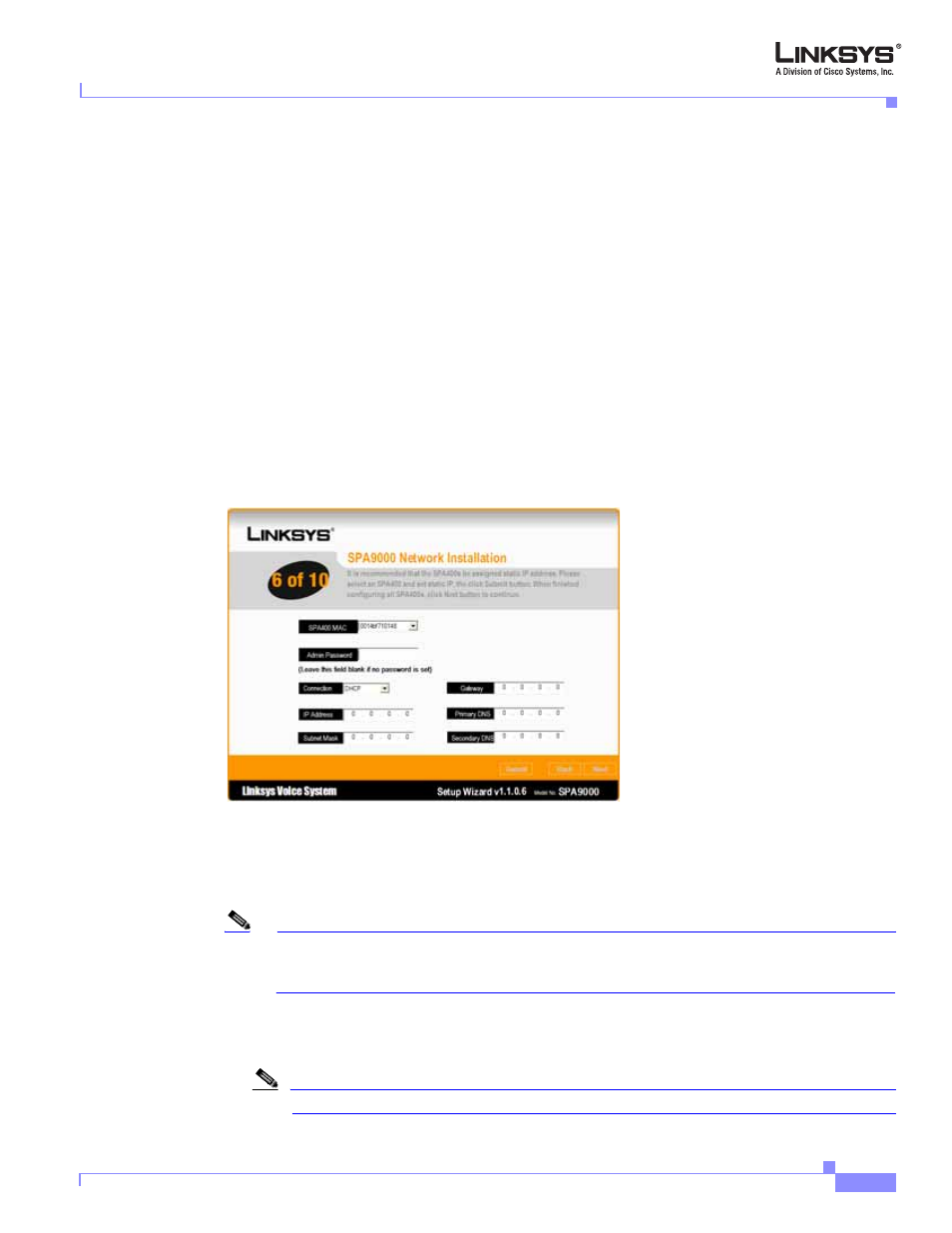

Figure 2-9 SPA Setup Wizard—Page 6
Step 5 Complete Page 6:
1. Select the MAC address of the SPA400 from the pull-down selection list.
2. Type the Administrator account password if it is set.
Note The administrator user ID for the SPA400 is Admin (with a capital A). By default, no password
is required (leave the password field empty). The administrator user ID for the SPA9000 is
admin (with a lower-case a).
3. Select the connection type (DHCP or Static IP) from the pull-down selection list.
If using DHCP, skip Step d. and do not enter any IP addresses.
Note It is highly recommended that you use Static IP addressing for the SPA400.
