Chapter 11 Data Communication
Receiving Data From an SF/CSF/NX Series Unit
This section describes how to set up and receive data from an SF/CSF/NX Series
Unit. Note that you cannot send data from a PV Unit to an SF/CSF/NX Series
Unit. In this configuration, you must set a number of communication parameters
for correct operation.
• You must purchase a separately available SB-90 in order to connect a PV
Unit to an SF/CSF/NX Series Unit.
To connect a PV Unit and an SF/CSF/NX Series Unit
1. Make sure that the power of both units is turned off.
2. Plug the cable that comes with the PV Unit into its cable connector.
3. Open the cover of the data communications jack of the SF/CSF/NX
Series Unit, and connect an optional SB-90 3-9 pin cable.
4. Use an optional SB-90 9-9 pin connector to connect the PV Unit cable
to the other unit’s cable.

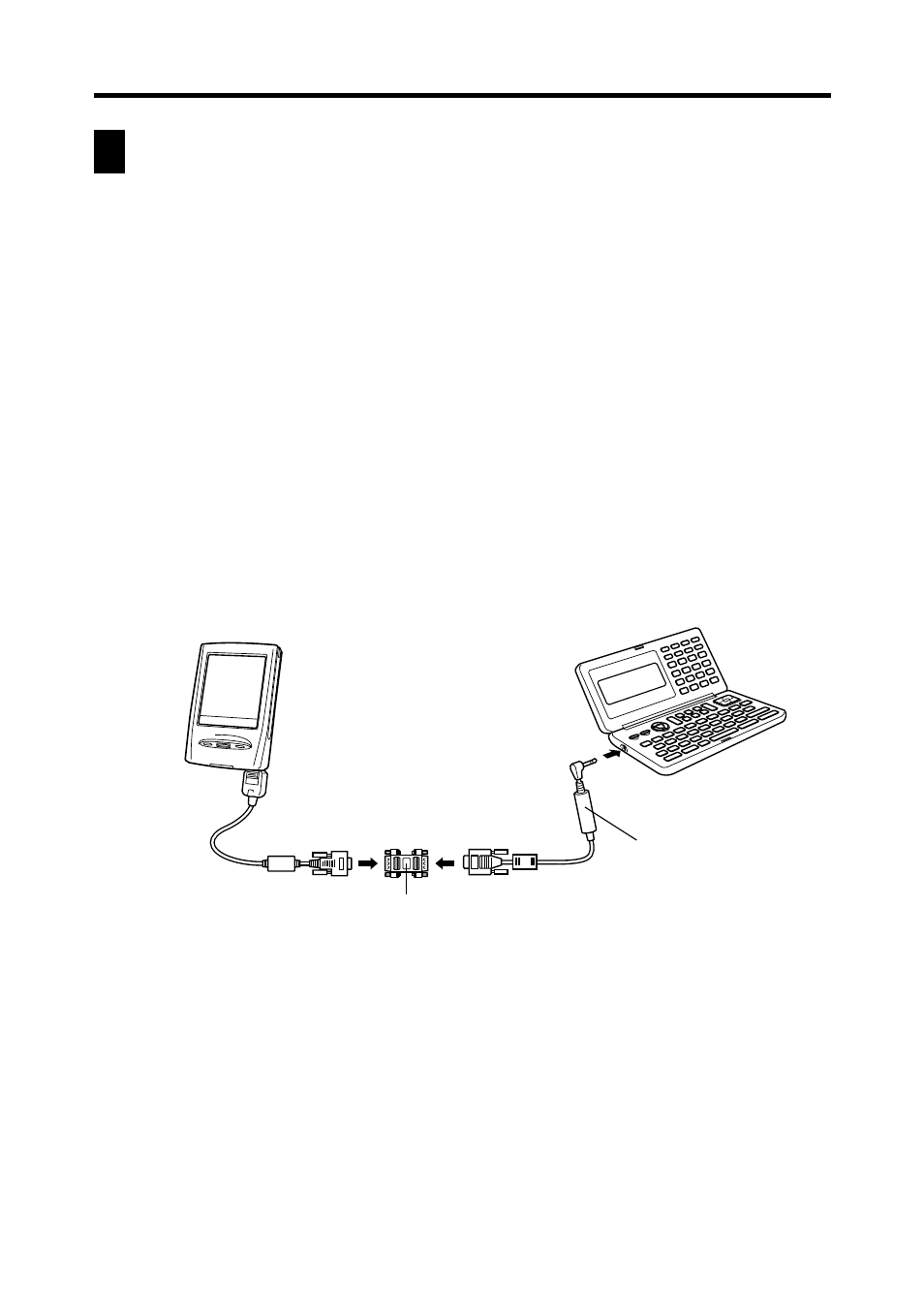

SB-90 3-9 pin cable
SB-90 9-9 pin connector
PV Unit SF/CSF/NX Series Unit
