1-8 Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide
,QVWDOOLQJWKH%ULGJHLQWKH5DFN
To install the bridge in the rack, perform the following steps:
1. At the front of the rack, carefully align the bridge’s inner-slide rails with the outer
slides on the rack.
Slide the inner-slide rails into the outer slides and push the bridge all the way into
the rack, as shown in Figure 1-5. The safety-release latch on the outside of each
inner-slide rail must be pressed for the bridge to slide all the way in.

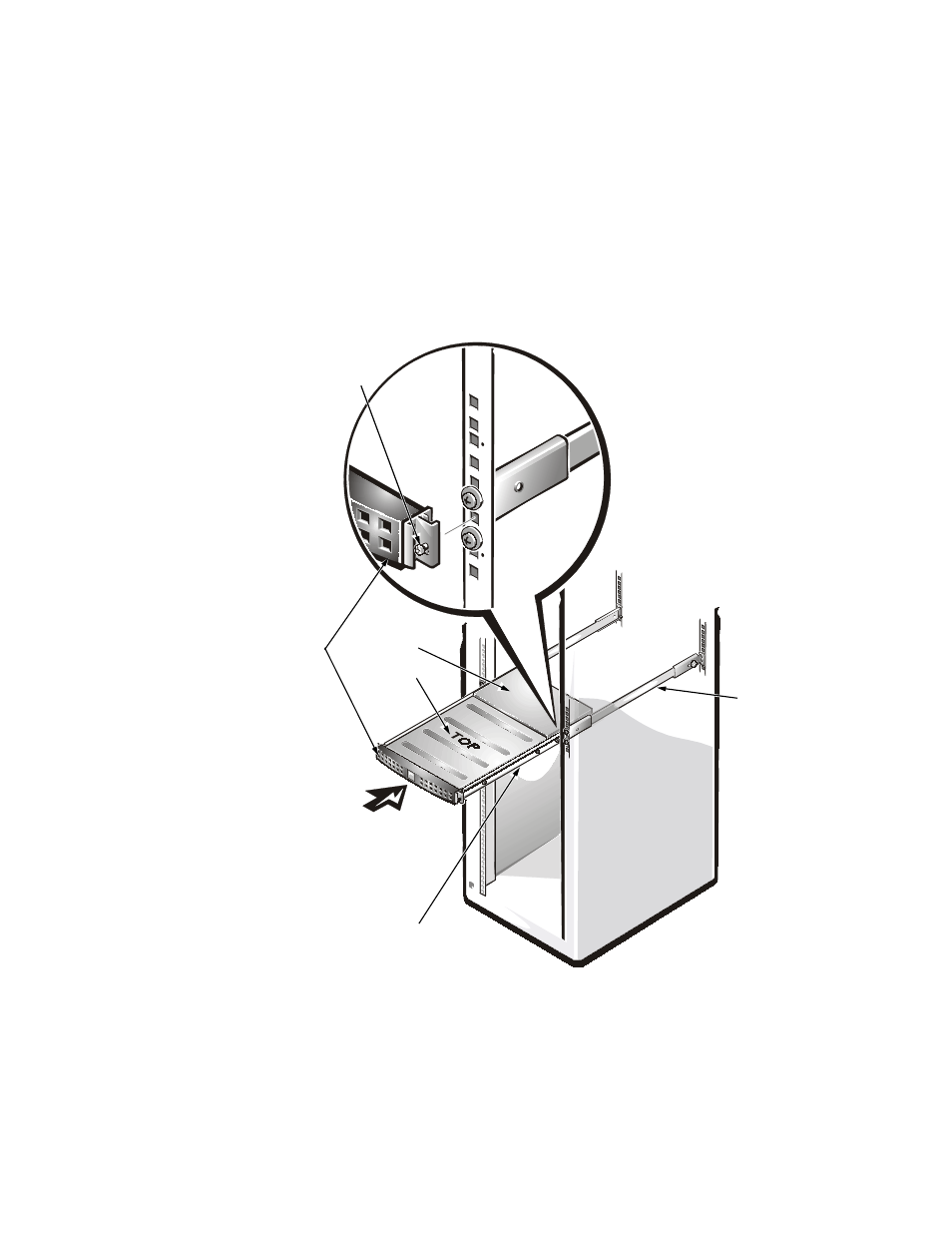

)LJXUH,QVWDOOLQJWKH%ULGJHLQWKH5DFN
inner-slide
rail
outer slide
bezel
bridge
manifold
thumbscrew
