Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide 1-7

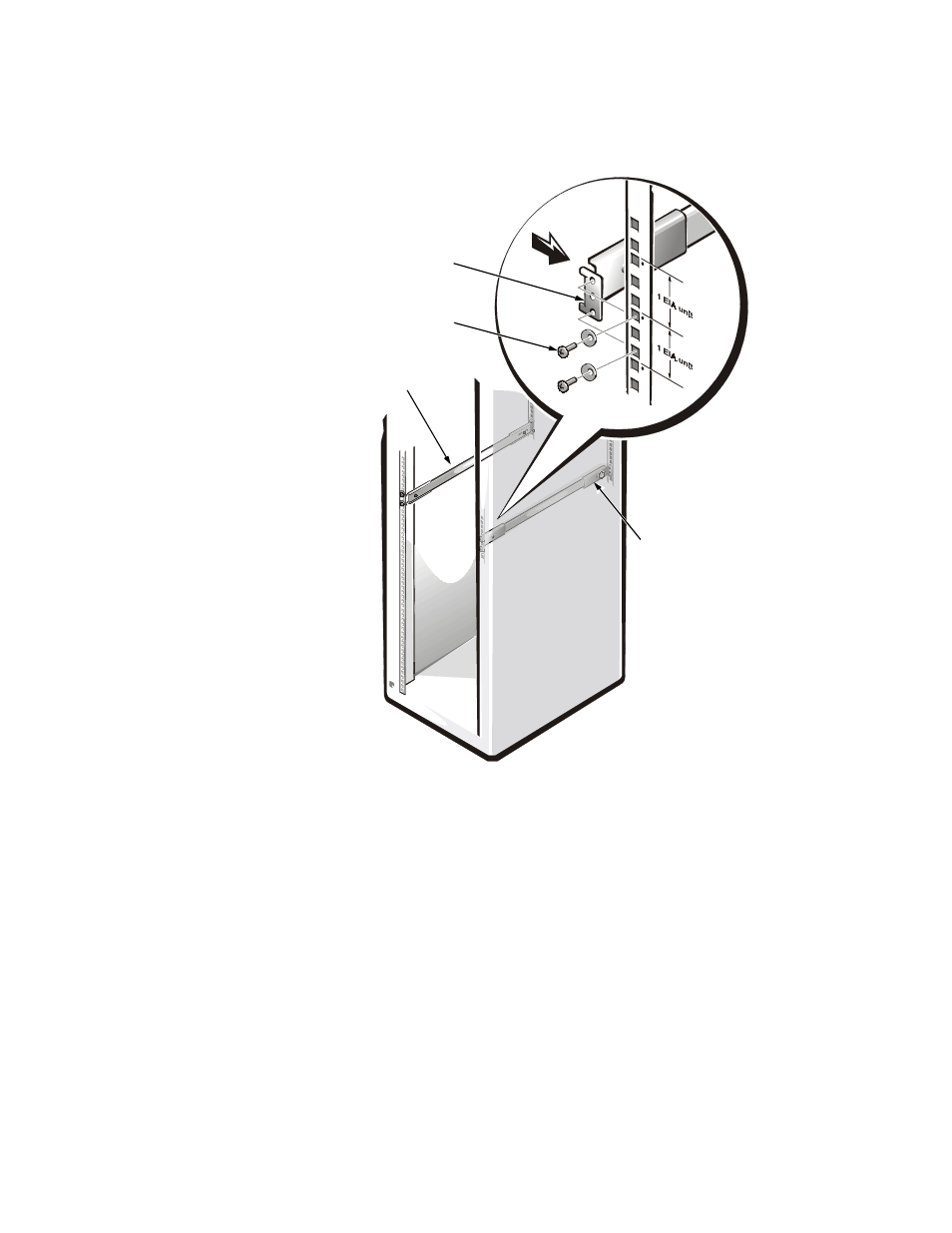

)LJXUH0RXQWLQJWKH2XWHU6OLGHVRQWKH5DFN
2. Use four 10-32 x 1/2-inch screws and four tapered washers to mount each outer
slide in the rack, as shown in Figure 1-4.
The screws are threaded through the washers, the rack, and into the top and
bottom holes of the brackets, leaving the middle bracket holes open.
3. Fully tighten the screws and then back them out about two turns.
Leaving the outer slides loose makes it easier to align the outer slides and the
inner-slide rails.
stationary
bracket
10-32 x 1/2-inch
screws (8)
outer slide
adjustable
bracket
