Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide

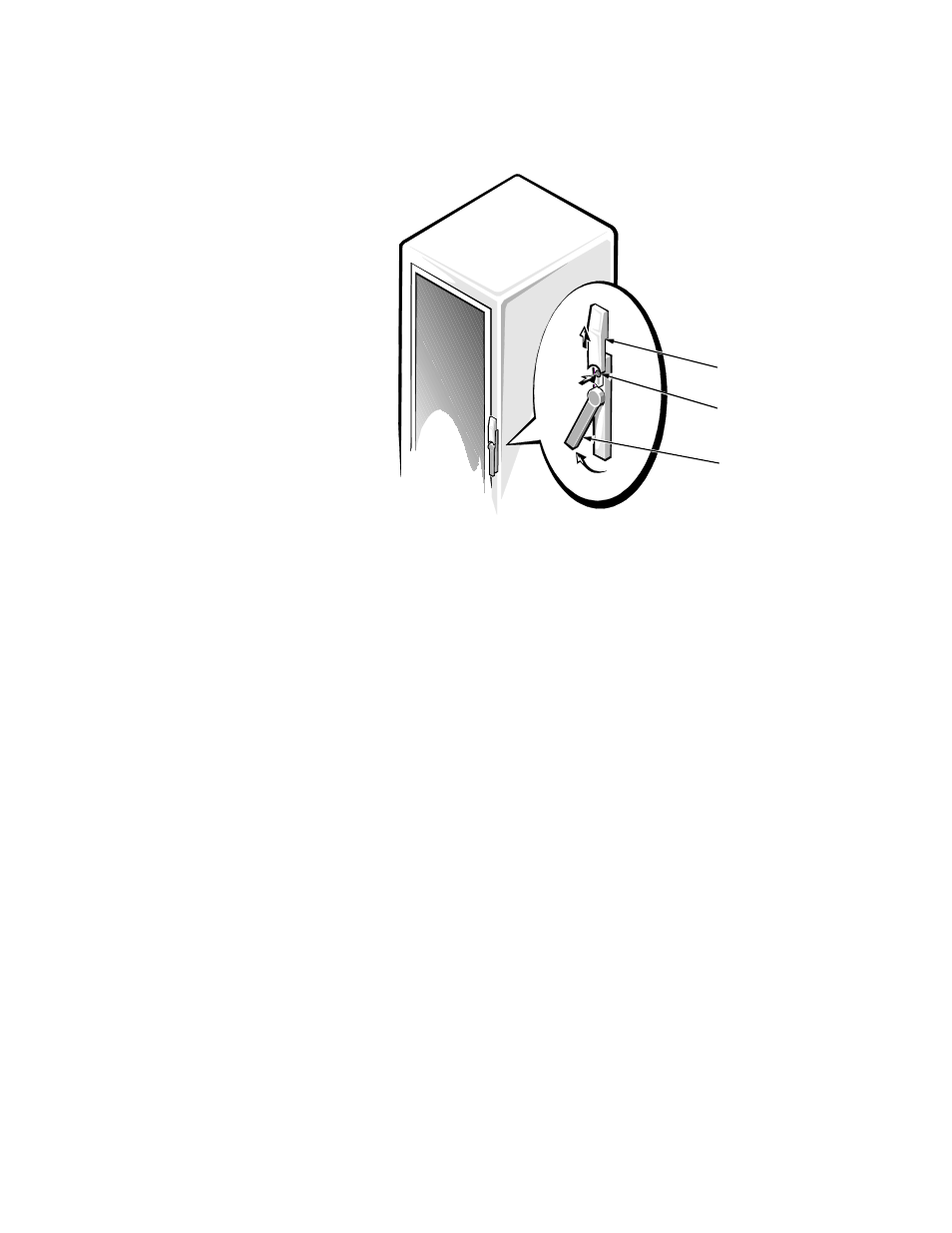

)LJXUH2SHQLQJWKH/DWFKRQWKH'RRU

2.

Remove the front door as shown in Figure 1-2:

a.

One person should grasp the top of the door to stabilize it. The other person
should grasp the bottom of the door.

b.

The person holding the bottom of the door should press the hinge release
lever on the bottom hinge and then pull the bottom of the door away from
the rack a few inches.

c.

The person holding the top of the door should press the hinge release lever
on the top hinge and then pull the door away from the rack.

push button

push-button
cover

handle
