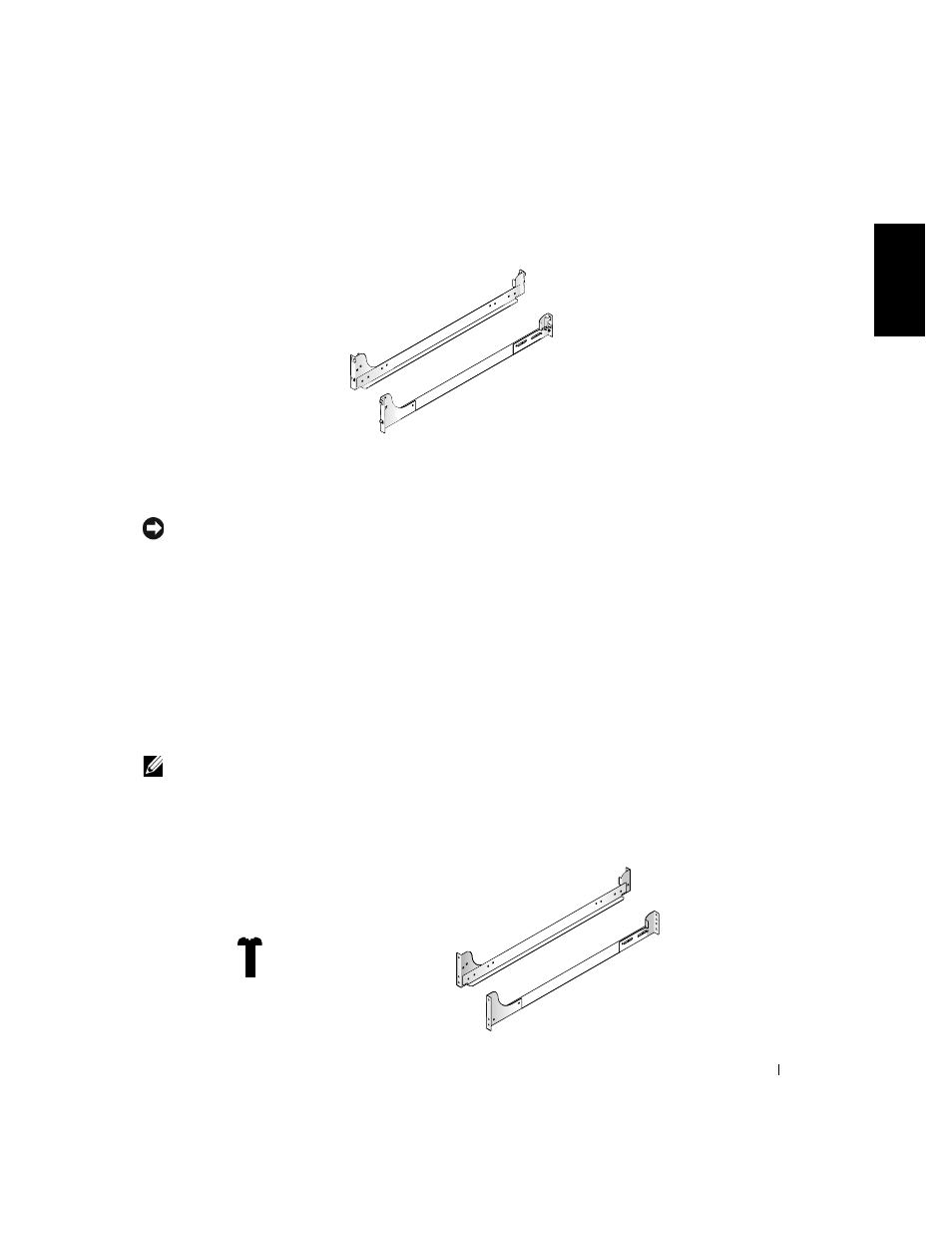

F i g u r e 1 - 1 .
R a p i d R a i l s R a c k K i t C o n t e n t s
Dell Rack Requirements
NOTICE: This rack kit is intended to be installed in a Dell rack by trained service technicians.
If you install the kit in any other rack, be sure that the rack meets the specifications of American
National Standards Institute (ANSI)/Electronic Industries Association (EIA) standard
ANSI/EIA-310-D-92, International Electrotechnical Commission (IEC) 297, and Deutsche
Industrie Norm (DIN) 41494. One rack kit is required for each system that is installed in a rack.
VersaRails Rack Kit Contents
The VersaRails rack kit includes the following items (see Figure 1-2):
• One pair of VersaRails mounting rails
• Eight 10-32 x 0.5-inch Phillips screws
NOTE: The nonmetric screws described in illustrations and in procedural steps are identified by
size and number of threads-per-inch. For example, a #10 Phillips-head screw with 32 threads
per inch is identified as a 10-32 screw.
F i g u r e 1 - 2 .
Ve r s a R a i l s Ra c k K i t C o n t e n t s
RapidRails mounting rails
10-32 x 0.5-inch
pan-head Phillips
screws (8)
VersaRails mounting rails
