1-2 I n s t a l l i n g a R O M B C a r d
www
.dell.com | support.dell.com
6 Locate the ROMB card connector on the system board. See Figure 1-2.
7 If a PCI card is installed over the ROMB card connector, remove it. See your
Installation and Troubleshooting Guide for instructions.
8 Position the ROMB card with the notch in its plastic cover facing the redundant power
supply bay, and align the edges of the card with the four plastic standoffs on the
system board. See Figure 1-2.
9 Press down on the ROMB card cover until the four plastic standoffs snap over the edge
of the card. See Figure 1-2.

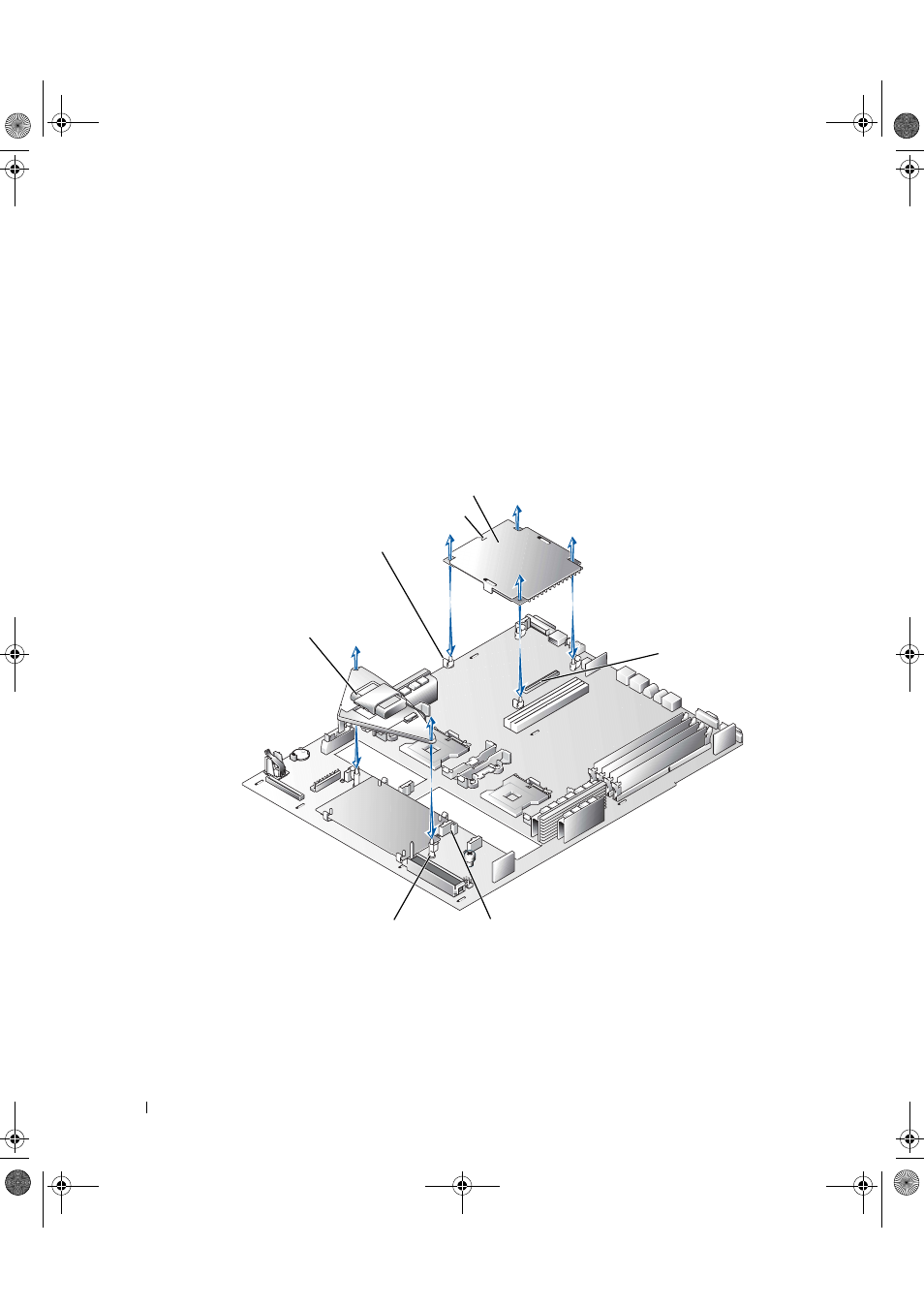

F i g u r e 1 - 2 . I n s t a l l i n g t h e R O M B C a r d a n d B a c k u p B a t t e r y
ROMB card
plastic standoffs (4)
notch
backup battery
RAID_BAT connector standoffs (2)
ROMB card connector
