4
30" DUAL FUEL SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
(Models with an Electric Oven and a Gas Cooktop)
NOTE:
1. Do not pinch the power supply cord or
the flexible gas conduit between the
range and the wall.
2. Do not seal the range to the side
cabinets.
3. 24" (61 cm) minimum clearance
between the cooktop and the bottom of
the cabinet when the bottom of wood
or metal cabinet is protected by not
less than ¼" (0,64 cm) flame retardant
millboard covered with not less than
No. 28 MSG sheet metal, 0,015" (0,4
mm) stainless steel, 0.024" (0,6 mm)
aluminum, or 0,020" (0,5 mm) copper.
30" (76,2 cm) minimum clearance when
the cabinet is unprotected.
4. For cutouts below 22 7/8" (58,1 cm),
appliance will slightly show out of the
cabinet.
5. Allow at least 19 ¼" (48,9 cm) clearance
for door depth when it is open.
21¾”
(55.25 cm) D
C
A
B
Door
Open
Side Panel
1 1/8"
(2,86 cm)
FRONT OF
CABINET
F
Ref.
22 7/8" (58,1 cm) min.
23 1/4" (59,05 cm) max.
(see Note 4)
* IMPORTANT: To avoid cooktop breakage for cutout width (E dimension) of more
than 30 1/16" (76,4 cm), make sure the appliance is centered in the counter opening
while pushing into it. Raise leveling legs at a higher position than the cabinet height
(see page 3), insert the appliance in the counter and then level. Make sure the unit
is supported by the leveling legs and NOT by the cooktop itself.
IMPORTANT: Cabinet and countertop
width should match the cutout width.
E
E
A. HEIGHT
(Under Cooktop)
B. WIDTH C.
COOKTOP
WIDTH
D. TOTAL
DEPTH TO
FRONT OF
RANGE
E. CUTOUT
WIDTH*
(Countertop
and cabinet)
F. CUTOUT
DEPTH
G. HEIGHT
OF COUNTERTOP
35 7/8" (91,1 cm)
36 5/8" (93 cm)
30"
(76,2 cm)
31 1/2"
(80 cm)
28 5/16"
(71,9 cm)
30±1/16"
(76,2±0,15 cm)
21 3/4" (55,2 cm) Min.
22 1/8" (56,2 cm) Max
24" (61 cm) Min. with
backguard
35 7/8" (91,1 cm) Min.
36 5/8" (93 cm) Max.

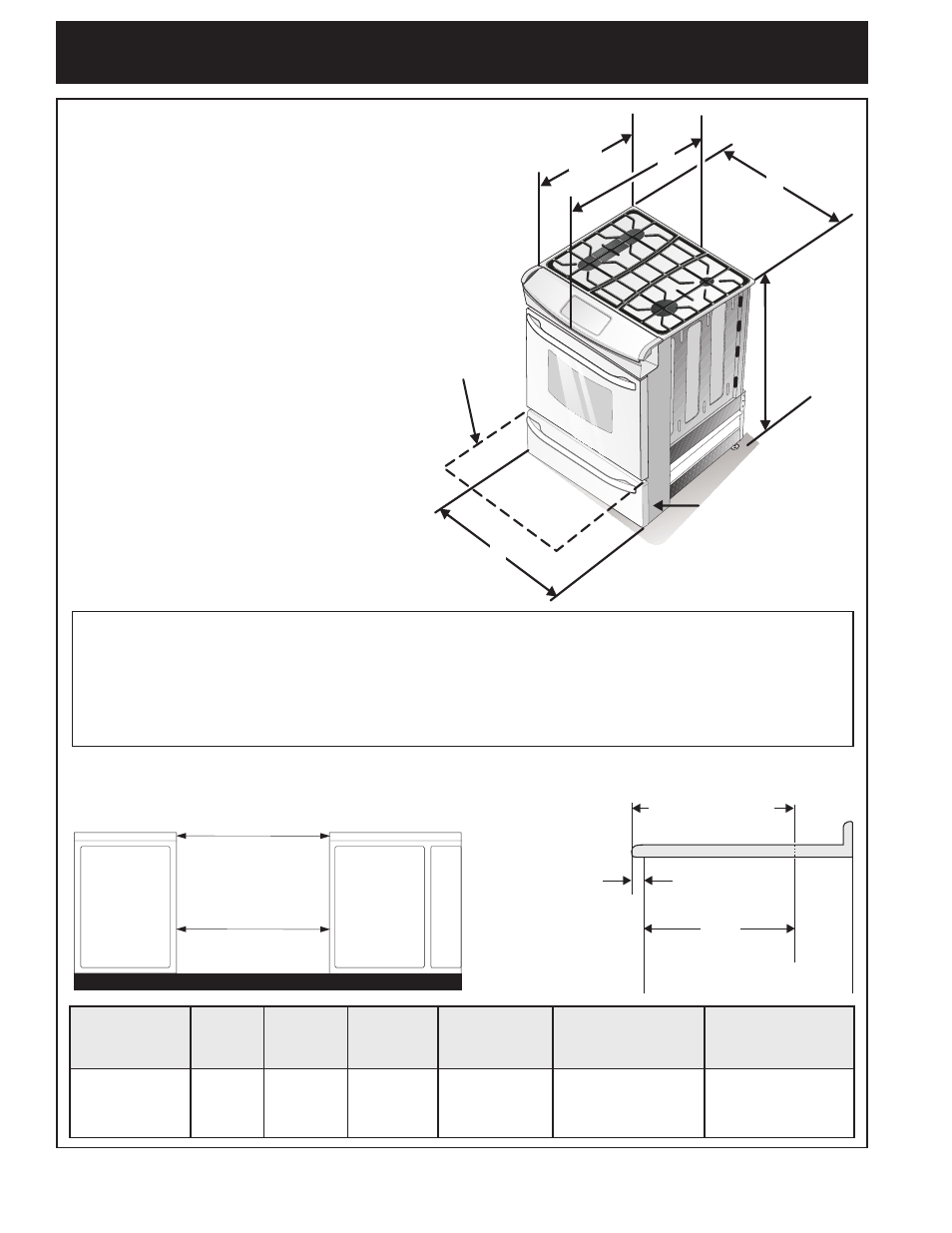

Product dimensions
