1. POWER lamp (Green)
Illuminated if the power is turned on.
2. ERROR lamp (Red), PAPER lamp (Red)
Indicates an error by illuminating or blinking the lamps.

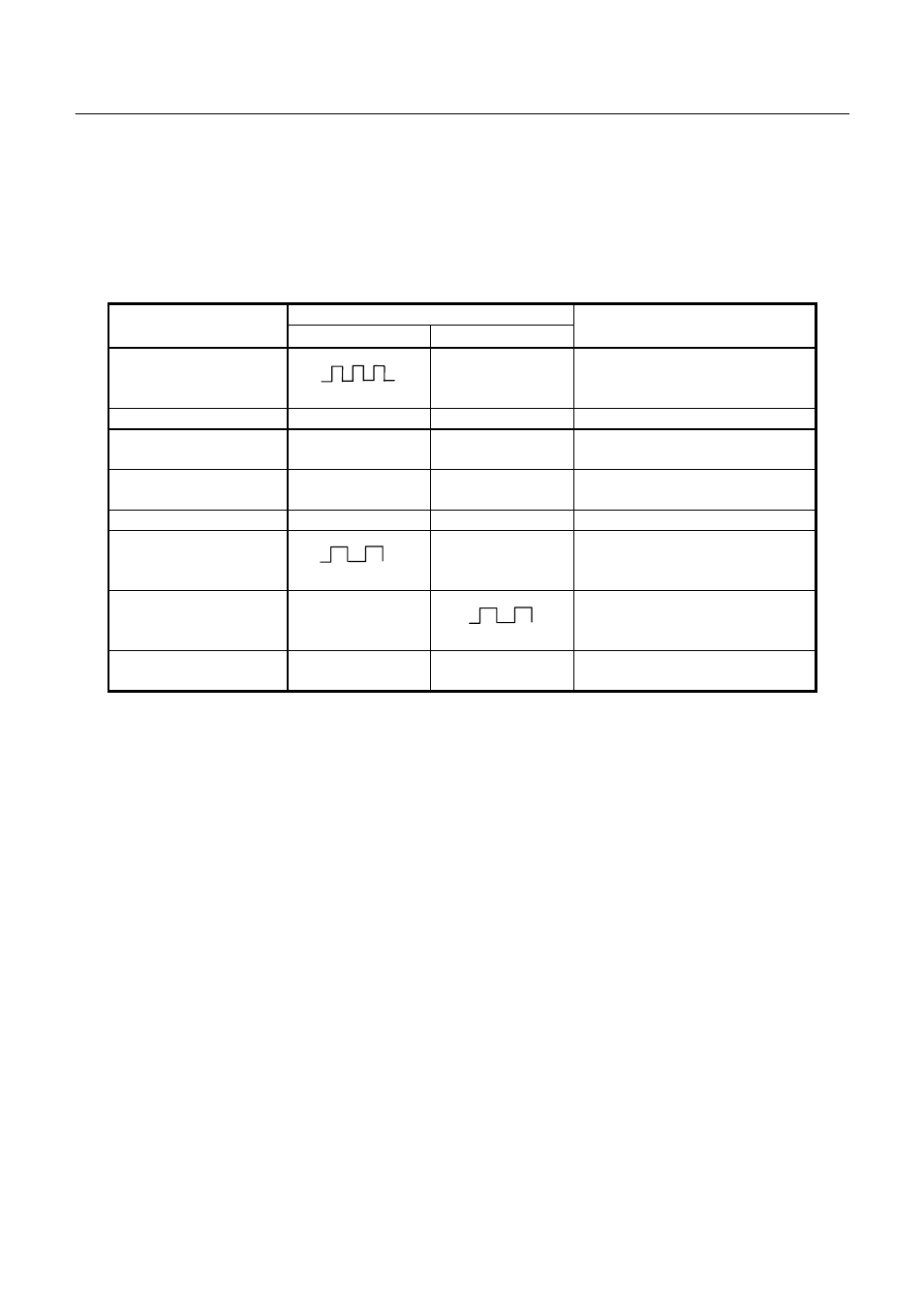

Display
Error
ERROR Lamp
PAPER Lamp
Reset
Memory check error
Quick blinking
OFF
Cannot be reset
Head-up
ON
OFF
Lower the head-up lever.
Head overheat
ON
OFF
Automatically reset by a
temperature drop
Paper near end
OFF
ON
Set a new paper roll after a
print stop.
Paper end
OFF
ON
Set a new paper roll.
Macro execution wait
Slow blinking
OFF
Press the FEED switch.
Label paper cut wait
OFF
Slow blinking
Press the FEED switch.
Label paper error
ON
ON
Set the label paper suitable
for the specifications.
<<< E E Errrrrrrroooor r r r D D D Deeeettttaaaaililililssss>>>> Head-up ----- Occurs when the head-up lever is raised. The printer cannot feed the paper or print. The parallel interface outputs BUSY and FAULT, and Head overheat ----- If the temperature of the printing head rises (About 60°C or more), in order to protect it against overheating, a printing head temperature Paper near end ----- If the diameter of the paper roll decreases, the paper near end sensor will react to inform you that the paper roll is running out. See "4.8 Paper Paper end ----- If the paper roll runs out, the paper sensor near the printing head will react to stop printing. See "4.7 Paper End Function". Label paper error ----- Occurs if you set the thermal paper or non-specified label paper, when the label paper has been selected. The parallel interface outputs BUSY and 3. FEED switch See "4.6 FEED Switch Function."
serial interface DTR, respectively.
sensor will be activated to stop printing. The parallel interface outputs
BUSY and FAULT, and serial interface DTR, respectively. If the
temperature drops (About 55°C), printing will be automatically resumed.
Near End Function".
FAULT, and serial interface DTR, respectively.
