Hudson Robotics PlateCrane EX User Manual
Page 11

PlateCrane EX User Manual
Hudson Robotics, Inc.
7

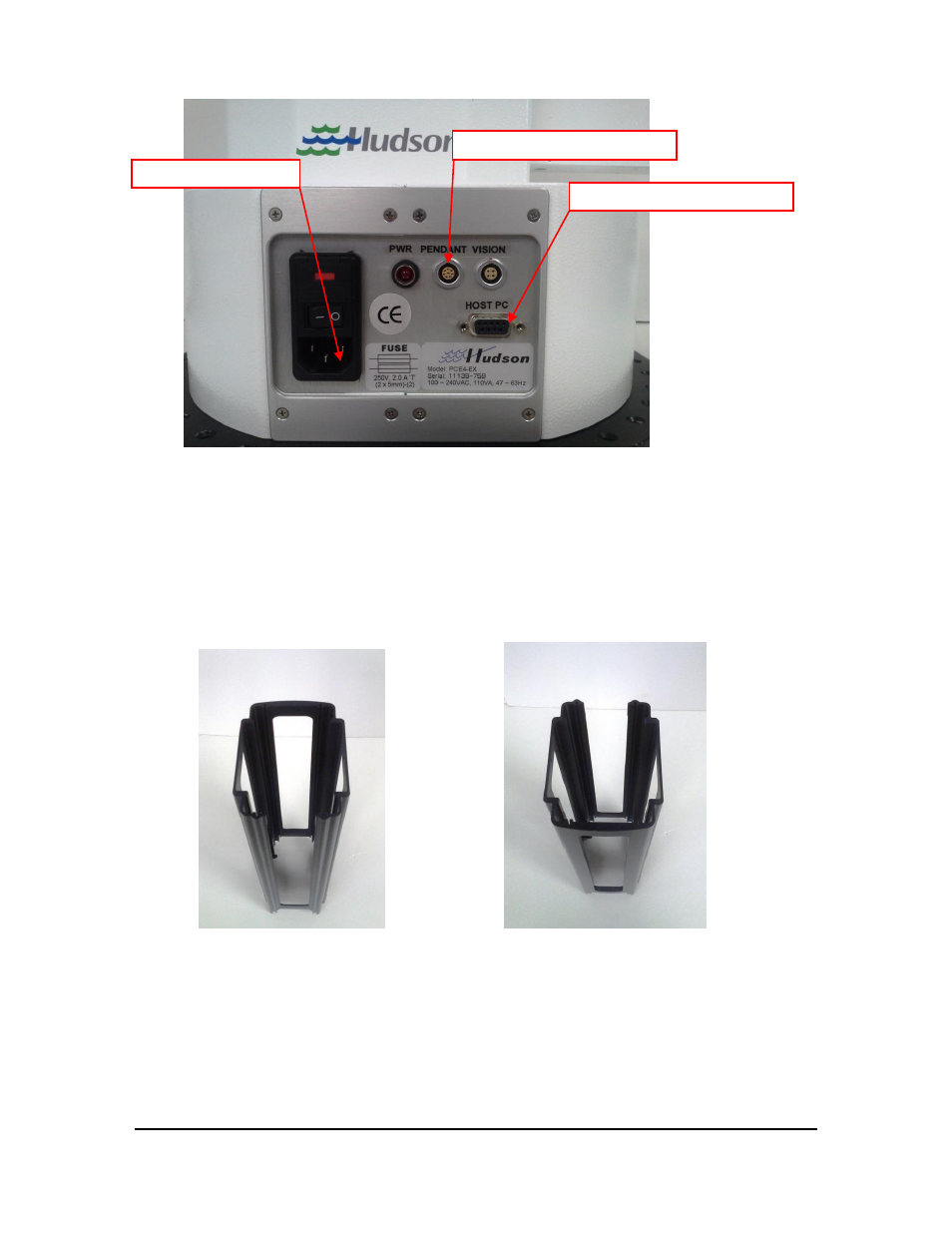

Figure 7
The Stacks can only be installed in one direction. The open side of the stack (Figure 8)
needs to be facing the PlateCrane EX and the closed end must face the user (Figure 9). In
Figure 10 you can see which way the stacks should be seated on the PlateCrane’s
magazine base: with the “open” side facing inward, toward the PlateCrane.
Figure 8
Figure 9
Power Cord Location
Communication Cable location
Optional- Teach Pendant Cable
