Page 19: Upper operation panel
Parts Identifications
19
Ov
e
rv
ie
w
3.
AUDIO IN (audio input selection)
switches (page 69)

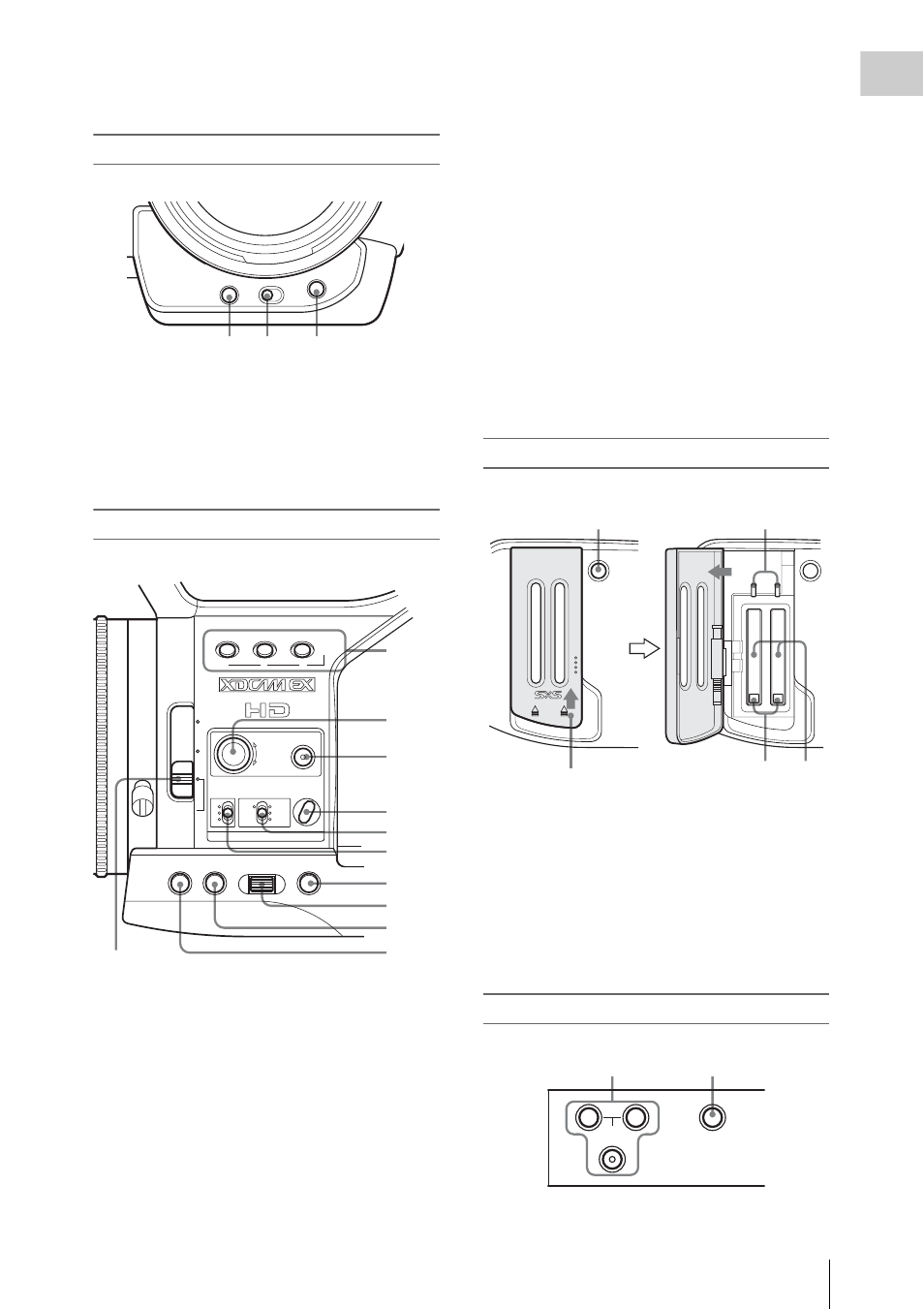

Front lower operation block
1.
ASSIGN 4 (assignable 4) button (page 73)
2.
SHUTTER switch (page 57)
3.
WHT BAL (automatic white balance
adjustment) button (page 52)
Side operation panel
1.
ASSIGN (assignable)1/2/3 buttons (page
73)
2.
S&Q (Slow & Quick) Motion dial (page
77)
3.
FULL AUTO button and indicator (page
49)
4.
BARS/CAM (color bar/camera signal
switching) button (page 71)
5.
WHITE BAL (white balance memory)
switch (page 52)
6.
GAIN switch (page 56)
7.
CANCEL button (page 112)
8.
SEL/SET (selection/set) dial (Jog dial)
(page 112)
It functions accordingly when you turn it up
or down, or you push it horizontally.
It is called “the jog dial” in the subsequent
operating instructions.
9.
MENU (menu display ON/OFF) button
(page 112)
10.
11.
ND filter select switch (page 51)
Card slot block
1.
SLOT SELECT (SxS memory card select)
button (page 43)
2.
ACCESS lamps (page 42)
3.
EJECT buttons (page 43)
4.
SxS memory card slots (page 42)
Upper operation panel
ASSIGN 4
SHUTTER
OFF
ON
WHT BAL
1
2
3
1
2
3
LENS INFO BRT DISP
HISTOGRAM
ASSIGN
OFF
2
1
ND
FILTER
-
+
FRAME
GAIN
STATUS MENU
SEL/SET
CANCEL
B
A
PRST
L
ATW
M
H
WHITE BAL BARS/CAM
FULL AUTO
6
7
8
9
10
11
1
2
3
4
5
SLOT SELECT
A
B
OPEN
ACCESS
1
2
3
4
Slide the cover upward
to unlock.
TC/U-BIT/DURATION
A
SHOT
TRANSITION
B
1
2
