External Synchronization 137
Conn
ec
ti
ng Ex
te
rn
al De
v
ic
e
s
Thus the built-in timecode generator of your
camcorder locks to the reference timecode.
The message “EXT-LK” is displayed on the
screen.
After about 10 seconds, you can disconnect the
external timecode without losing the
synchronization.
Notes
• Check that the reference timecode and the
reference video signal are in a phase relation
that complies the SMPTE timecode standards.
• When you finish the above procedure, the
timecode is immediately synchronized with the
external timecode, and the time data indication
will show the value of the external timecode.
However, wait for a few seconds until the
timecode generator stabilizes before recording.
• If the frequency of the reference video signal is
not the same as the frame frequency of the
camcorder, the camcorder cannot be correctly
genlocked. In such a case, the timecode is not
correctly synchronized with the external
timecode.
• When the connection is removed, the timecode
advance may shift one frame per hour with
respect to the reference timecode.
To release the external timecode
synchronization
Change the “Timecode” setting of the TC/UB
SET menu or turn off the camcorder.
External synchronization is also released when
you start recording in a special recording mode
(Slow & Quick Motion, Frame Rec, or Interval
Rec).
Synchronizing the timecode of another
unit with that of your camcorder
The timecode of another unit can be locked to that
of your camcorder.
1
Specify the timecode of your camcorder
with “Timecode” and “TC Format” (see
page 67).
2

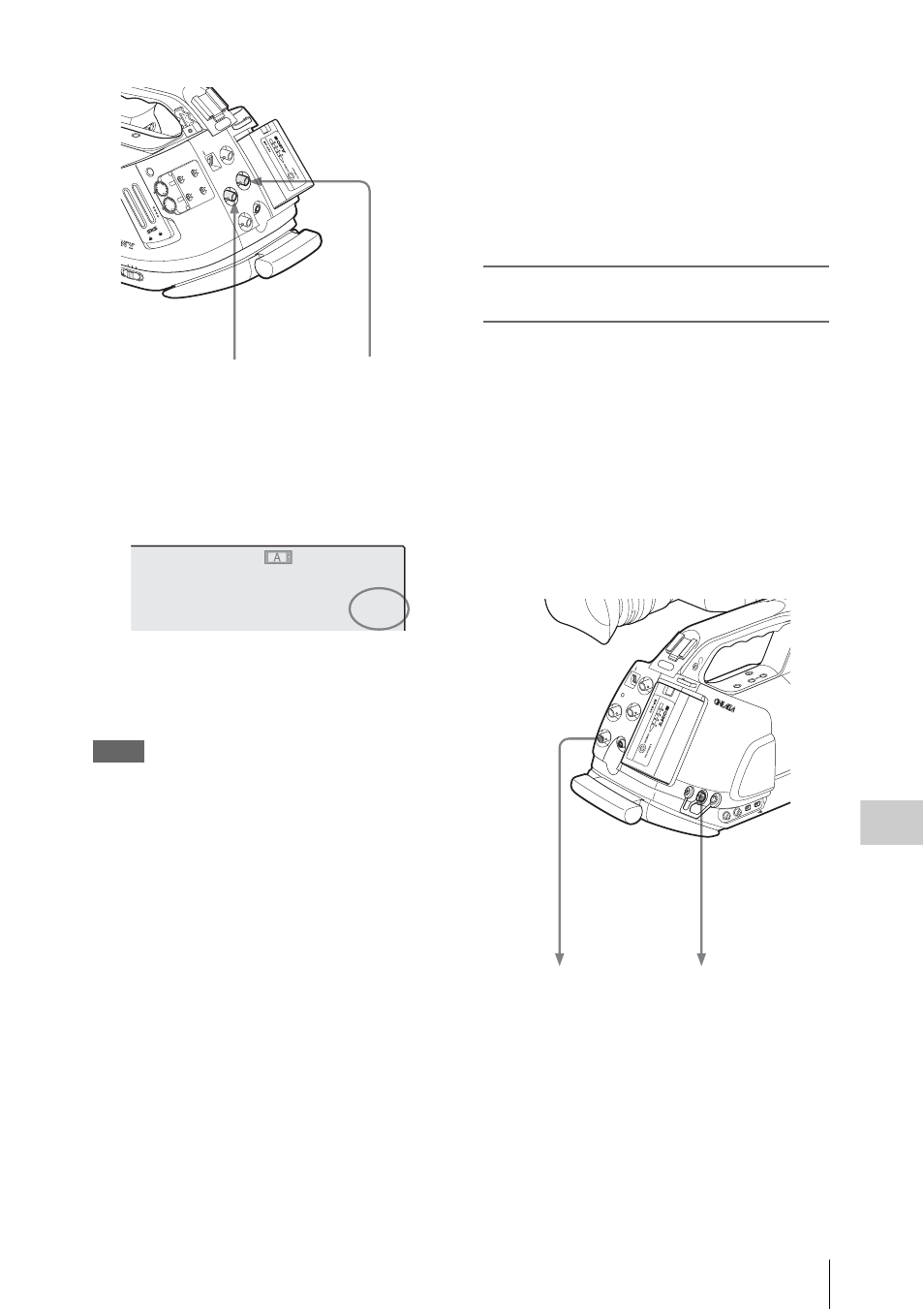

Connect the TC OUT connector and
MONITOR OUT connector with the
timecode input and reference signal
input of the other unit, respectively.
SDI OUT
GENLOCK IN
REMO
TE
TC OUT
TC IN
HDV
AMER A OFF MEDIA
PMW
-EX3
CH- 1
AUT O
MAN UAL
IN EXT
AUT O
MAN UAL
IN EXT
CH- 2
AUD IO
LEV EL
SLO T S ELE CT
AUD IO
SEL ECT
AUD IO
IN A
B
OP EN
ACC ESS
TC/U -BIT/D URAT ION
GENLOCK IN
TC IN
75-ohm coaxial
cables (optional)
Reference
timecode Reference
video signal
TCG 00:00:00:00
HQ 1080/24P
EXT-LK
TBY S&Q STBY
SDI O UT
GENLO
CK IN
REMO TE
TC O UT
TC IN
HDV
COM PON ENT
OUT
DC IN MONITOR
OUT S VIDEO
AUD IO O UT CH- 1
CH- 2
H L OFF
SH OT
TR AN SIT IO N
B
A
TC /U -B IT/ DU RAT IO N
MONITOR
OUT
TC OUT
To the timecode
input of the other
unit To the reference video
input of the other unit
75-ohm coaxial
cables (optional)
