7.0 ANALOG OUTPUT
7.1 Connecting Power
You will need to connect a power supply to the device for it to operate and to enable
configuration using a base station and the appropriate toolkit software. Power is supplied via the
screw terminals and can be in the range of 9 to 36V DC.

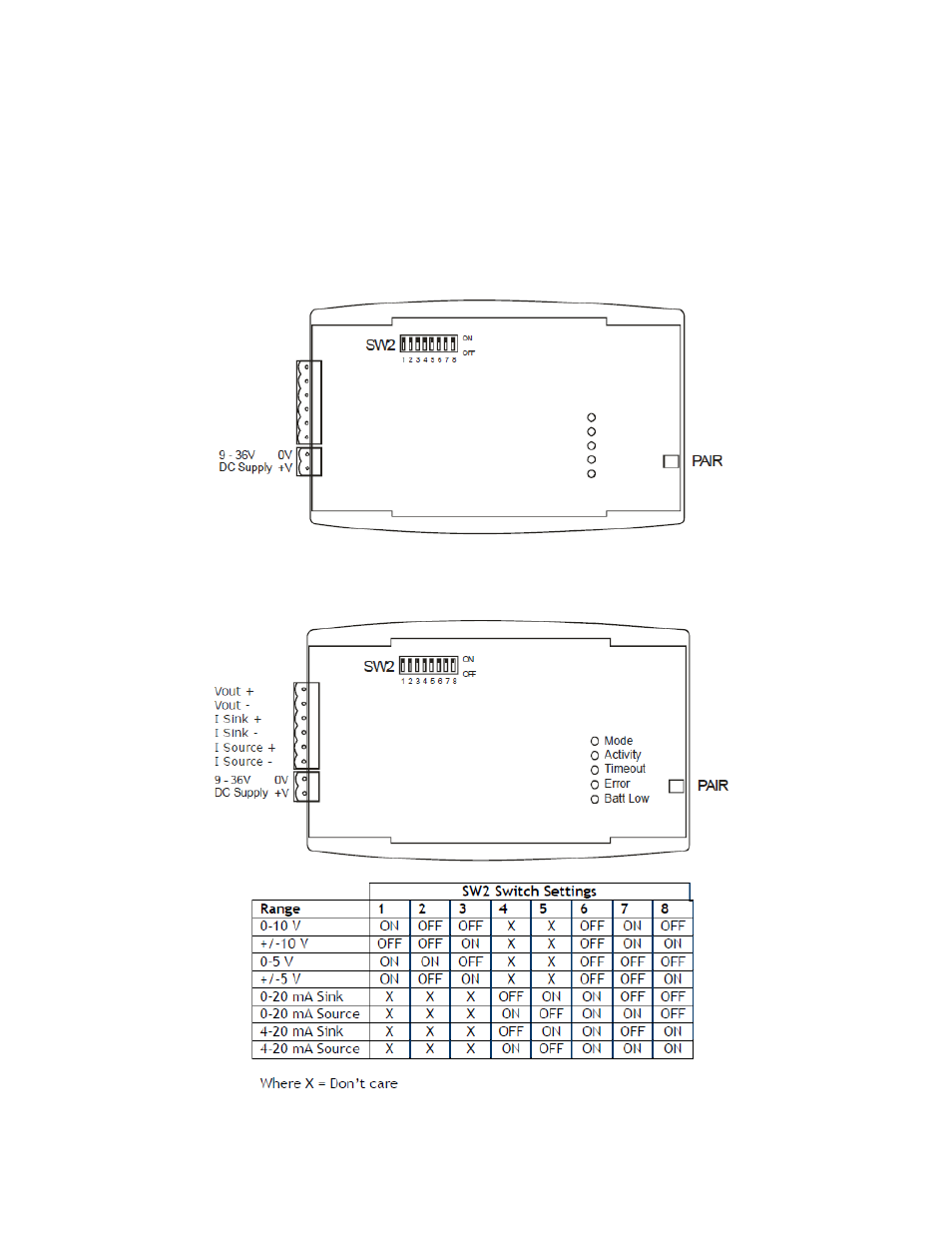

7.2 I/O Connection and DIP Switch Settings
