Cooper Instruments & Systems MasterLink 3000 Wireless Load Cell Amplifier - Manual (Page 15)

CF 187 13 RevA

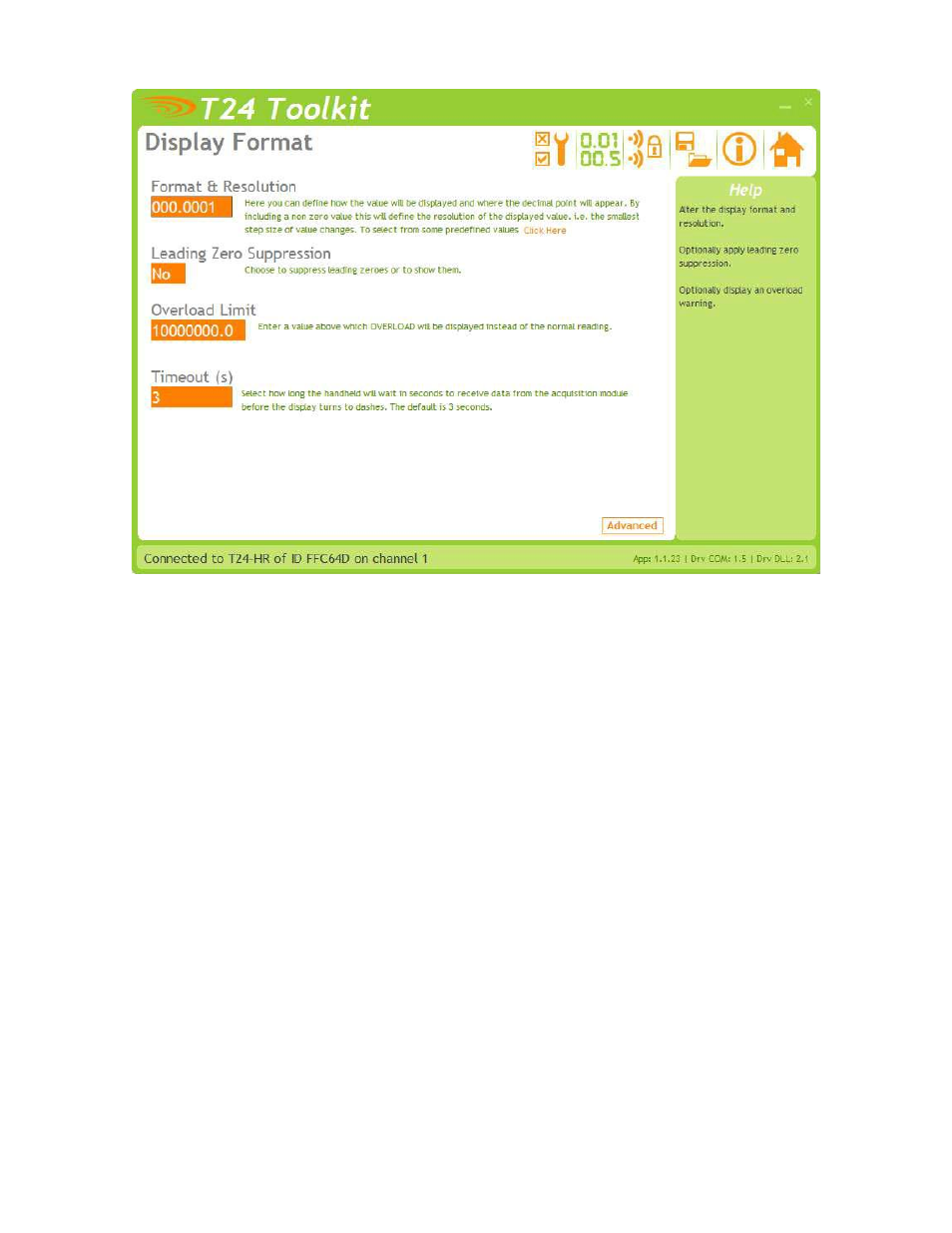

Items you can change:
Format & Resolution
Here you can define how the values are displayed on
the LCD. There are 7 digits available and you can
define where the decimal point is shown by entering
text where a zero indicates a numeric digit position.
When the data is being displayed the number of
decimal places you define may be overridden as the
display will always show the correct number of integer
digits. Example: If you set the format to 000.0000 and
the value to display is 1000.1234 the display will show
1000.123
You can also define the resolution, which is the block
size of changes to the display.
Example: If you enter the format as 000.0005 the
display will only change in steps of .0005 which can be
used to mask noisy digits at high resolutions.
Leading Zero
This can be turned on or off and will suppress leading
Suppression zeroes when on.
Example: If the display reads 000.123 with leading zero
suppression turned off it will display 0.123 when turned
on.
