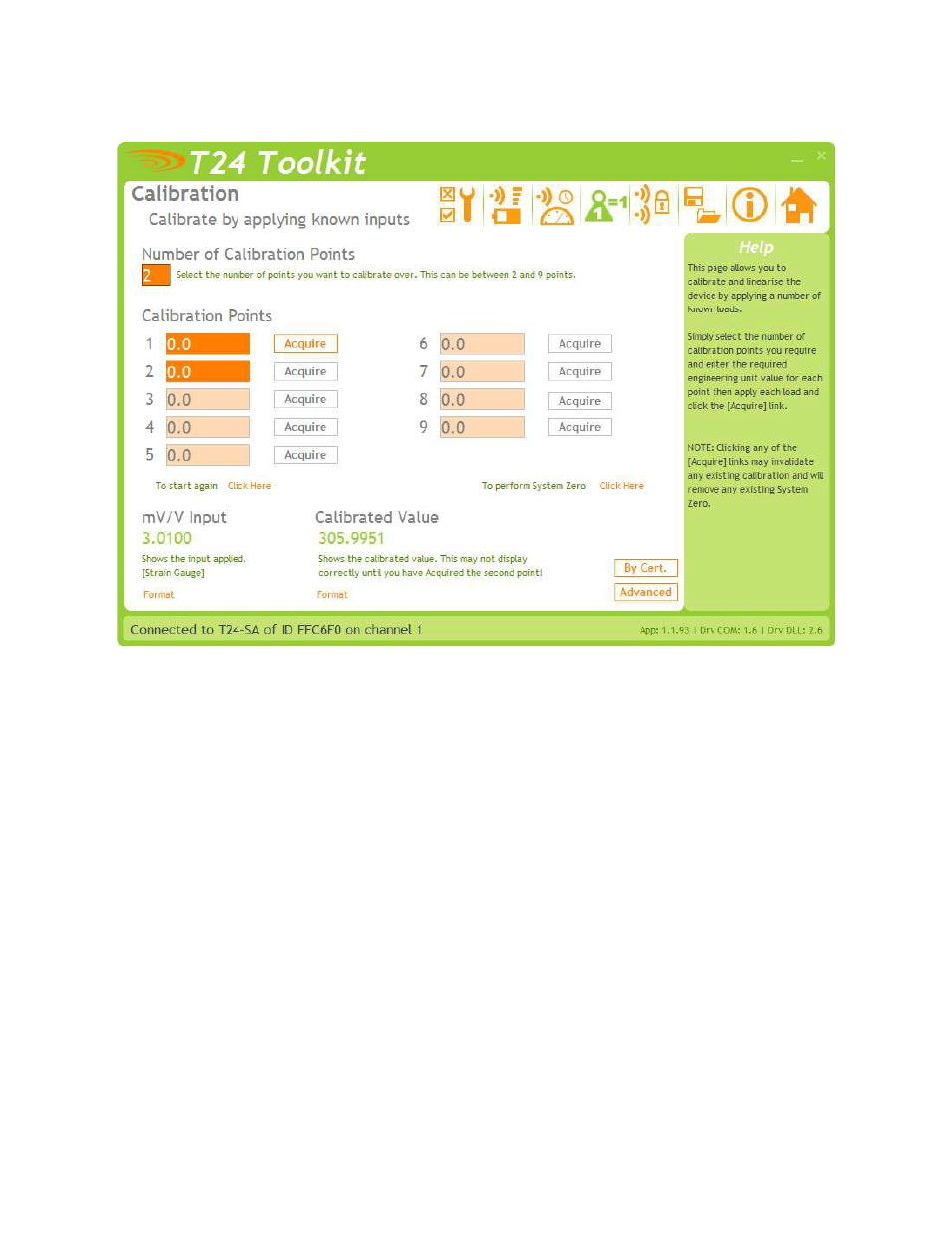

5.2 Utilizing the Toolkit Software Calibration of device with applied loading

Here you can calibrate the acquisition module and set a system zero if required. This simple
page allows semi-automated calibration where you can apply known inputs to calibrate.
This calibration includes linearization and is automatically applied

Calibration Process



Decide on how many points you will calibrate over.



Decide what inputs will be applied (in ascending order) at each point.



Enter the actual input (in the required units) that you want the module to read at each

point.



Now proceed to apply each input in turn (allowing a settle time) and click the Acquire

button at that point. You can now apply the next input and click Acquire until all the
points are completed.

The bottom of the page shows the Input Value and the Calibrated Value. Once the second
point has been acquired this Calibrated Value should display the actual calibrated value.

5.3 Utilizing the Toolkit Software to save/restore the overall and calibration settings to a
configuration file

Here you can save the device settings to a file on your PC so that they can be later loaded back
into the same or different device.
