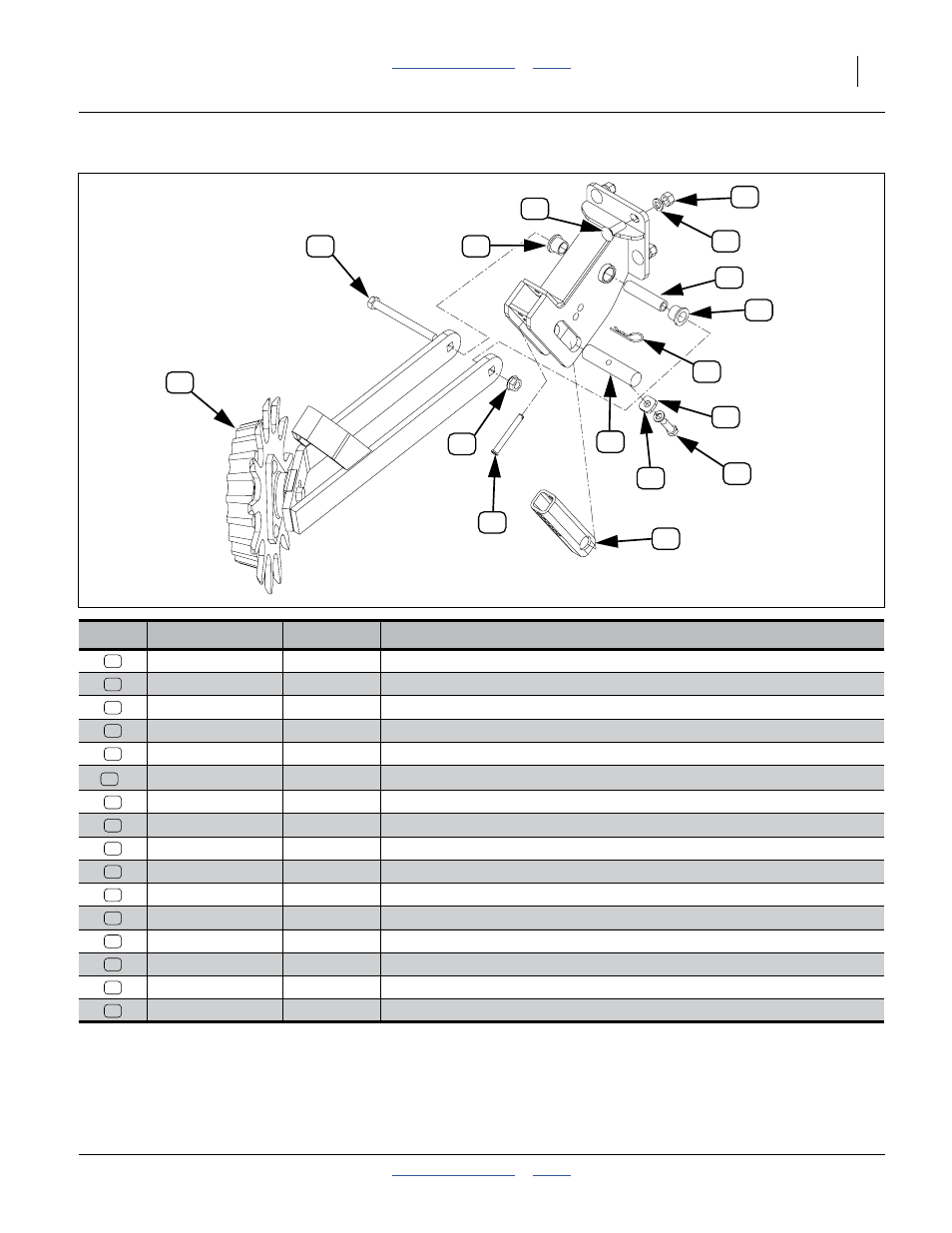

207-216K Single RH UMRC Kit
Callout Part Number Quantity Part Description
207-072D 1 UMRC MOUNT ROUND TUBE
207-106D 1 ROW CLEANER PIVOT PIPE
207-107D 1 UMRC ADJUSTMENT TUBE
207-108D 1 SPACER
207-214H 1 UMRC MOUNT WELD
a
a. This part is a sub-assembly containing additional parts. See following tables.
207-219S 1 RH ROW CLEANER ARM ASM
802-106C 4 RHSNB 1/2-13X1 1/2 GR5
802-046C 1 HHCS 1/2-13X5 1/2 GR5
802-673C 1 HHCS 7/16-14X1 1/4 GR5 PLT
803-020C 4 NUT HEX 1/2-13 PLT
803-169C 1 NUT HEX FLG. LOCK 1/2-13 PLT.
804-014C 1 WASHER LOCK 7/16 PLT
804-015C 4 WASHER LOCK SPRING 1/2 PLT
805-031C 1 PIN HAIR COTTER .092 WIRE
805-385C 1 PIN CLEVIS 3/8 X 3 PLT
817-084C 2 PARALLEL ARM PIVOT BUSHING
27338
207-216K RH ROW CLEANER UNIT
13
25
21
28
18 15
17
20
23
12
26
11
14
22
19
* 24
