UMRC Installation or Update
For Unit-Mount Row Cleaners (no UMC disk coulters).
Refer to Figure 2 (which depicts dual RC mounting;
mounting of the single-wheel RCs is identical)
Unit-Mount Row Cleaners (UMRCs) are used only on
25 Series row units which either have no accessories
forward of the openers (other than a disk shield
).
In the case of plain 25 Series row unit, the UMRC
mounts on the front face
of the row unit shank.
Note: 25 Series row units with unit-mount coulters use
different models of row cleaner (UMC-RC), for
which the assembly instructions begin on page 10.
207-221A Update Kit - Prepare Site
If installing an all new row cleaner, and not updating an
existing row cleaner, begin at step 1 on page 8.
Update Kit: Remove Arms
For safety and convenience, remove the old wheel, then
the old arm, before removing the old mount. Some parts
are re-used.
Refer to Figure 3
A. Remove and save one or both wheels:
802-228C HHCS 5/8-11X1 1/2 GR5 NYL
, and
207-143V RIGID ROW CLEANER ASM LH
or
207-142V RIGID ROW CLEANER ASM RH
B. Remove two sets of:
802-331C RHSNB 1/2-13X1 3/4 GR5
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
These parts are not re-used. They are replaced by a
single new bolt and nut.
C. Remove and save the arm, which is one of:
(odd rows)
207-095H SINGLE ARM RC WLD RH
(even rows)
If your left-right arm installation is not standard
(left-most row is a left arm, then alternating
right-to-left), note from which row each arm was
removed.
Note: Wheels are also handed (left or right). Keep left and
right wheels in separate collection areas.

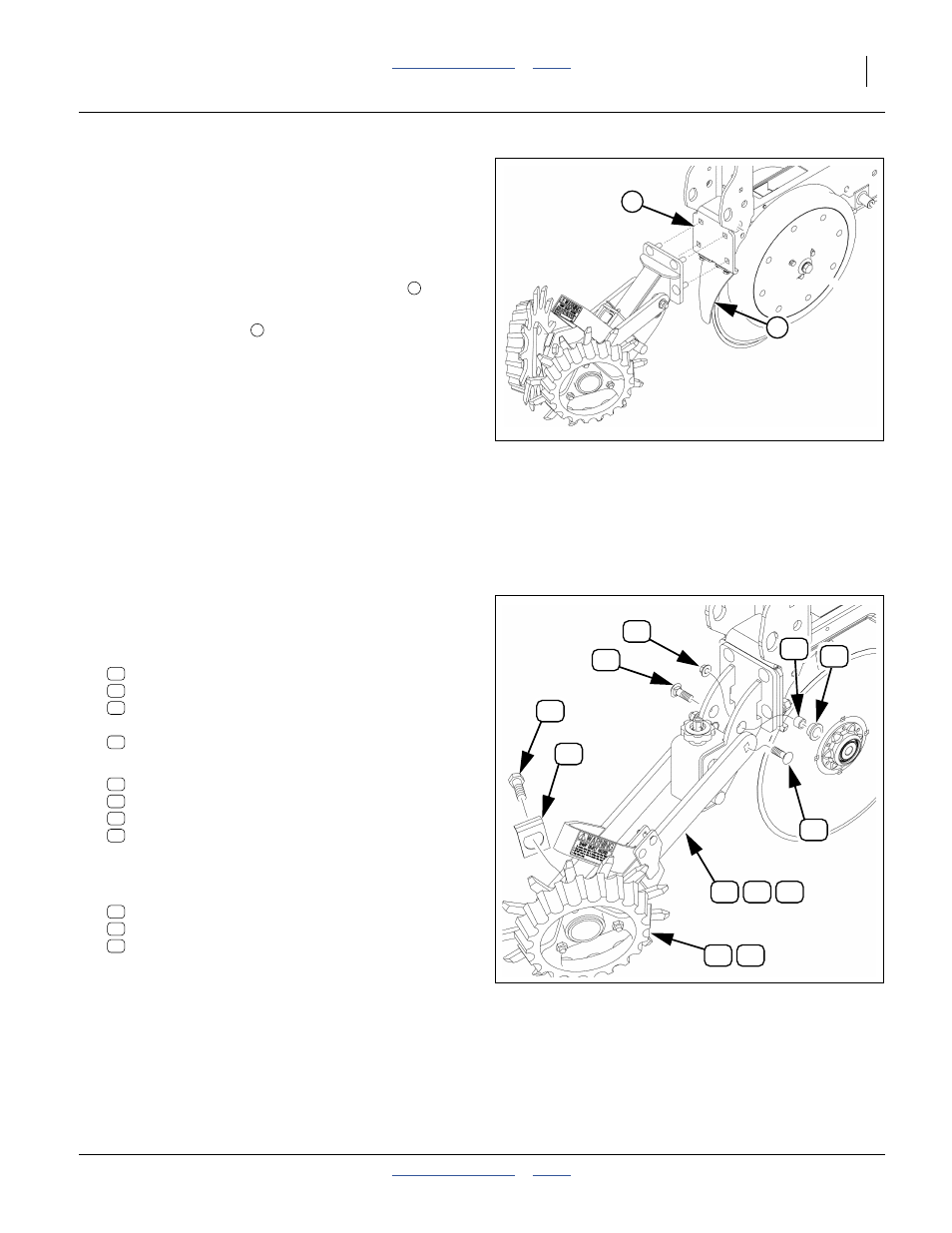

Figure 2:
UMRC Shank Mounting
27310
1
2
1
2
Figure 3:
Remove Old Arm
27348
47
51
30 39 40
31 38
33
36
29
21
33
51
47
31
38
29
33
21
36
30
39
40
