Install Cleaner Wheel Assemblies
Wheel Identification
Refer to Figure 10 (which depicts a Left wheel )
Row cleaner wheels are pre-assembled. Each assembly
is intended for either Left or a Right mounting.
207-142V RIGID ROW CLEANER ASM RH
207-143V RIGID ROW CLEANER ASM LH
If any identifying tags or packaging are separated from a
wheel, you can identify the wheel type by a part number
stamped in spoked wheel face. Left and Right wheels
have part numbers ending in “L” and “R”, respectively.
The first wheel to be mounted is a Left wheel. Whether
single- or dual-arm, the next wheel is a Right, and they
alternate Left-Right across the implement.
Field Results Risk:
Be sure to mount Left wheels on Left arms or on the left side of
dual arms, and vice-versa for Right. Unsatisfactory row
cleaning and premature cleaner wear may otherwise result.
Wheel Placement
Refer to Figure 11 (which depicts a Left single-arm RC)
Each arm (and each side of a dual arm) has two
mounting holes for cleaner wheels. Which hole(s) to use
is dependent on your field conditions and field
experience.
Review the topic “Wheel Placement” on page 14, and
make a determination as to which hole(s) to use for the
initial mounting. If no clear choice emerges, use the
forward holes.

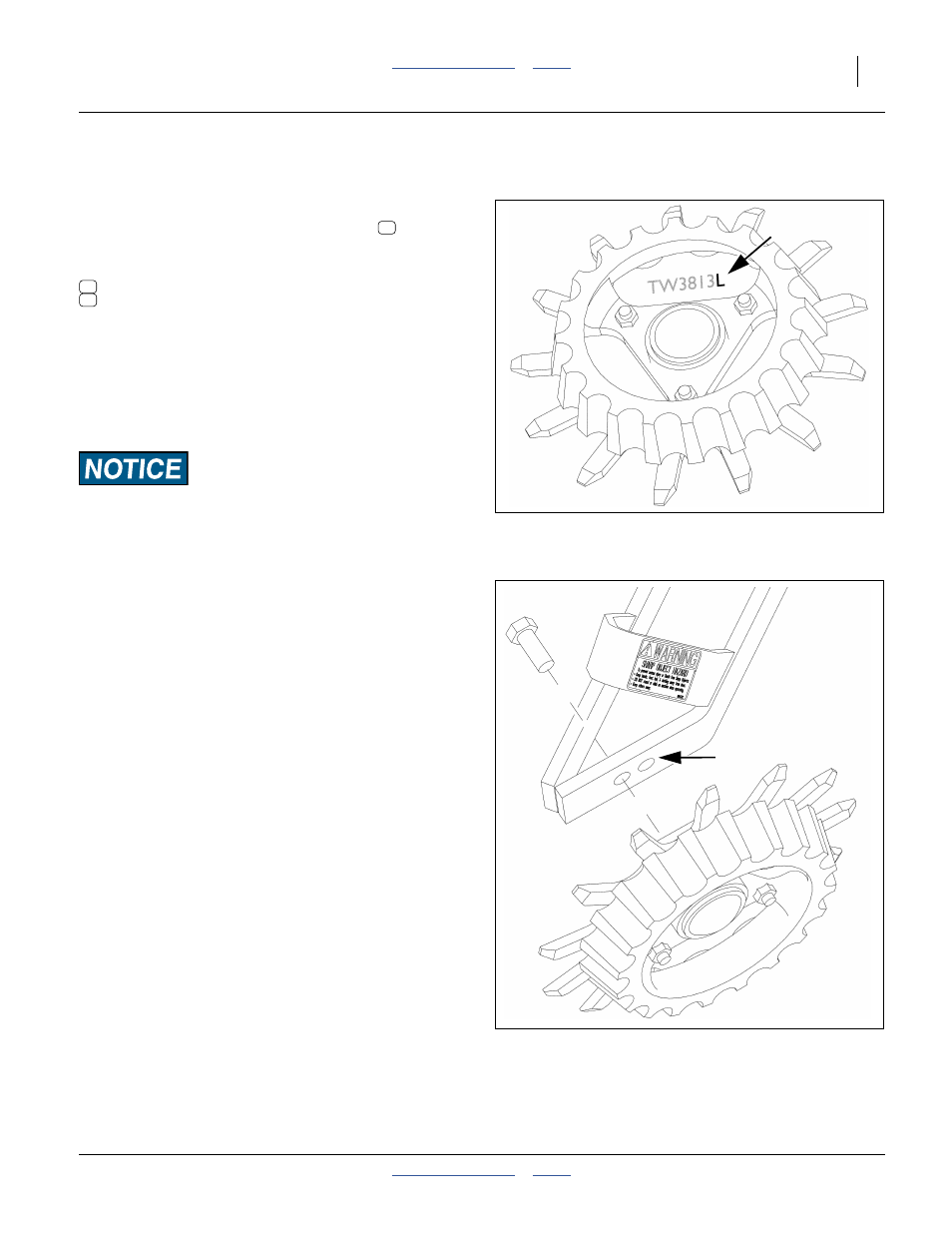

Figure 10:
Wheel Identification
27317
31
38
31
Figure 11:
Wheel Placement Choice
27319
