Update Kit: Remove Mount
Refer to Figure 4
D. Remove four sets of:
802-106C RHSNB 1/2-13X1 1/2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
Although identical to new parts in the kit, these
fasteners are not re-used.
E. Remove the old knob-adjust weldment
. The
weldment, and all parts still installed in it, are not
re-used.
Install UMRC Adjuster Parts
Refer to Figure 5
1.
Select one each:
207-072D UMRC MOUNT ROUND TUBE
802-673C HHCS 7/16-14X1 1/4 GR5 PLT
805-031C PIN HAIR COTTER .092 WIRE
805-385C PIN CLEVIS 3/8 X 3 PLT
2.
Insert the adjustment tube
in the weldment
with the large holes facing the slots in the weldment.
Hold in place with the clevis pin
and cotter pin
.
Pin the tube at the highest position that has the large
tube hole fully visible in the slots.
3.
Insert the round tube
through both the weldment
and the adjustment tube.
4.
Place the lock washer
and then the spacer
on
the bolt
. Apply thread adhesive to the threads,
and secure bolt in round tube
.

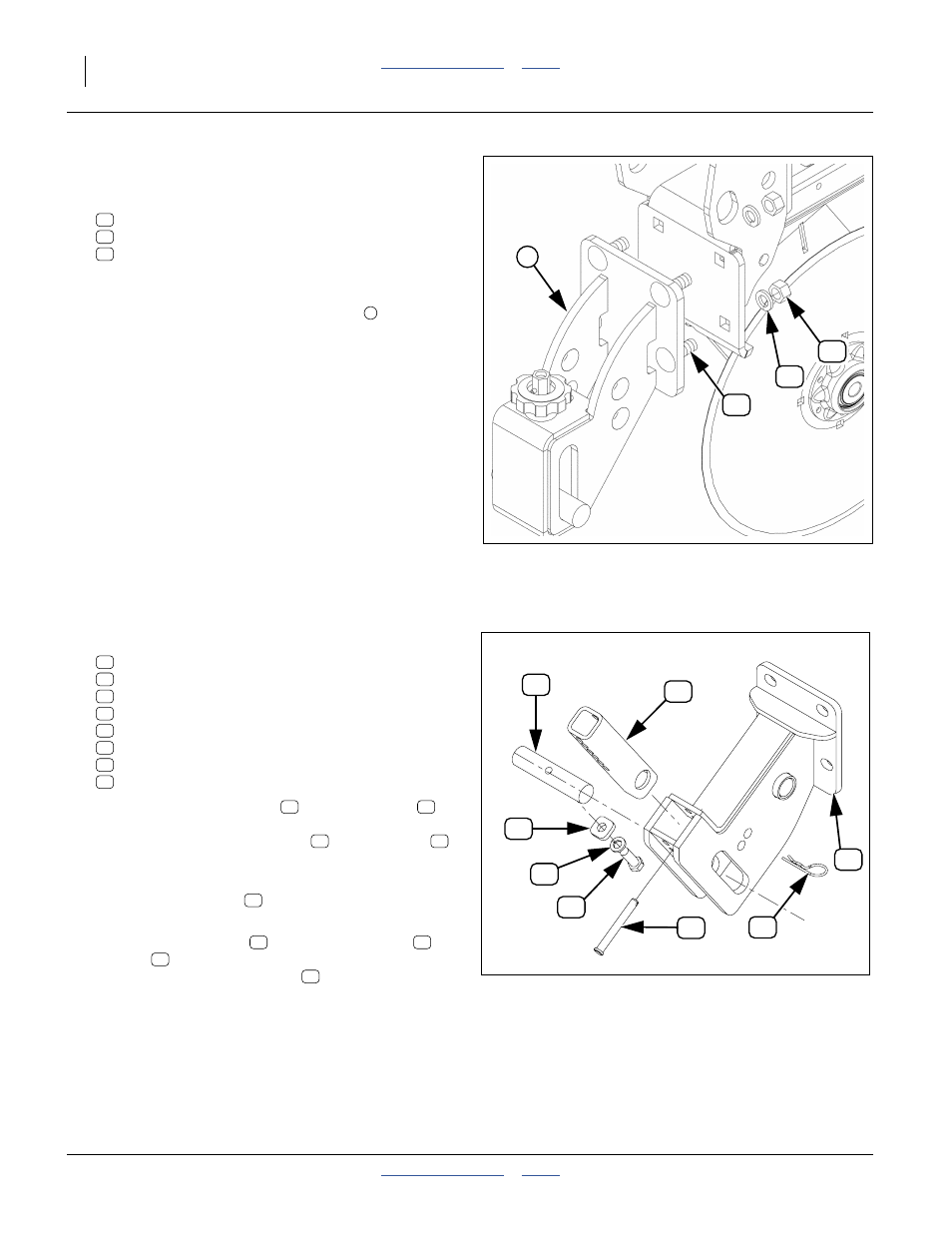

Figure 4:
Remove Old Mount
27349
17
23
1
20
17
23
20
1
Figure 5:
UMRC Adjuster Parts
27318
15
25
19
22
14
11
13
24
11
13
14
15
19
22
24
25
13
15
25
24
11
22
14
19
11
