4. Adjustment/Operation
1. Bar Coupler
2. Parking Stand
3. Front Discs
4. Spring Reset Tines
5. Rear Discs
6. DD Light Roll
7. Transport Wheels
8. Axle Cylinder
9. Disc Angle Adjustment Jack
10. Clevis Type Drawbar
4.1 Description

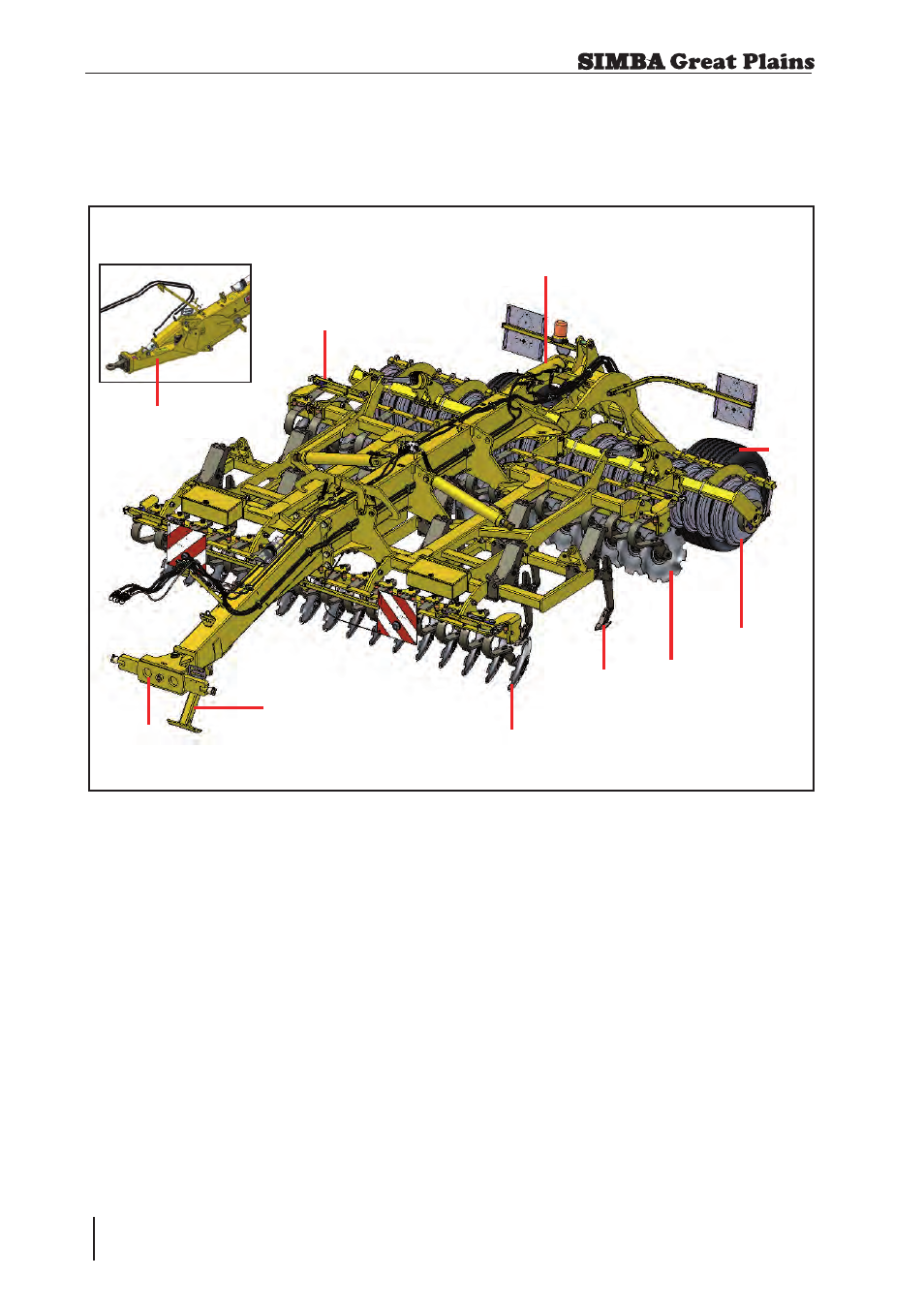

Fig. 4.01: Simba Great Plains SL400 DTD
1
2
3
4 5
6
7
8
9
Disc Tine Disc Configuration
