Frame Weight
The standard CTA4000HD includes four weight kits on
the center frame. Each kit consists of one pair of
700 pound (318 kg) weights, for an implement total of
5600 lbs (2540 kg). This is the maximum allowed. Install
no additional weights.
This extra weight is necessary for opener down-force
settings which, when summed for all rows, are near or
above the total weight of the implement.
In unusually soft soil conditions, remove weights to
reduce weight on the tires. Remove the weights in pairs,
from symmetrical locations about implement centerline.
The weights are held in place by gravity, and are easily
removed with a hoist rated for at least 700 pounds
(318 kg).
Tipping Hazard: Never add weights to the wings. The weights
will tip over during folding. Even if secured to the frame,
machine damage is likely. Wing weights are also unnecessary.
The hydraulic weight transfer system is capable of transferring
the entire weight of the implement to the wings.
Implement Model and Row Spacing
CTA4000HD-8006
6 in (15.2 cm)
CTA4000HD-6575
7.5 in (18.9 cm)
CTA4000HD-5010
10 in (24.8 cm)
8: Implement with standard weights 20553 lbs (9323 kg) 19240 lbs (8727 kg) 18048 lbs (8186 kg)
8: Maximum Down Force Per Row 257 lbs (117 kg) 296 lbs (134 kg) 361 lbs (164 kg)
6: Implement with 3 weight kits (-1) 19153 lbs (8688 kg) 17840 lbs (8092 kg) 16648 lbs (7551 kg)
6: Maximum Down Force Per Row 239 lbs (109 kg) 274 lbs (124 kg) 333 lbs (151 kg)
4: Implement with 2 weight kits (-2) 17753 lbs (8053 kg) 16440 lbs (7457 kg) 15248 lbs (6916 kg)
4: Maximum Down Force Per Row 222 lbs (101 kg) 253 lbs (115 kg) 305 lbs (138 kg)
2: Implement with 1 weight kit (-3) 16353 lbs (7418 kg) 15040 lbs (6822 kg) 13848 lbs (6281 kg)
2: Maximum Down Force Per Row 204 lbs (93 kg) 231 lbs (105 kg) 277 lbs (126 kg)
0: Implement with weights removed 14953 lbs (6783 kg) 13640 lbs (6187 kg) 12448 lbs (5646 kg)
0: Maximum Down Force Per Row 187 lbs (85 kg) 210 lbs (95 kg) 249 lbs (113 kg)

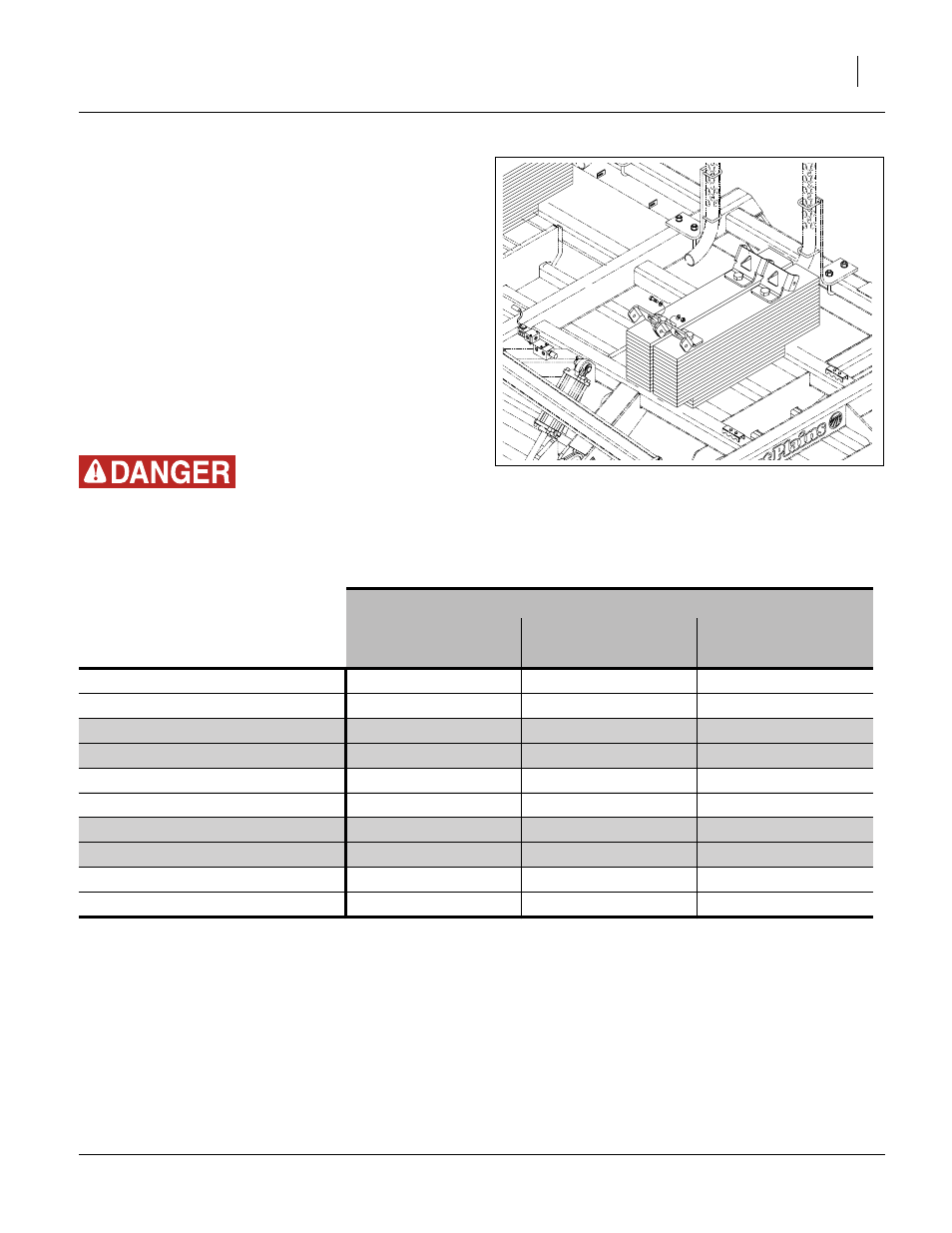

Figure 53
Frame Weights
