Hitch ADC2350 Link Arms
Refer to Figure 5,
which, for clarity, depicts the air cart without the rear hopper
1.
Use a line (not shown), from the cart walkboard, to
tie the cart links
up to the height of the lug holes
in the implement.
2.
Remove the pins
near the ball swivel links
of
the arms, allowing the arms to telescope. Do not
remove the stop bolts
.
3.
Drive the roll pins
out of the lug pins
and
remove the lug pins.
4.
Have a tractor slowly guide the cart backwards until
the link arm ball swivels are within two feet (61 cm)
of the lug holes
in the implement. Set tractor
brake.
5.
Manually extend each arm’s ball swivel
into
alignment with the implement pivot holes
. Insert
and secure the lug pins
on the implement.
6.
Release tractor brakes, and slowly back the tractor
up until the arm pins may
be reinserted. Secure
them with clips.
7.
Set tractor parking brake and shut off tractor.
ADC2350 Seed Hose Connections
Refer to Figure 6
Connect primary seed hoses (tower feed hoses) from the
implement to their respective outlets on the rear cart
meter box, in left to right order, skipping any capped
outlets.
Leave enough slack so that implement can be fully
raised, lowered, folded and unfolded.
Secure hoses to meter box using screw clamps provided.
Orient outer clamps so that they do not interfere with the
door latches on the meter.
ADC2350 Electrical Connections
Refer to Figure 7
Make sure tractor is shut down with accessory power off
before making connections.
1.
Mate the lighting plug
to the outlet connector on
the cart.
2.
Mate the implement lift switch plug
to the outlet
connector on the cart.
3.
If present, mate the seed monitor plug
to the
outlet connector on the cart.
4.
Secure cables so they are clear of moving parts at
the hitch.

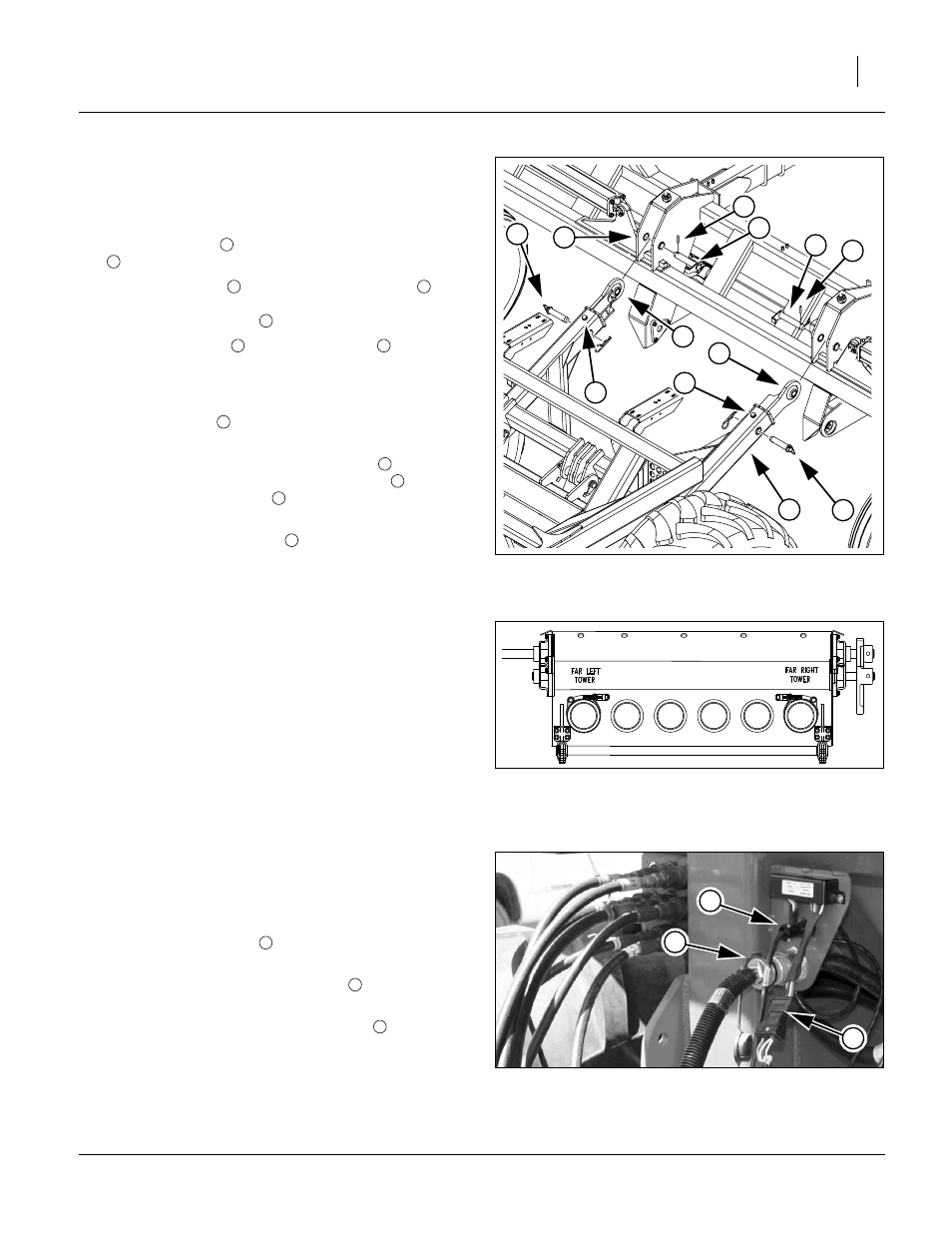

Figure 5
Hitching Cart to Implement
26431
6
7
5
7
1
3
6
3
4
2
4
2
1
5
2
3
4
6
7
5
3
5
7
2
Figure 6
Cart Seed Hose Outlets
26302
Figure 7
Lift & Monitor
26439
1
3
2
1
2
3
