Marker Operation
Great Plains does not manufacture markers for this
model implement. If you purchased markers, the marker
manufacturer has supplied operating instructions.
Carefully read marker manufacturer’s instructions for
safe installation, operation and adjustment. You may also
need the following additional information.
Refer to Figure 47 and Figure 48
Markers use hydraulic receptacles
and
on the air
cart. Any markers are on a separate hydraulic circuit on
the implement.
Markers share a circuit with the air cart’s auger,
controlled by a two-position selector valve located at:
ADC2350: front right corner of the front bulk hopper
ADC1150/2220: outside of left tongue
Handle
settings:
Implement marker circuit enabled (auger off);
Cart auger circuit enabled (markers off)
At the implement, markers are typically controlled by a
local automatic sequence valve or solenoid valve (from a
cab switch).
Field Operations
This section presumes that all pre-operation check have
been made on both cart and implement, and cart is
loaded with seed and any treatments.
Final Field Checklist
Planting Sequence
1.
Lower implement 5 to 10 feet (1.5-3 m) before initial
seeding point.
2.
Pull forward and begin planting.
3.
Raise implement for turns (meters stop
automatically).
❑ Master switch On (ADC1150 or ADC2220)
❑ Set seed meters per chart or calibration.
❑ Check cart fan valve set On for fan.
Check cart selector valve set to markers.)
❑ Set fan to speed suitable for seed. Watch fan at
start-up to ensure correct direction of rotation.
❑ Run fan for at least 15 minutes before planting.
❑ Check fan air pressure gauge for 12-25 inches of
water pressure.
❑ Check all seed hoses secure.
❑ Check for air leaks at lids and meter box seals.
❑ Implement unfolded.
❑ Implement valve handles set to FIELD.

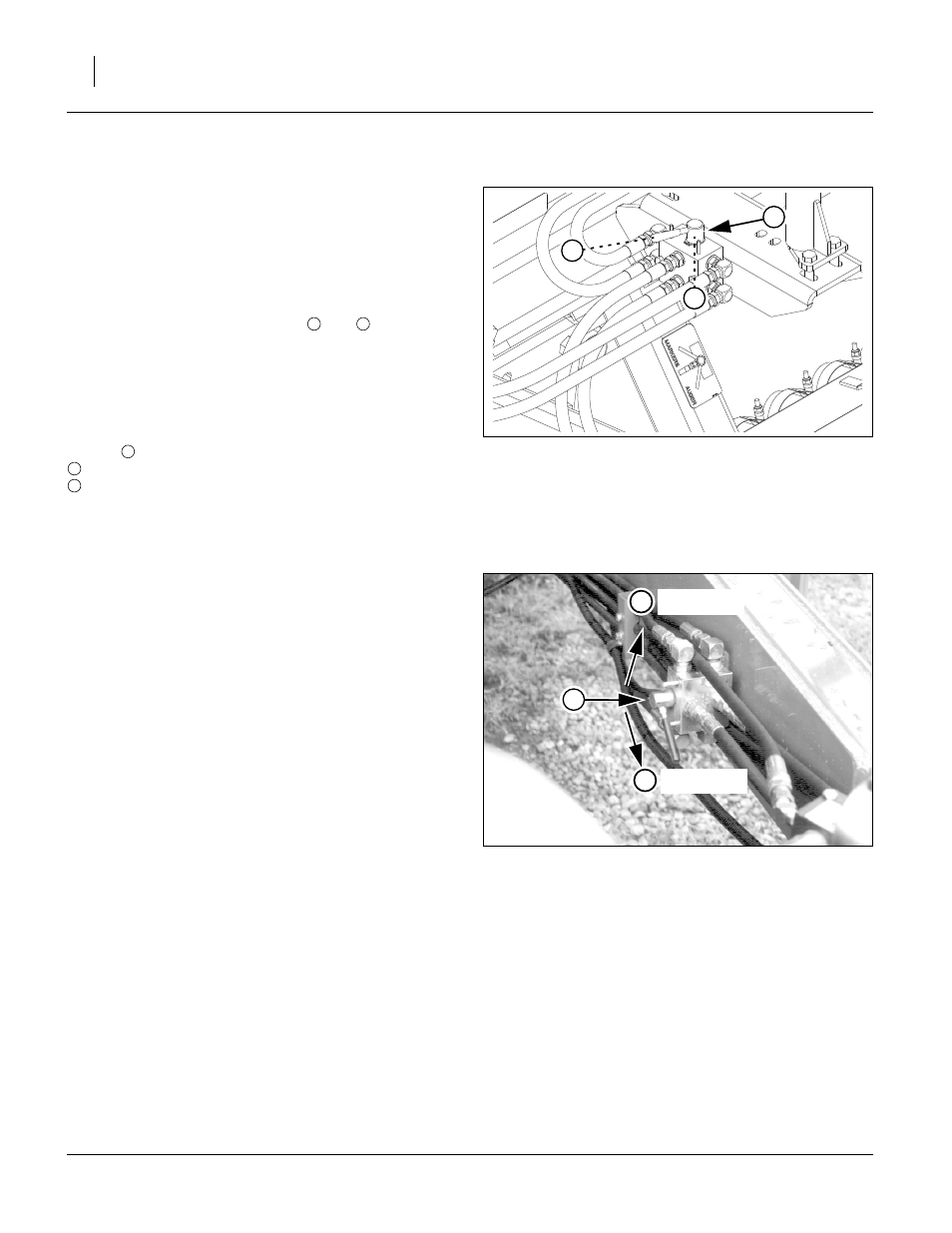

Figure 47
ADC2350 Cart Selector Valve
26417
1
3
2
A
B
1
2
3
Figure 48
ADC1150/2220 Selector Valve
16221
Auger
Markers
1
2
3
