30 CTA4000HD Great Plains Manufacturing, Inc.
160-037M 2012-11-28
Folding and Unfolding
Fold and unfold implement on level ground. Be aware of
clearance required to fold implement. See
“Specifications and Capacities” on page 62.
Electrocution Hazard: To prevent serious injury or death from
electric shock, keep clear of overhead power lines when
transporting, folding, unfolding or operating all air implement
components. Machine is not grounded. At higher voltages,
electrocution can occur without direct contact.
Overhead Crushing Hazard: To prevent serious injury or
death:
▲ Always use lock pins when implement is folded.
▲ Fold implement only if fold hydraulics are bled free of air
and fully charged with hydraulic oil. See “Bleeding
Hydraulics” on page 21.
▲ Keep away and keep others away when folding or unfolding
implement.
Folding the Implement
Refer to Figure 32
1.
If installed, fold the markers
a
.
2. Set tractor circuits to neutral.
3. Set both valve handles to FIELD.
4. Activate the tractor circuit to raise the openers, and
then set the circuit control to neutral (not float).
Refer to Figure 33
5.
Set the Field/Transport valve handle to TRANS. This
hydraulically locks the openers in the raised
configuration.
Refer to Figure 34
6.
Turn the Field/Folding valve handle to FOLD.
7. Set tractor at low idle speed.
8. Engage tractor hydraulics and fold implement wings.
a. Great Plains does not presently offer markers for the CTA4000HD.
If installed, consult the documentation provided by the marker supplier.

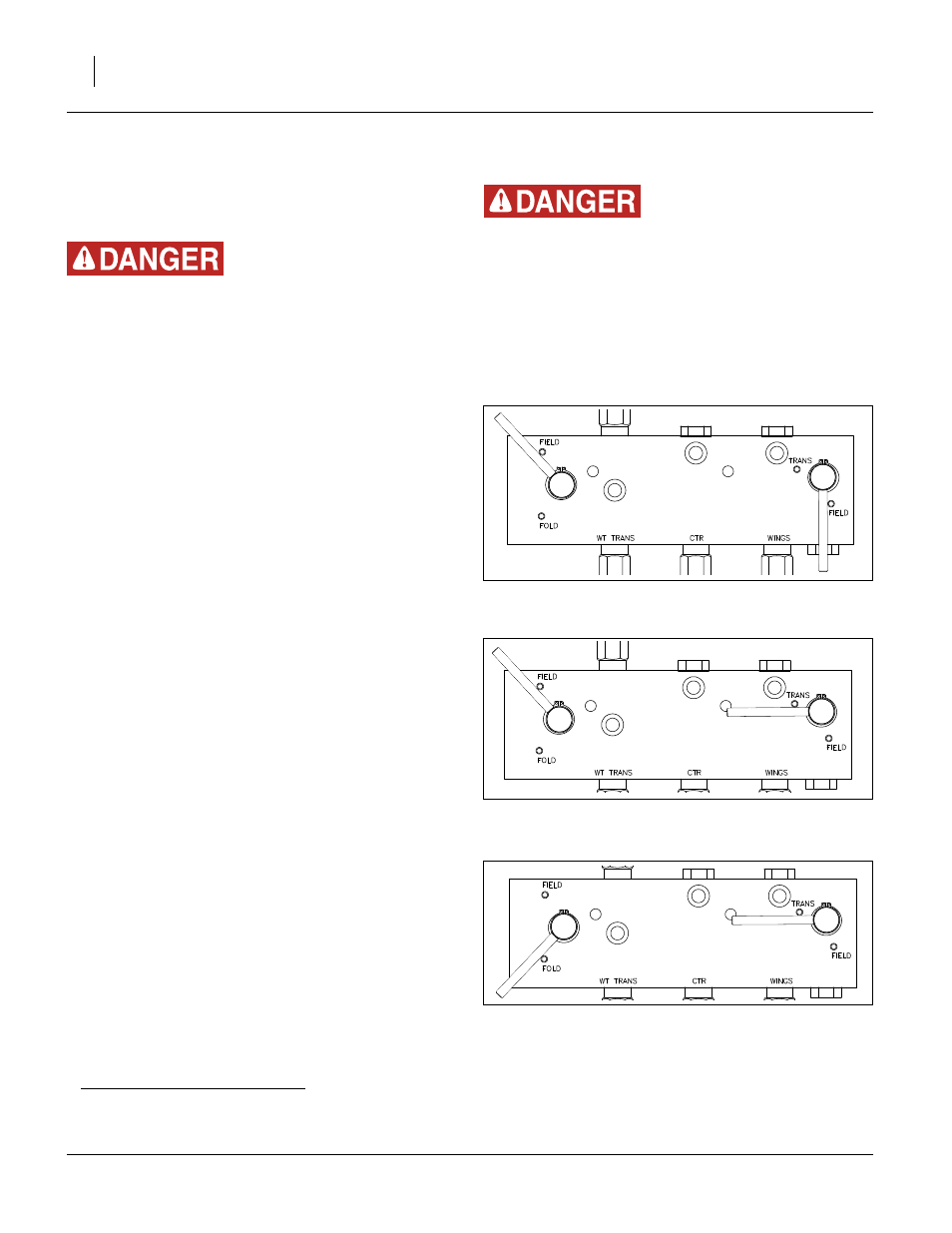

Figure 32
Handles for Pre-Fold Lift
26372
Figure 33
Handles for Pre-Fold Lift-Lock
26373
Figure 34
Handles for Fold
26373
