16

3323-4336DH

Table of Contents

Index

Great Plains Manufacturing, Inc.

556-100Q

Table of Contents

Index

05/22/2012

Refer to Figure 14
43. Route hoses

for lift and fold systems from the front

of the main frame, along the left, inside tube on the
hitch and through the spring hose holder

.

44. Approximately 3’ of hose should extend past the

hitch point

.

45. Fasten hoses to hitch frame with bolts and clamps

(provided) on hitch frame.Attach hose wraps on
hoses to prevent hoses from dragging or getting
pinched.

46. See “Attach Hose Clamps and Hose wraps” on

page 17 for proper assembly.

47. If machine has optional hydraulic cylinder

instead

of turnbuckle for leveling run hoses from cylinder to
lock valve

and then along right side, inside of tube

of hitch

.

48. When all hoses are clamped to frame, check that all

fittings are tight. You are ready to charge the hydrau-
lic system.

1

2

3

4

4

5

6

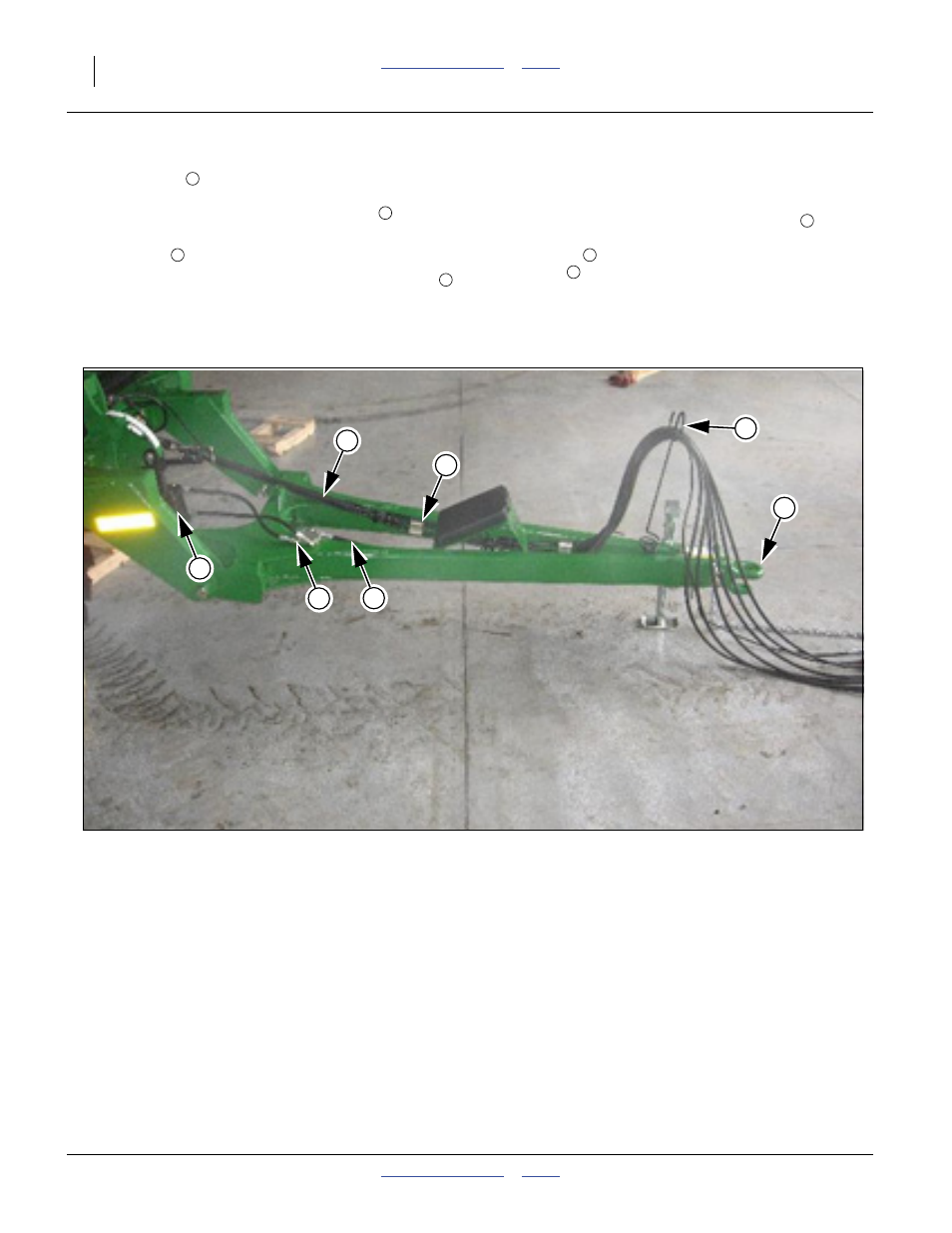

Figure 14

Hitch Hose Routing

42144

6

3

1

4

2

5

4
