Page 11

05/22/2012
556-100Q
Great Plains Manufacturing, Inc.
7
Assembly
Narrow Center Hub and Wheel Assembly
Refer to Figure 4
Note: All bolts will be pre-installed on the unit in their
proper location. Bolts will need to be removed and
then re-installed during assembly. See “Parts
Manual” for complete break down of parts. For
4330-4336 models, skip to, See “Wide Center
Frame Assembly” on page 8.
1.
Set pre-assembled center frame section
on
stands
that are tall enough to allow for installation
of the pre-assembled gang bars as shown. Model
3329 will be the same as models 4330-4336, See
“Wide Center Frame” on page 8.
Note: Be sure and get the walking beam stop
installed on back side (rear holes) of walking
beam
as shown in inset picture. Be sure tab or
notch of hub assembly plate
is installed on top.
2.
Remove the 3/4 x 4 hex bolts
and 3/4 x 3 hex bolts
. Bolt he hub/spindle assembly
to walking beam
assembly
with the bolts
and
, secure with 3/4
lock washers and 3/4 nuts.
Note: The center uses 11l-5 load range F tires while the
wings have 11L-15 8 ply tires.
3.
Instal tire/wheel
to hub assembly
with 9/16 lug
nuts
.
4.
Bolts may be tightened to specs, See “Torque Val-
ues Chart” on page 24.
1
2
3
6
7
4
5
7
6
4
5
8
7
9
3
U
D
F
B
L
R
1
8
7
2

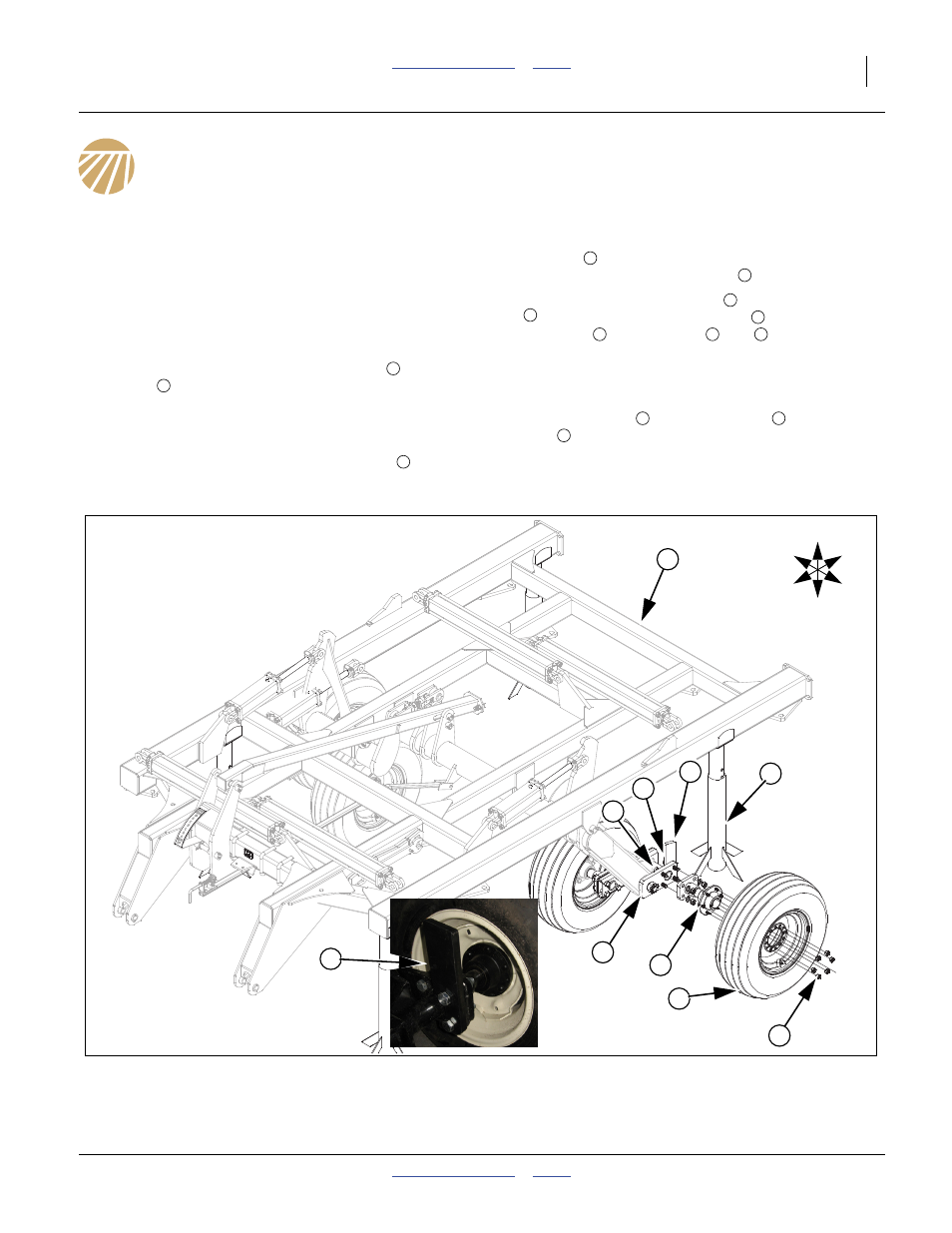

Figure 4
Narrow Center Hub and Wheel
42131
42135
9
4
5
6
3
