2025P, 2020P Bedded, and
2010HDP
118-928M 8/14/2006
68

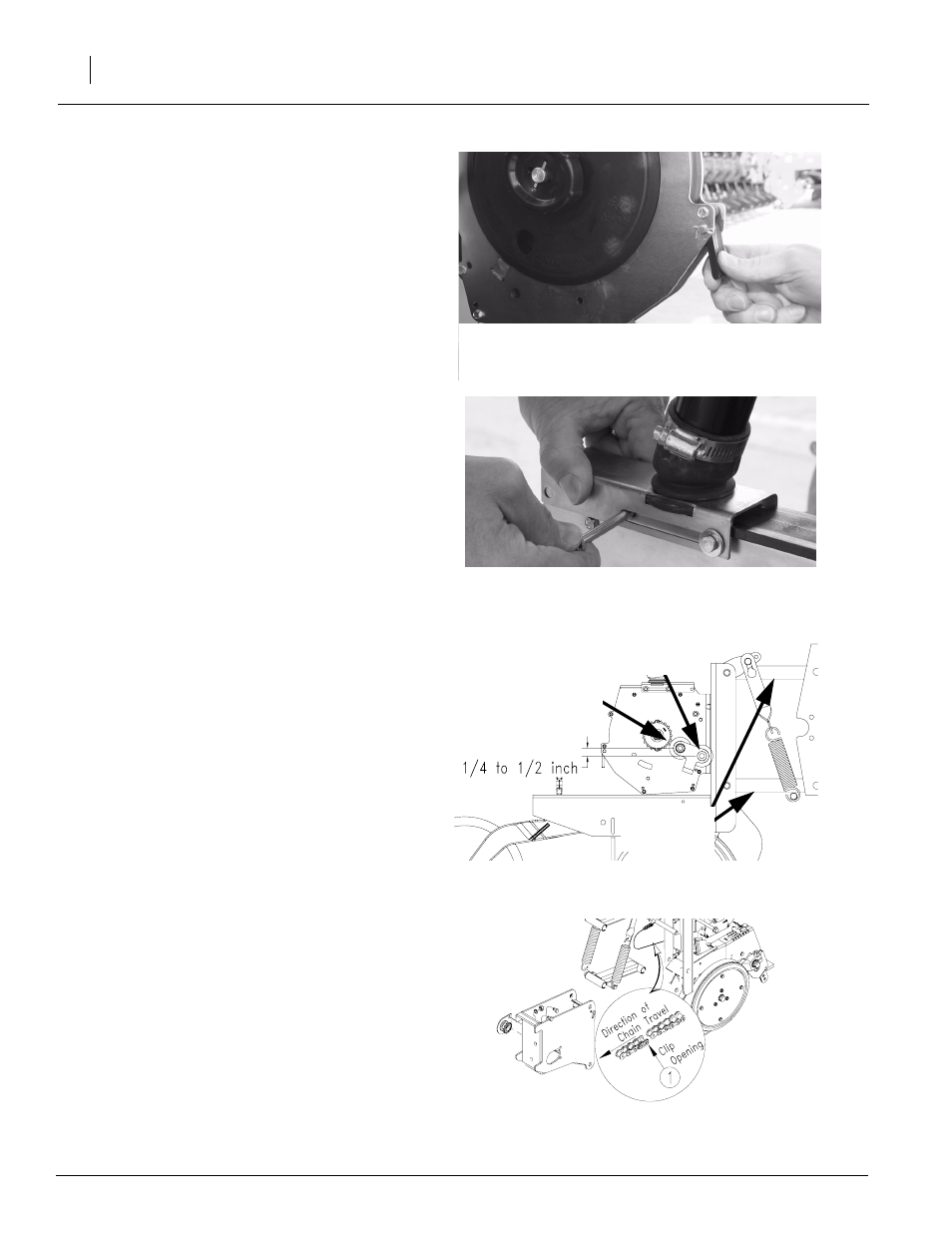

Refer to Figure 92
13. Close and pin meter clean out.
Refer to Figure 93
14. Open and pin sliding seed tube.
Chain Tension. The seed meter drive has a
spring-loaded idler which requires no adjusting.
However, chain stretch may make it necessary to
shorten the chain.
Refer to Figure 94
For best chain tension the recommended vertical
distance between chain idlers should be not less
than 1/4 inch and not more than 1/2 inch. This
measurement should be taken with opener arms
horizontal.
Refer to Figure 95
NOTE: The front idler should be below the rear
idler. Be sure chain is installed with the chain
connector link retainer towards the centerline
of the opener and the clip opening (spit end)
faces the opposite way of the chain travel.
Figure 92
Close and pin clean out
22857
Figure 93
Open and pin sliding seed tube
18300
Figure 94
Seed Meter Chain Idlers
18300
Arms
horizontal
rear idler
front idler
19598
Figure 95
Chain retainer
