Great Plains 2025P Operator Manual - Manual (Page 47)

8/14/2006 118-928M
45 Adjustments
Changing Seed Meters for HD 10
Series Openers and 25 Series
Openers
To change from Precision Meter to Finger
Pickup Meter
1.
Remove seed from seed box.
2. Clean out meter. For more information see
“Cleaning Out Meters,” page 40.

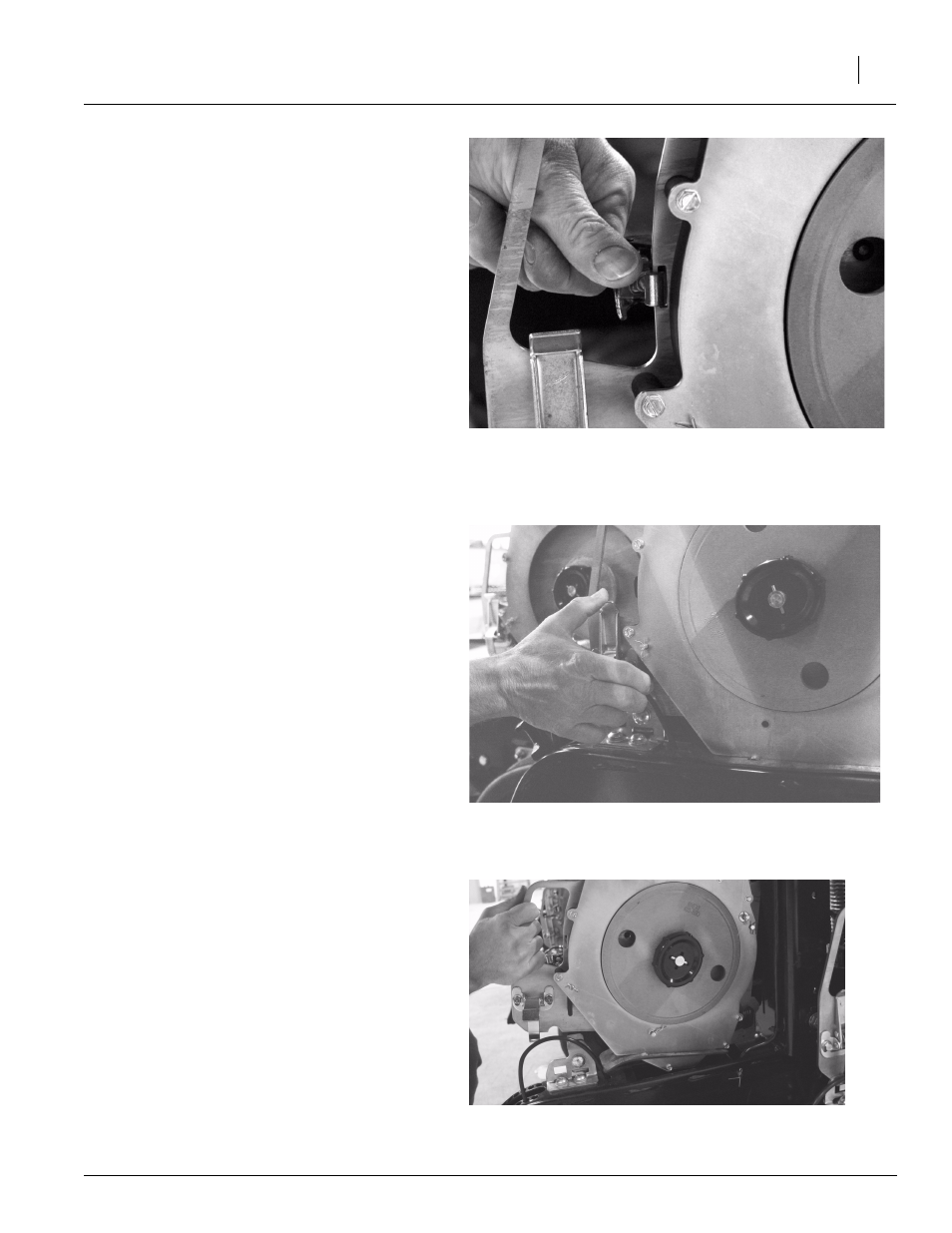

Refer to Figure 65
3. Release the upper latch and swing drive plate
away until meter drive shaft is free.
Refer to Figure 66
4. Release the lower latch.
Refer to Figure 67
5. Lift up and remove the precision meter along
with the lower section of the sliding seed tube.
22866
22865
22867
Figure 66
Figure 65
Figure 67
