INSTALLATION AND OPERATION MANUAL
Models MF3700, MF3800
Page 31
800-345-6007
CumberlandStoveWorks.com
AFTER CABLE IS ROUTED THRU HOPPER HOLE
CABLE SLEEVE MUST BE CRIMPED
1
2
3
4 5
6
7
8
9
10
1
13
12
11
15
14
kEY #
PART # DESCRIPTION
qTY.
1
725029 SCREW #8-18 X 1/2 PPHSD ZN 9
2
700420 COVER PANEL
1
3
720084 SPRINg HIgH LIMIT SWITCH
2
4
700421 SLIDE FUEL SHUT OFF PANEL 1
5
700425 SLEEVE
1
6
700424 CABLE FUEL SHUT OFF PULL
1
7
67537 BOLT 10-24 X 1 PPH
1
8
700422 TRIggER FUEL SHUT OFF
1
9
720203 SOLENOID FUEL SHUT OFF
1
10
725034 PIN COTTER
11
720202 FUEL SHUT OFF RELAY
1
12
725032 BOLT #8-32 X .25 PPHMS gR2
ZN
2
13
725017 NUT #10-24 HKPS STNLS
1
14
700423 MOUNT FUEL SHUT OFF
BRACKET
1
15
10450 NUT 10-24 FLANgE RIB
NUTSERT
1

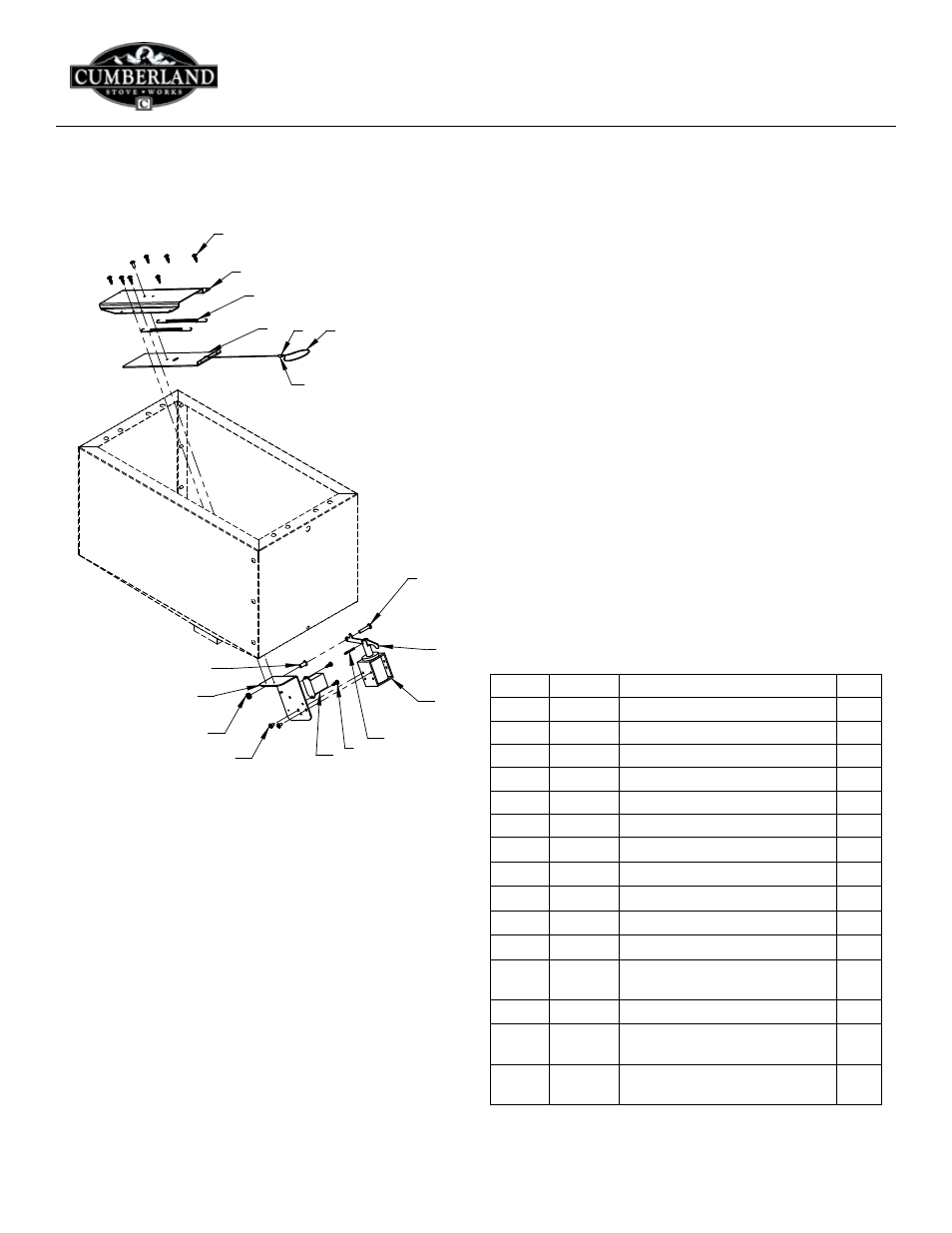

FUEL SHUT OFF
Figure 3
