INSTALLATION AND OPERATION MANUAL
Models MF3700, MF3800
Page 18 800-345-6007 CumberlandStoveWorks.com
Range 4
Range 3
Range 2
Range 1
Lowest Feed Rate/
Combustion Airflow
Highest Feed Rate/
Combustion Airflow
Levels 1-6
Levels 1-6
Levels 1-6
Levels 1-6

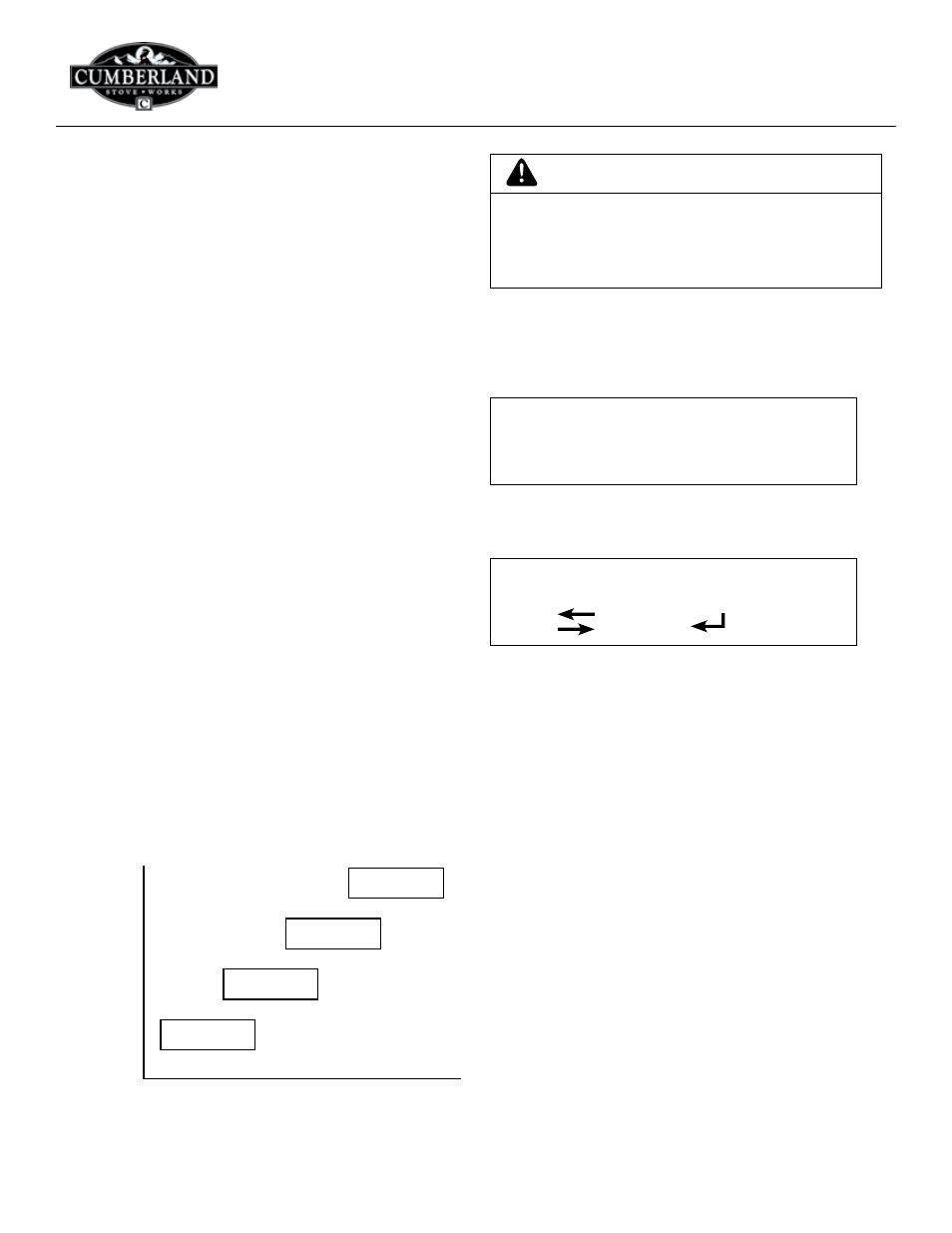

Figure 24: Feed rate chart.
After you have dumped the ashes, push the pot all the
way to the back of the fire box until you feel the pot
lock in place, then make sure the firepot is locked by
pushing down on the pull rod. If you cannot get the pot
locked, there is probably fuel or ash in the way. Clear the
debris from the floor of the fireplate and try again. Never
operate the stove unless the firepot is locked in place.
Fill the hopper with an approved solid fuel and close the
lid.
The first screen you will see upon power-up is the model
and version of software loaded in the control. It will then
default to the Fuel Range Selection Mode.
FUEL RANGE SELECTION
The CSW Multi Fuel Parlor stove has four fuel ranges and
six heat output levels within each fuel range. This gives
the stove 24 levels of variability maximizing the burn with
your chosen fuel. Range 1 Level 1 is the lowest feed rate/
combustion airflow and Range 4 Level 6 is the highest feed
rate/combustion airflow.
SEE FIGURE 3.
rangeS For aPProveD FueLS
• Corn 1-2
• Wood Pellets 2-3-4
• Cherry Pits 4
SeLeCting the range
The control will offer two selections on the screen. To
browse through the range selections use the SCROLL
button. To choose a range scroll through until the desired
range is on top and press ENTER. Range may be changed
at anytime during stove operation by pressing the SCROLL
button.
Starting a Fire
After the range has been loaded, the controller will instruct
you to light the fire. MF3700 stove controllers will read as
follows:
LIgHT FIRE
PUSH ON BUTTON
Stoves equipped with electric ignition (model MF3800) will
have the option of starting the fire manually or automatically
with the igniter. The screen will read as follows:
ELECTRIC IgNITE
no yes
Pushing SCROLL will send the controller to the LIGHT
FIRE PUSH ON BUTTON. See “Manual Lighting
Instructions” before starting fire or pushing ON. For
electric ignition read “Electric Ignition Instructions” before
pressing ENTER.
manuaL Lighting inStruCtionS
IMPORTANT: Before lighting the stove for the first
time, make sure that no shipping items have been left
inside the firebox or ash pan.
When initially filling an empty hopper you must prime the
feed auger. To prime the auger press the ADD FUEL button.
This will turn the auger on for one minute or until the ADD
FUEL button is pressed again. Run the feed auger until
you see fuel start to drop into the firepot.
note: the parlor stove has been designed with a safety
switch on the hopper lid. the auger will not run with
the hopper door open.
Fill the firepot with about one cup of starting pellets or
wood pellets. If wood pellets are used, squirt about two
tablespoons of burn gel on pellets.
Light the material in firepot using a match or a grill type
lighter, close the door and press the ON key. The sound
you hear after the ON key is pushed is the exhaust fan
WARNING
NEVER PUT STARTING PELLETS OR BURN GEL INTO
THE HOPPER OF THE STOVE. THIS COULD RESULT
IN DEATH OR SERIOUS INJURY AND OR PROPERTY
DAMAGE. DOING SO WILL VOID ALL WARRANTIES.
