MOUNT DOOR
Take off protective cardboard. Hang door on hinges making
sure it’s seated properly so the latch is aligned with the
latch cut-out.
LATCH ADJUSTMENT
The door gasket may settle after use. Adjustment to the
latch is necessary to ensure proper seal. To adjust the
latch, remove the roll pin and swap washers from the
inside of door to the outside of the door. Replace roll pin
and inspect door fit.
MOUNTING THE CONTROLLER
The CSW MF Series Stove has three different controller
mounting options:
1. Back of the stove with controller visible: You may mount
the controller on either side of the rear of the stove
(
FIGURE ) so it is visible during operation. To do so,
use the metal mounting bracket and the four (4) self-
tapping screws (two (2) through the plastic bracket and
two (2) through the back panel of the stove). Attach
through the pre-drilled holes.
note: Self-tapping screws must penetrate hopper.
2. Back of the stove with controller hidden: You may mount
the controller on either side of the stove (
FIGURE 10)
so it is not visible during operation. Attach the plastic
mounting bracket to the pre-drilled holes on either side
of the stove using the (2) self-tapping screws.
note: Self-tapping screws must penetrate hopper.
3. Wall mounted (FIGURE 11): You may mount the
controller on the wall next to the unit using two drywall
screws. It is best to embed the screws into a stud. Use
a stud finder to locate studs in the wall.
PLUG STOVE INTO CONTROLLER
After mounting the controller, plug the phone cord from the

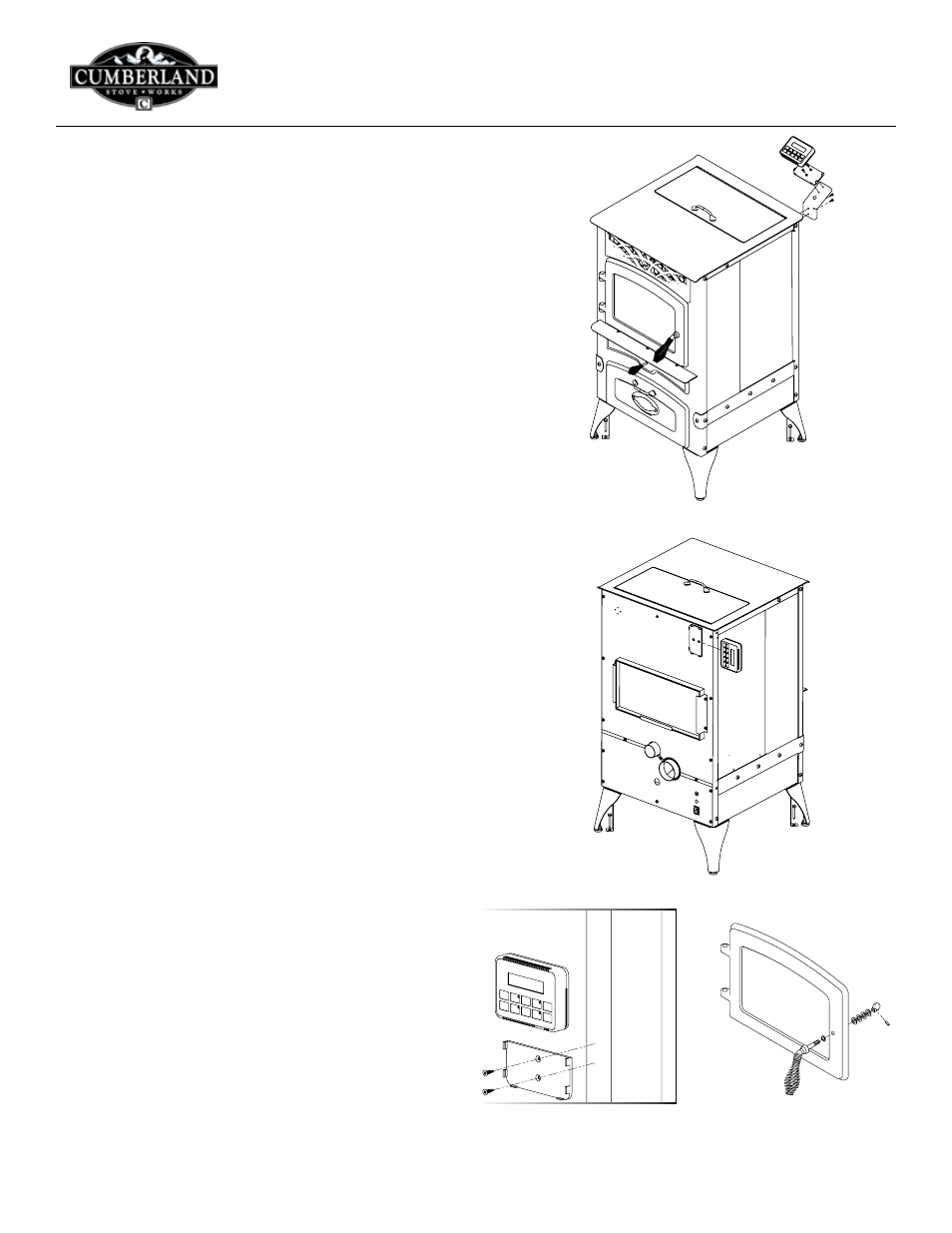

Figure 9: Controller on metal bracket in back.
Figure 10: Controller on plastic bracket in back.
Figure 11: Controller on wall.
Figure 12: Door Latch Adjustment.
