VENT TERMINATION CLEARANCES
CLEARANCE
9 inches
Clearance below or beside any door or window
that opens.
9 inches
Clearance above any door or window that
opens.
3 feet
Clearance from any adjacent building.
7 feet
Clearance from any grade when adjacent to
public walkways.
2 feet
Clearance above any grass, plants, or other
combustible materials.
3 feet
Clearance from any forced air intake of any
appliance.
2 feet
Clearance below eaves or overhang.
1 foot
Clearance horizontally from combustible
wall.
3 feet
Clearance above the roof.
2 feet
Clearance above the highest point on the roof
within 10 feet.

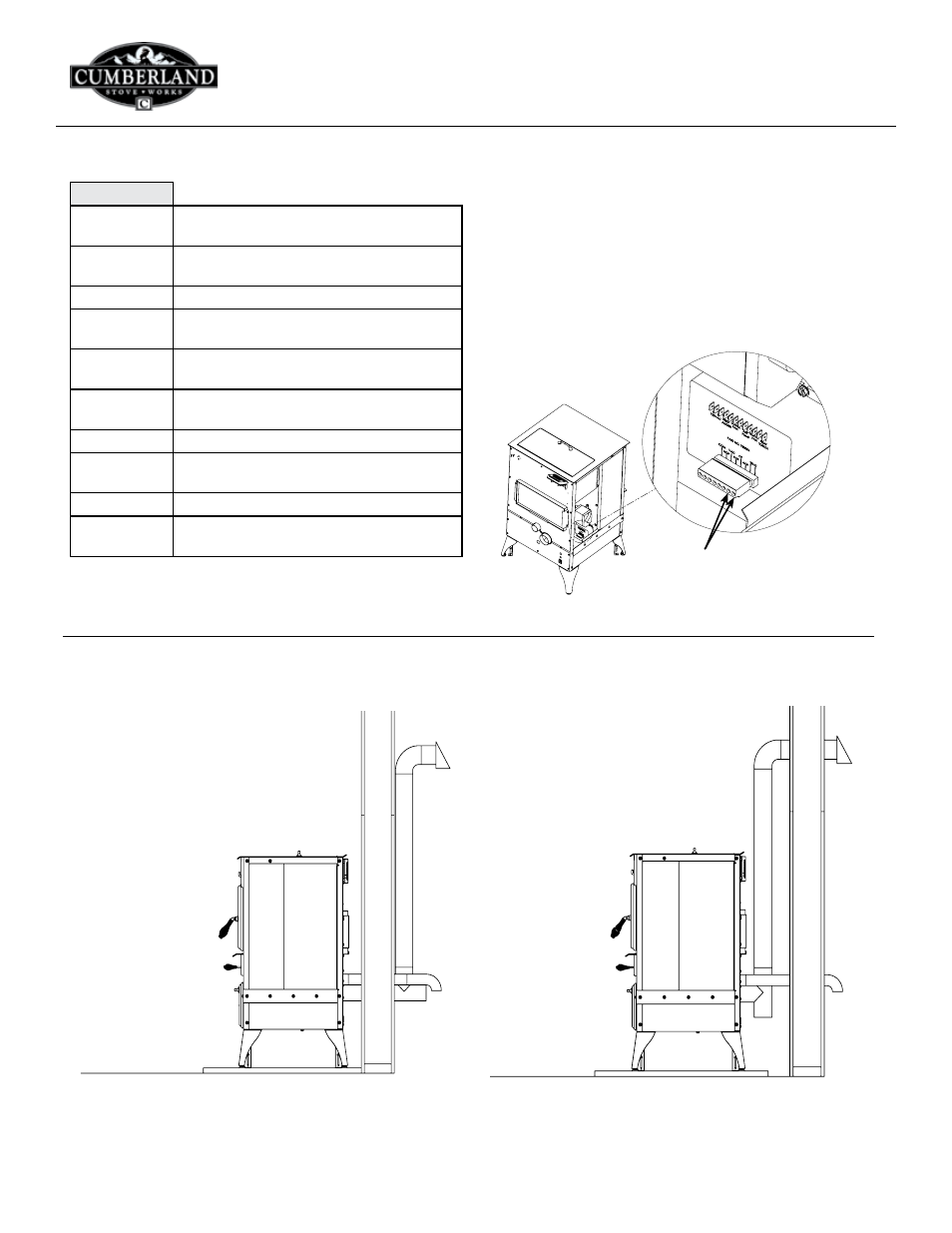

VENTING INSTALLATION EXAMPLES
Figure 21: STRAIgHT INSTALLATION
Inside Vertical Rise, Horizontal Termination
Figure 20: STRAIgHT INSTALLATION
Outside Vertical Rise, Through Wall Installation
INSTALLING REMOTE THERMOSTAT
The MF Parlor Stove can be run thermostatically by
purchasing any thermostat (sold separately) that uses a
mechanical switch. This step is optional and not required
for MF Parlor Stove to operate.
Mount thermostat according to manufacturer specifications.
Using a small flat head screwdriver, tighten remote
thermostat wires into pins 7 and 8.
SEE FIGURE 1.
remote
thermostat
terminals
Figure 19: Remote Thermostat Terminals
