INSTALLATION AND OPERATION MANUAL
Models MF3700, MF3800
Page 10 800-345-6007 CumberlandStoveWorks.com
UNPACkING AND ASSEMBLY
Unpack all hardware located in the unit’s hopper and ash
pan. The following should be included:
4 - legs (710008) w/ levelers (725010)
4 - tie-down straps (700136)
1 - firepot cleaning rod (700076)
1 - cleaning rod spring (720053)
1 - hopper lid handle (730006)
1 - power cord (720045)
1 - door (700311) with glass (720002)
and handle (700351, 700359)
1 - controller (730053)
1 - steel mounting bracket (700349)
1 - pre-made parts bag (small) which includes:
4 - 1/4-20 x 2” tie-down bolts (725015)
2 - 8-32 x 3/8” hopper lid handle bolts (725012)
12 - 5/16-18 x 3/4” leg bolts (1501)
4 - #8-18 controller bracket screws (725027)
MOUNT LEGS
note: Stove can be installed with or without legs.
if legless installation is preferred, you may skip this
step.
note: Stove is heavy. team lifting is recommended.
1. gently tilt the stove on its side.
2. Assemble the legs using provided (12) leg bolts
AS
SHOWN IN FIGURE 4.
note for mobiLe home inStaLLation: if unit is
to be used in a mobile home, you must install the
(4) tie-down straps to the stove now. refer to page
17 for instructions.
3. After all bolts have been tightened, set the stove back
up on its legs.
MOUNT HANDLE TO HOPPER DOOR
1. Using a Phillips screwdriver, attach hopper
handle to hopper door using the pre-drilled holes.
SEE FIGURE 5.
ASSEMBLE FIREPOT CLEANING ROD
1. Thread spring over non-threaded end of rod.
2. Place threaded end of firepot cleaning rod
through decorative casting and screw into firepot.
SEE FIGURE 6.
note: Firepot must seal tight when pushed in.
• The upper baffle (700202), FIGURE 7, is located in the
top of the firebox.
PLUG IN POWER CORD
1. P l u g p ow e r c o r d i n t o t h e b a ck o f s t ove.
SEE FIGURE 8.

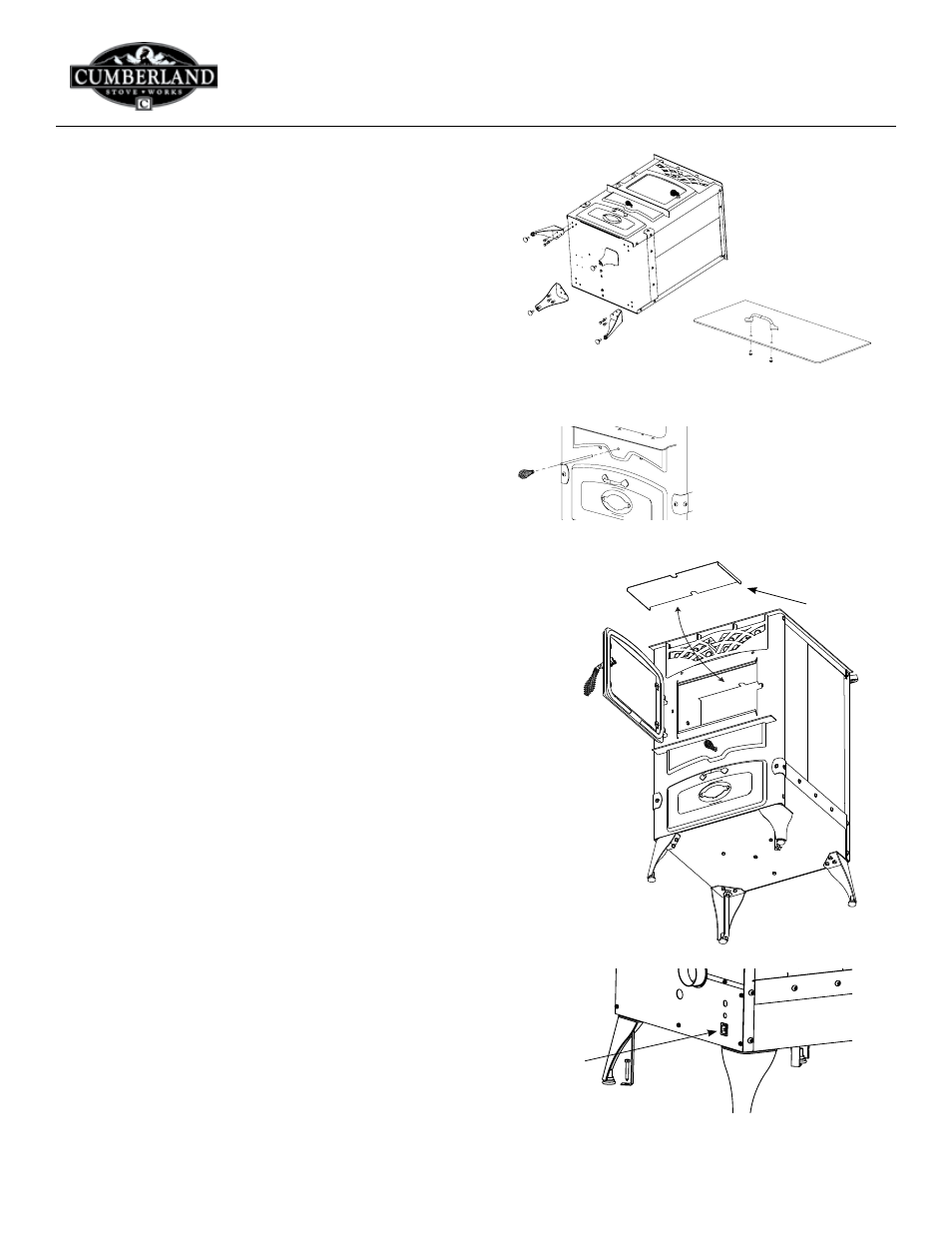

Figure 4: Leg Assembly
Figure 6: Ash Shuttle Rod Assembly
Figure 5: Hopper Door
Handle Assembly
Power Cord
Receptacle
Figure 8: Power Cord Receptacle
Figure 7: Upper baffle
in top of firebox
Upper
baffle
