USER WIRING FOR: 1 Current Loop without Host Communications
Terminal Wiring
1 24VDC or 110 VAC from Power Supply
2 Ground from Power Supply
3
4
5 Earth Ground from Power Supply
6 Current Loop -
7 Current Loop +
8
9
10
11
12
Note: Current Loop Requires 24 VDC or 110 VAC supply.

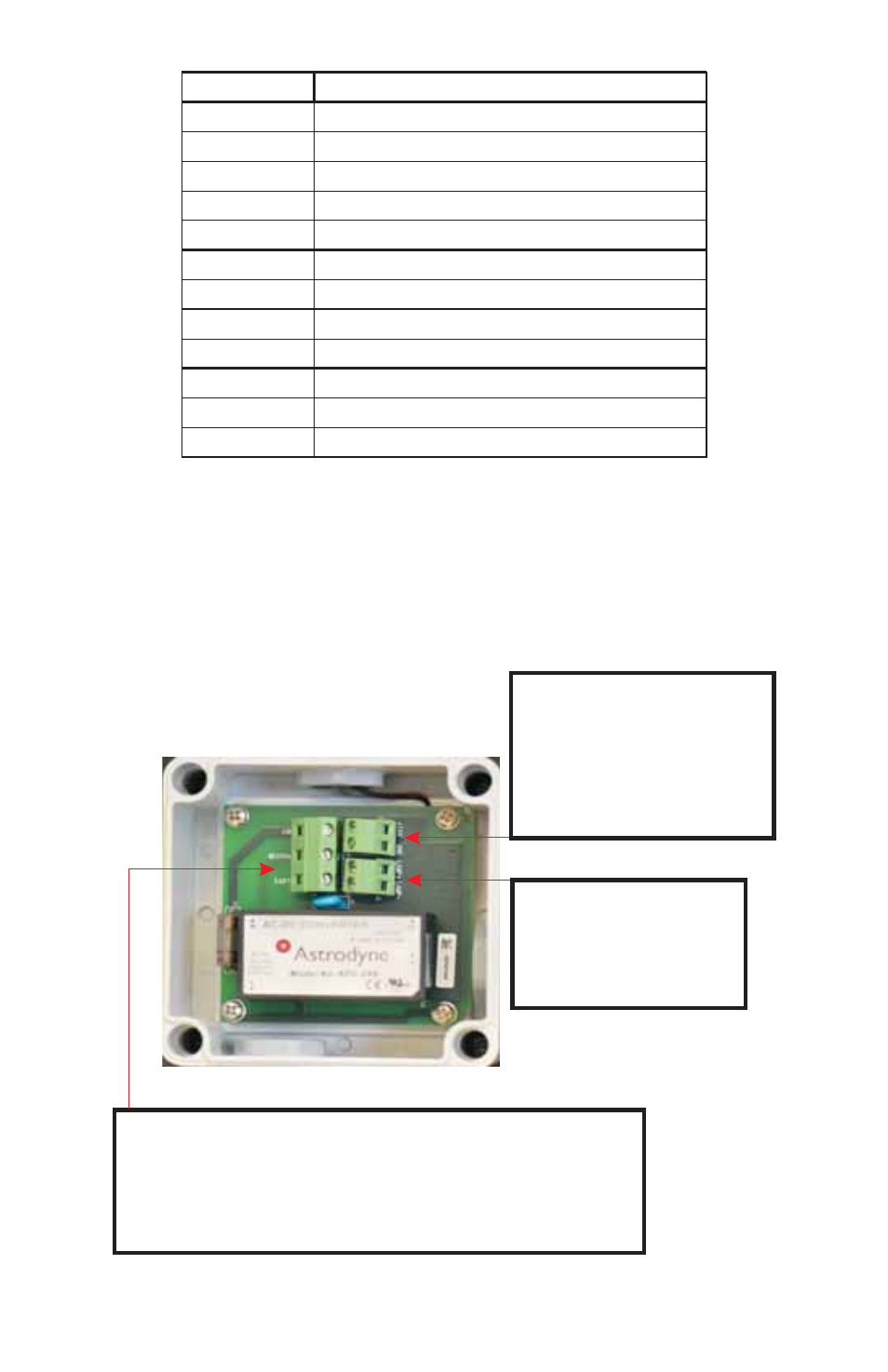

USER WIRING FOR: 24 VDC or 110 VAC Power
AC-Powered Models:
The AC-powered ClearTrace Tubidimeter comes with a Junction Box below the two
terminal blocks when ordered with one or two 4-20 mA analog outputs and/or host
comminications. If relays are ordered, a third terminal block is present.
12
100-240 VAC Power Cable Wiring:
1. 100-240 VAC, 50/60 Hz power is wired to the wider-spaced
strip on left side of terminals.
2. Typically Black wire to 'LINE', White wire to 'NEUTRAL',
and Green wire to 'EARTH'
Lamp cable connection.
Red wire to 'LAMP+'
Black wire to 'LAMP-'
Terminal Connections
to AV38;
.
Red wire to '+24V' terminal
Black wire to 'GND'
24 VDC power
