7
2.0
ELECTRICAL INSTRUCTIONS
2.1 General Instructions:
If additional wiring becomes necessary, it is the responsibility of the installer to provide this wiring and ensure that the wiring meets all
applicable Class 2 requirements as pertains to the installation.
Pay attention to standard Electrostatic Discharge (ESD) precautions when installing the system.

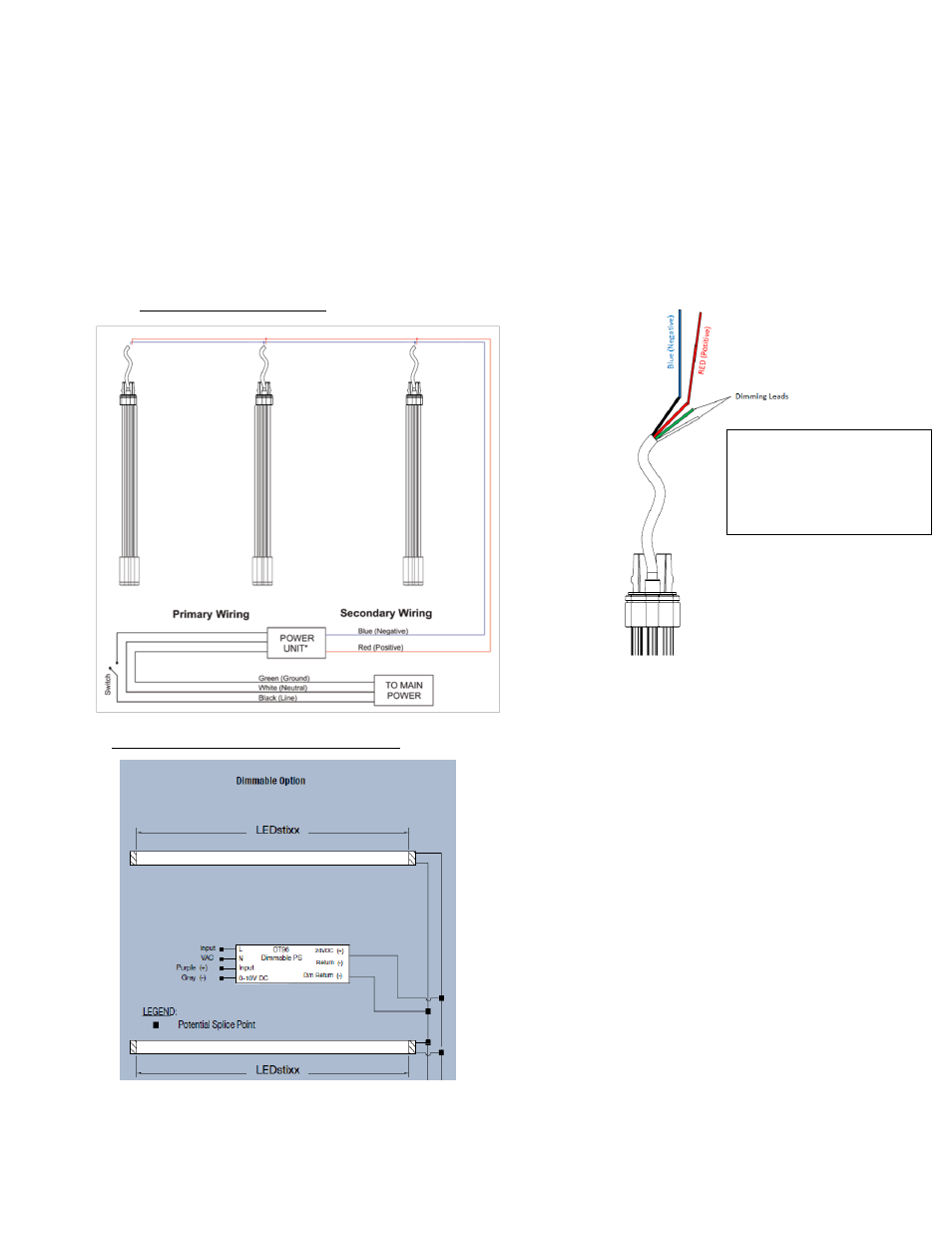

2.2 Wiring Diagrams:
Fig. 14 – Basic Wiring Diagram
Fig. 14.1 – Wiring Diagram with dimming option
LEDstixx Wiring
Blue (Negative)
Red (Positive)
Green & White- Dimming Leads
