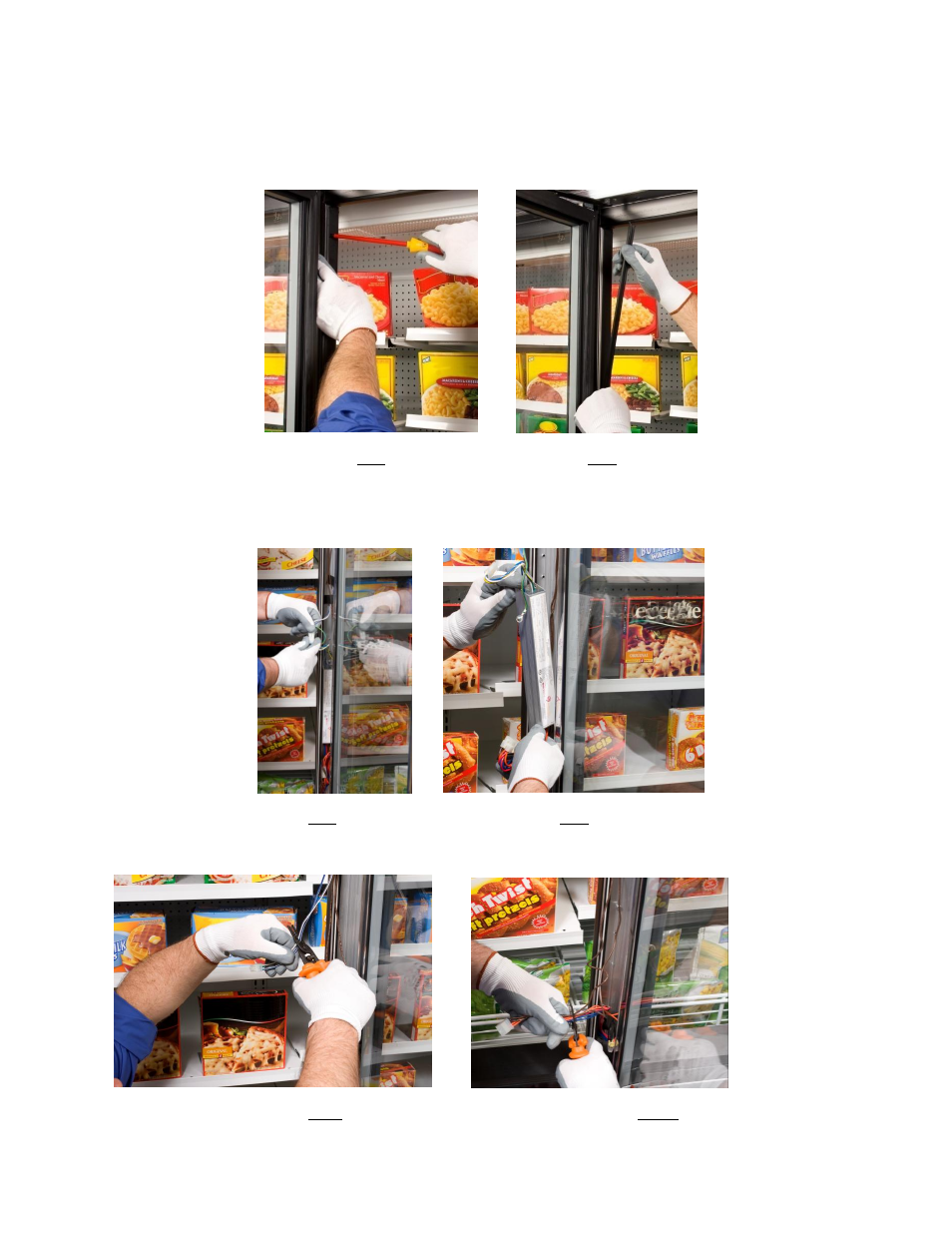

1.5 Power Supply Installation Instructions:

1.5.1

To gain access to the existing ballast, the contact Plate Retainer (Zipper Strip) and Contact Plate must first be removed from
the mullion. (Fig. 5 & 6)

Fig. 5

Fig. 6

1.5.2

The Contact Plate Retainers and Contact Plates should be placed in a location where they will not be damaged.

1.5.3

Disconnect the line and load side connectors from the ballast. Unscrew the ballast mounting screws and remove the ballast
from the mullion. (Fig. 7 & 8)

Fig. 7

Fig. 8

1.5.4

The connectors attached to the remaining load and line side wiring harness must be cut off and the wires stripped to 0.47” or
as required by splice connectors used.

Fig. 9

Fig. 10
