- 13 -

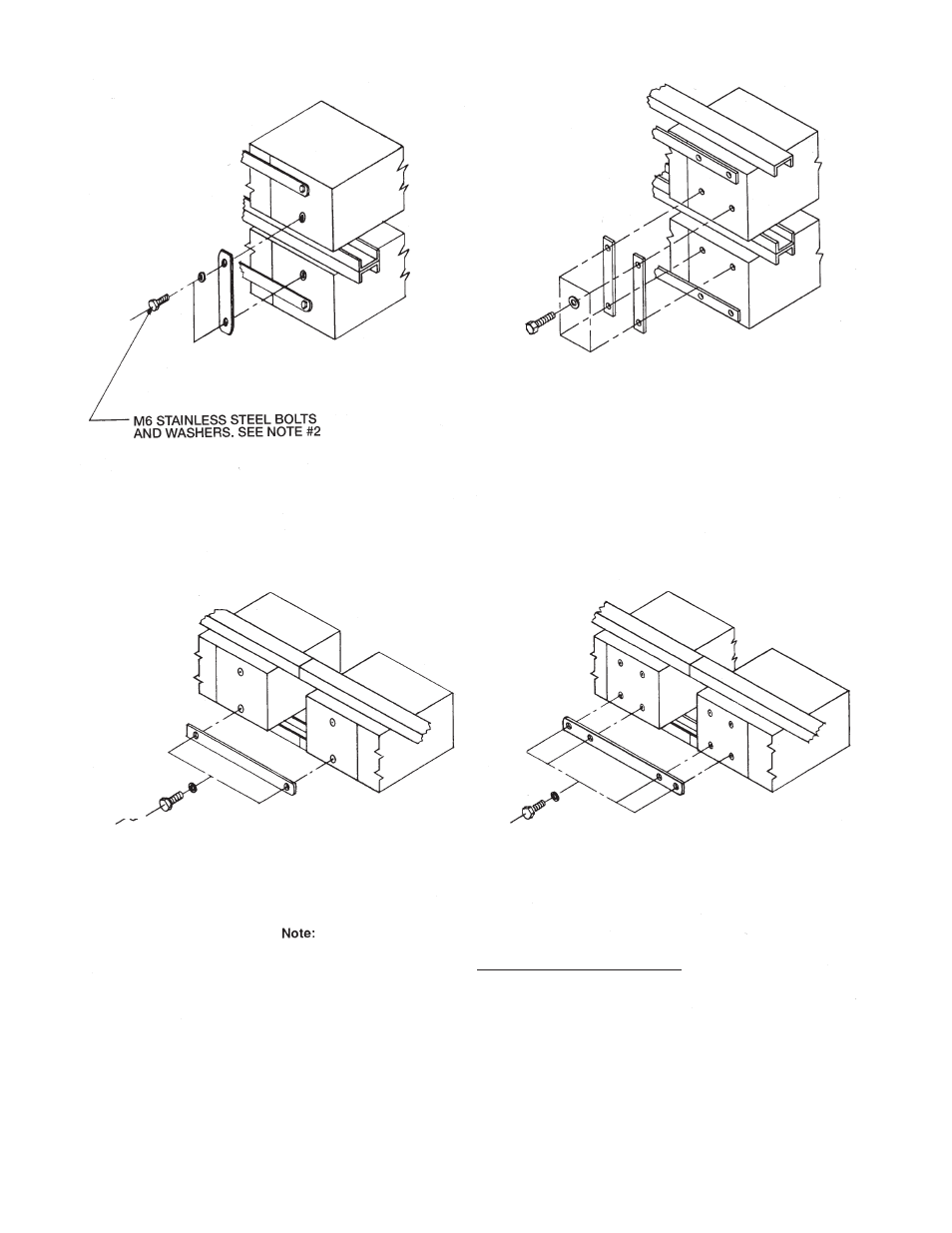

Figure 21
FOUR POST CELLS
INTER-STACK CONNECTION
D
TWO POST CELLS
INTER-STACK CONNECTION
C
1) See Section 9 - Connections
2) Torque hardware to 11.3 Newton-meters (100 in-lbs).
3) Consult layout/wiring diagram received with battery
system
4) Curved edge of washer should face the connector.
VARIOUS INTER STACK AND
INTER-MODULE CONNECTIONS
HORIZONTAL ARRANGEMENTS
FOUR POST CELLS
INTER-MODULE CONNECTION
B
TWO POST CELLS
INTER-MODULE CONNECTION
A
