Consumables Selection Chart
Standard Torch Consumables

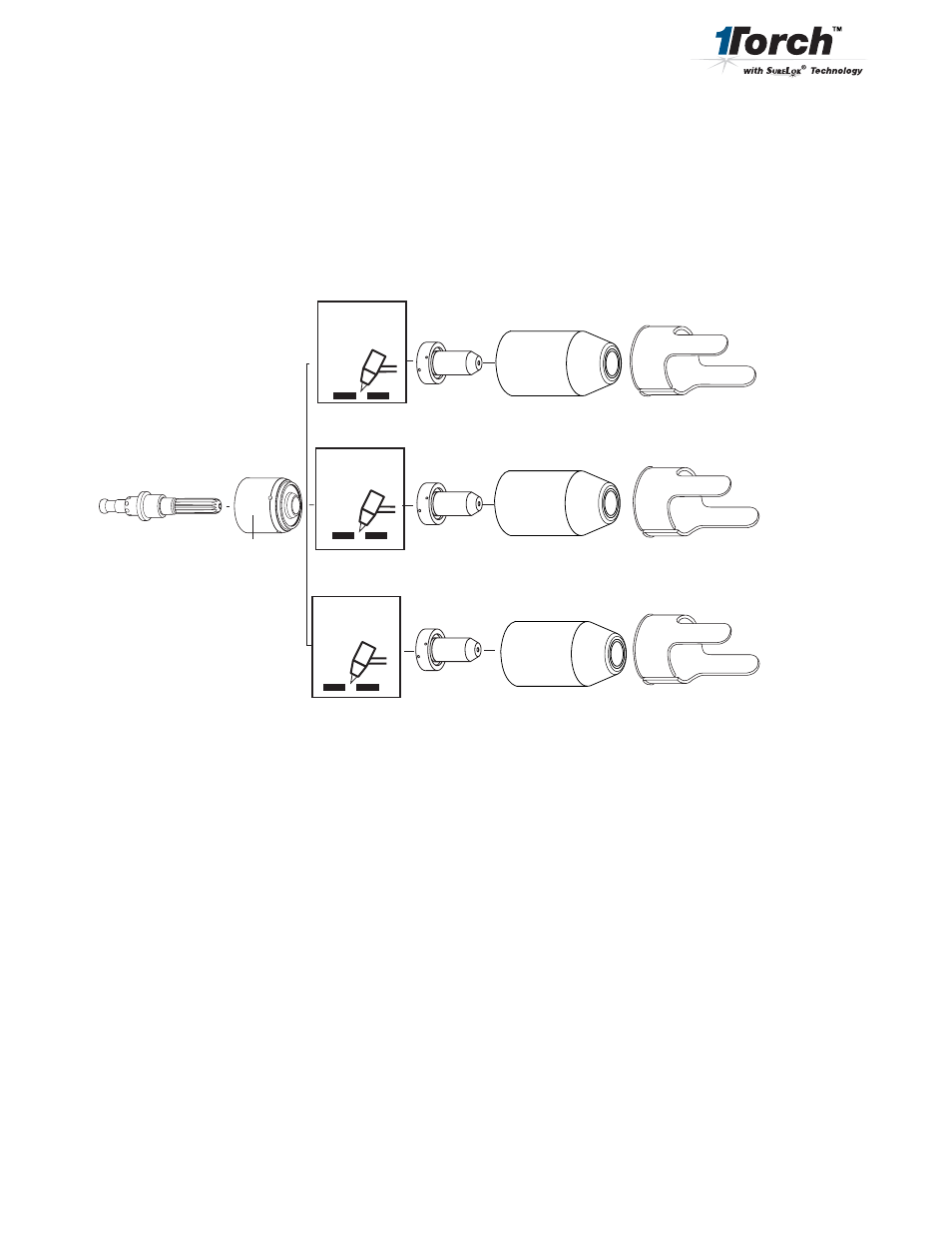

The illustration shows standard consumable parts for standoff cutting with SL60 and SL100 torches.
The electrode and starter cartridge are the same for all applications.
Use only Genuine Thermal Dynamics consumables with this torch. The use of any other consumables may irreparably damage
the torch and/or void the warranty.
Starter
Cartridge
9-8213
Electrode
9-8215
50A 9-8209
Shield Cup
9-8218
90A
Tip:
Tip:
Tip:
CUTTING
CUTTING
CUTTING
Shield Cup
9-8218
Shield Cup
9-8218
Art # A-03961
50A
70A 9-8231
70A
90A 9-8212
Standoff Guide
9-8422
Standoff Guide
9-8422
Standoff Guide
9-8422
