SL60 and SL100 Replacement
Plasma Cutting Hand Torches,
Cat. No. 7-5225, 7-5226, 7-5227
Installation and Operation Instructions
Supplied Parts
The Torches include:
• Torch With Leads
• Control Wire Connectors
• Instructions
• Consumables (Installed on the Torch): Electrode,
Starter Cartridge, Tip, Shield Cup
• Replacement Consumables as follows:
Torch Cat. No. Cutting Tip Electrode
7-5225 (2) No. 9-8209 (50A)
7-5226 (2) No. 9-8231 (70A)
7-5227 (2) No. 9-8212 (90A)
(1) No. 9-8215
Torch Specifications

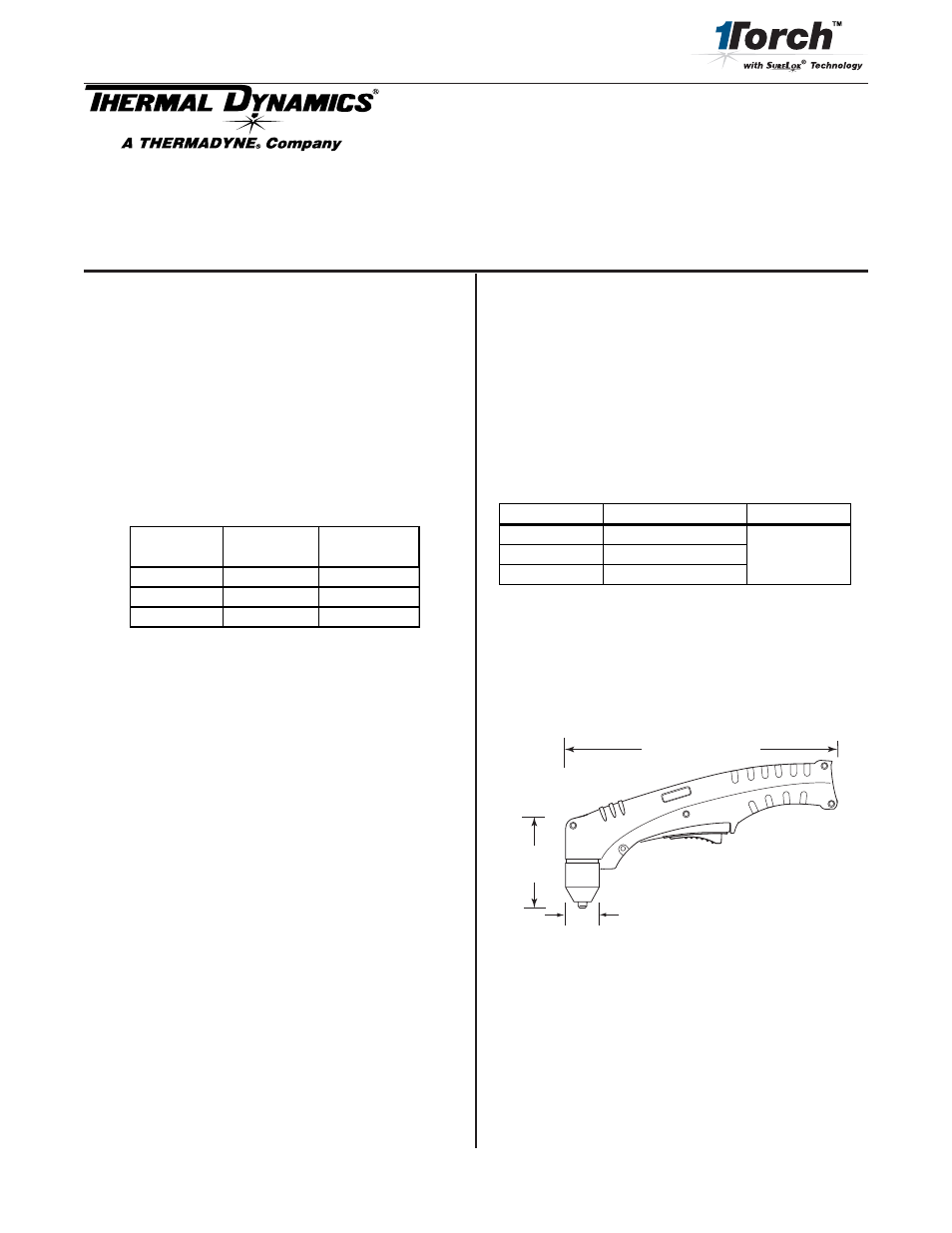

A. Torch Configurations and Dimensions
The torch head is at 75° to the torch handle. The torch
includes a torch handle and torch trigger assembly.
9.5" (241 mm)
3.75"
(95 mm)
1.17" (29 mm) Art # A-03322
Torch Specifications
B. Torch Leads Lengths
20 foot / 6.1 m
© 2004 by Thermal Dynamics Corp., Printed in USA
82 Benning Street, West Lebanon, NH 03784 USA
(603) 298-5711 • www.thermal-dynamics.com
General Information
The 1Torch TM SL60 and SL100 Torches are connected to
power supplies using an Adapter Kit. The torches use
compressed air as both the plasma and secondary gas.
The torches are suitable for standoff cutting.
These instructions are important for the proper installation of
the Torches. Read the instructions thoroughly before attempt-
ing the installation. Keep these instructions for reference.
The torches are supplied as follows:
Catalog No. Torch Model
Consumables
Installed
7-5225 SL60 50A
7-5226 SL100 70A
7-5227 SL100 90A
Options
The following options are available. Refer to the replace-
ment parts list for catalog numbers.
• Leather Leads Covers
• Cutting Guides
• Radius / Roller Kit
• Trigger Guards
• Standoff Cutting Guide
