18 setup for manual arc (mmaw) welding, Transtig 170pi – Tweco 170Pi Transtig User Manual

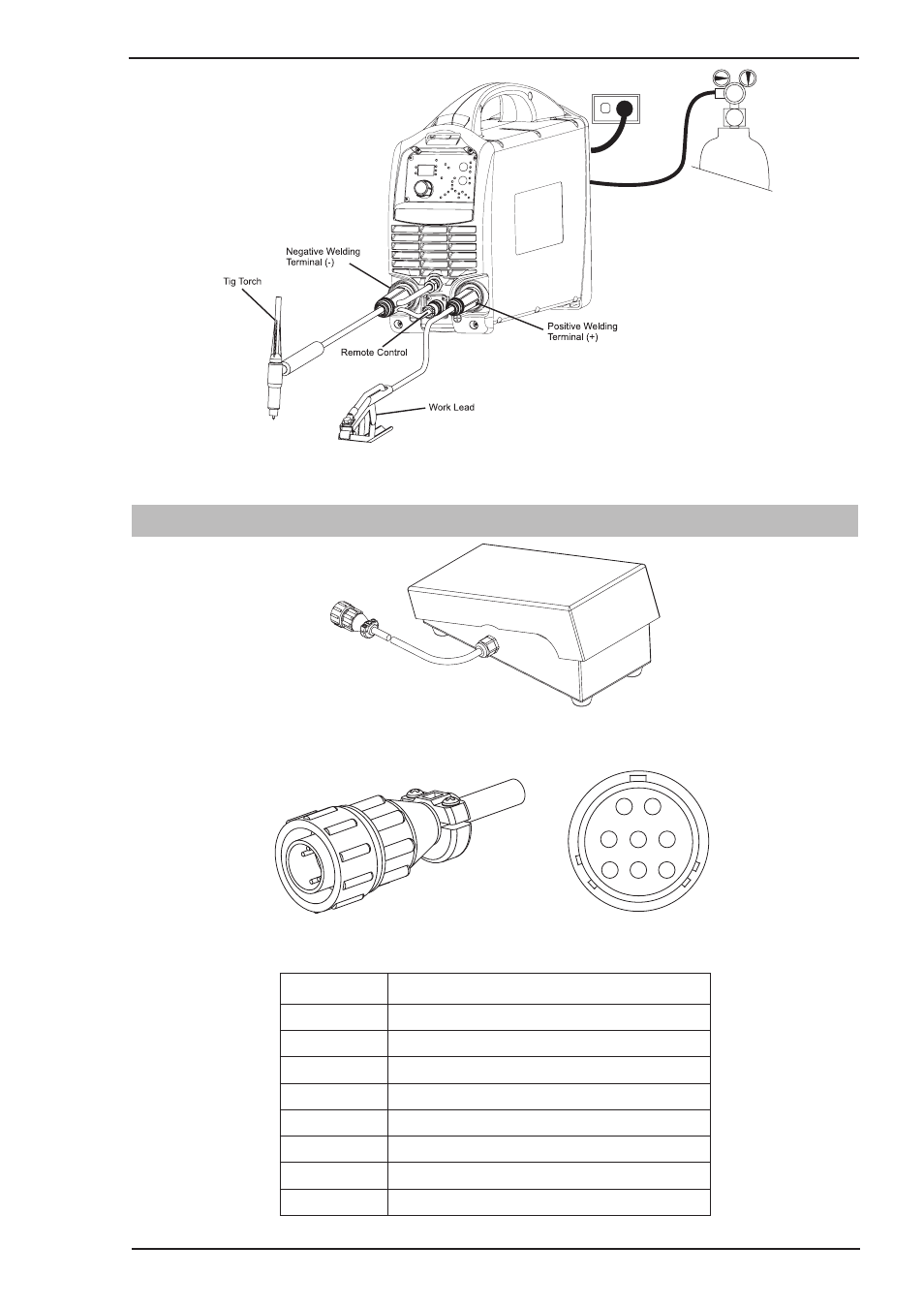

Page 35

TRANSTIG 170Pi
Manual 0-5241
3-17
INSTALLATION, OPERATION AND SETUP
A-11666
Figure 3-7: Setup for TIG Welding
3.09 Foot Control Part No. W4015800 (Optional Accessory)
Art # A-11338
Figure 3-8: Foot Control
Art # A-11339
1
2
3
4
5
6
7
8
Art # A-11340
Figure 3-9: 8 Pin Control Plug
Pin
Description
1
Not Used
2
Trigger Switch
3
Trigger Switch
4
Not Used
5
Potentiometer Maximum
6
Potentiometer Minimum
7
Potentiometer Wiper
8
Not Used
Table 3-2
