ULTRAFEED A 2000
May 1, 2006 2-3
Input Voltage: 115 VAC
Input Frequency: 50/60 Hz
Input Voltage Tolerance ±10%
Maximum Input Current 1.5 Amps
Wire Sizes 0.024 - 5/64" / 0.6 - 2.0 mm
Maximum Wire
Coil/Spool Weight
60 lb. / 27 kg
Feed Rolls 2 (Gear Driven)
Welding Current (I) 450 A @ 100% Duty Cycle
Welding Gun/Torch Size
(Tweco #4 Std)
5-8" (15.9mm) nominal
Maximum Shielding Gas
Inlet Pressure
100 P.S.I. / 6.9 Bar
Weight (Less Wire) 30 lbs. / 13.5 kg
Dimensions HxWxD
10.3 x 12.4 x 19 in.
262 x 315 x 483 mm
Approvals NEMA EW 3
IEC 60974-1 (CE)
Wire Speed Range
for All Filler Wire Sizes 30 - 650 ipm
.76 - 16.6 m/min
UltraFeed A 2000 Specifications
Table 2-1: Product Specifications
Art # A-07319
A 2000 A 2000 A 2000

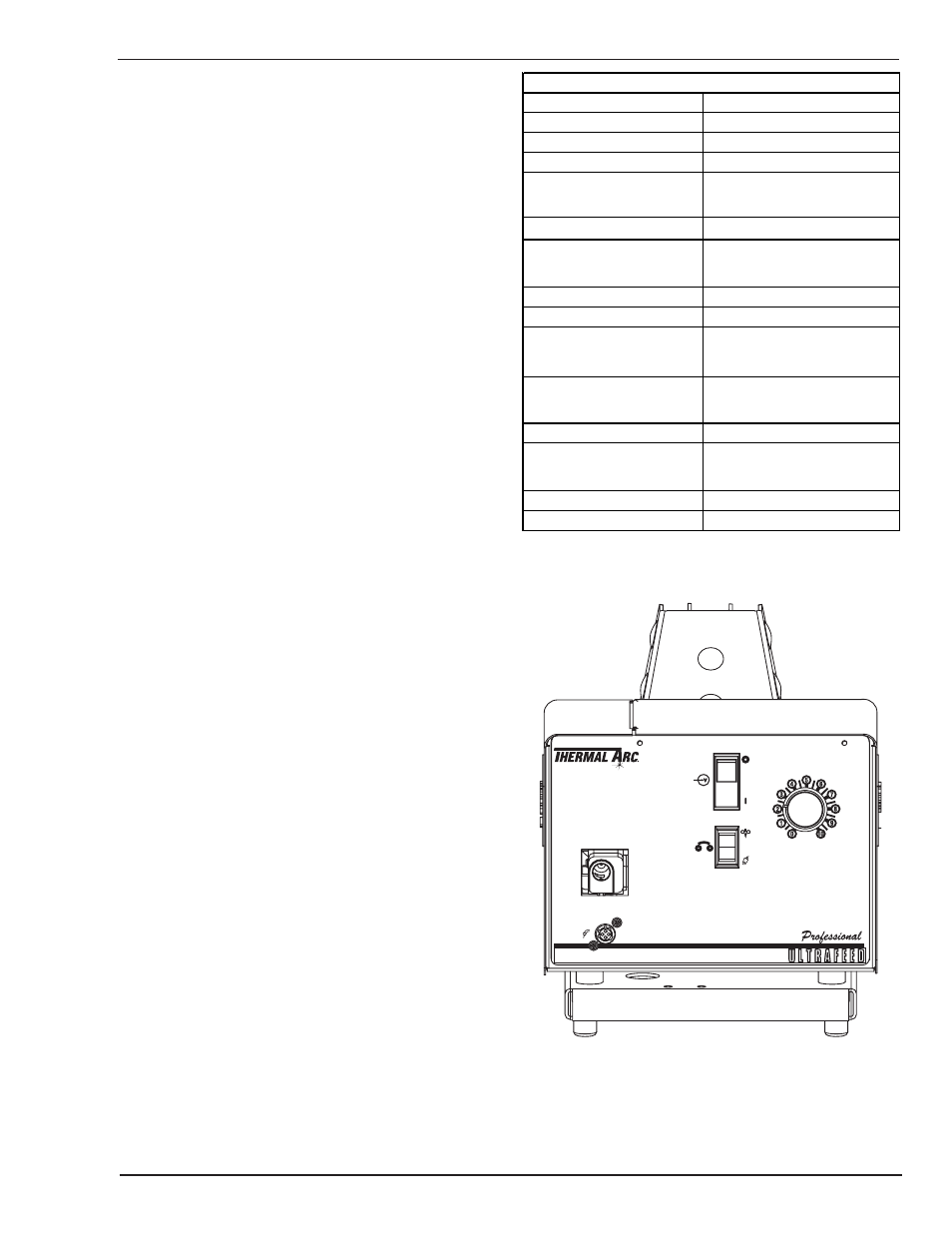

Figure 2-1: ULTRFEED A 2000 Front View
2.05 General Information
The ULTRAFEED A 2000 is a semiautomatic, Variac
controlled wire feeder capable of a 100% duty cycle. The
system offers both load and line voltage compensation
helping to maintain a constant wire feed speed, even with
changes in the input voltage and/or load. The wire feeder
comes complete with a wire spool support assembly.
The ULTRAFEED A 2000’s sheet metal box totally encloses
the solid state control circuitry. A hinged, latched
feedhead cover allows quick and easy access to the
feedhead featuring tool-less quick change feed rolls.
The ULTRAFEED A 2000 comes with an abundance of
standard features including:
• an on/off rocker switch
• a circuit breaker for total system protection
• a wire feed speed control
• an inch switch
• a gas purge switch
• electromechanical brake for precise wire stopping
• two quick change, gear-driven feed rolls
The ULTRAFEED A 2000 has been designed to comply
with CSA NRTL/C, NEMA EW 3, and IEC 60974-1
standards.
