DESCRIPTION OF EQUIPMENT
General:
The SP-2001 Spool Gun is a state-of-the-art weld-
ing gun for use in aluminum welding. The lightweight
and portable SP-2001 Spool Gun comes complete
with a wire feed speed control built into the handle
and either a 25 ft. or 50 ft. long cable assembly.
The SP-2001 Spool Gun must be used in conjunc-
tion with a control box (not included with the SP-
2001 Spool Gun package) and a DC type power
source. The DC type power source can have a CC
or CV output; however, best results are obtained
with a CV output.
Product Specifications:
Wire Type ................................Aluminum
Wire Size .................................0.030”, 0.035”, 3/64”
Wire Package ..........................1 Lb.
Wire Feed Speed Range.........50 - 650 IPM
Welding Current ......................250 A/X =60%
................................................200 A/X =100%
Motor Voltage Rating...............24 VDC
Weight of Spool Gun ...............3 Lbs.
Weight of Spool Gun ...............
with 25’ Cable Assembly .........14 Lbs.
Weight of Spool Gun
with 50’ Cable Assembly......22 Lbs.
Spool Gun Components:
The following figures describe and show the vari-
ous components of the SP-2001 Spool Gun.

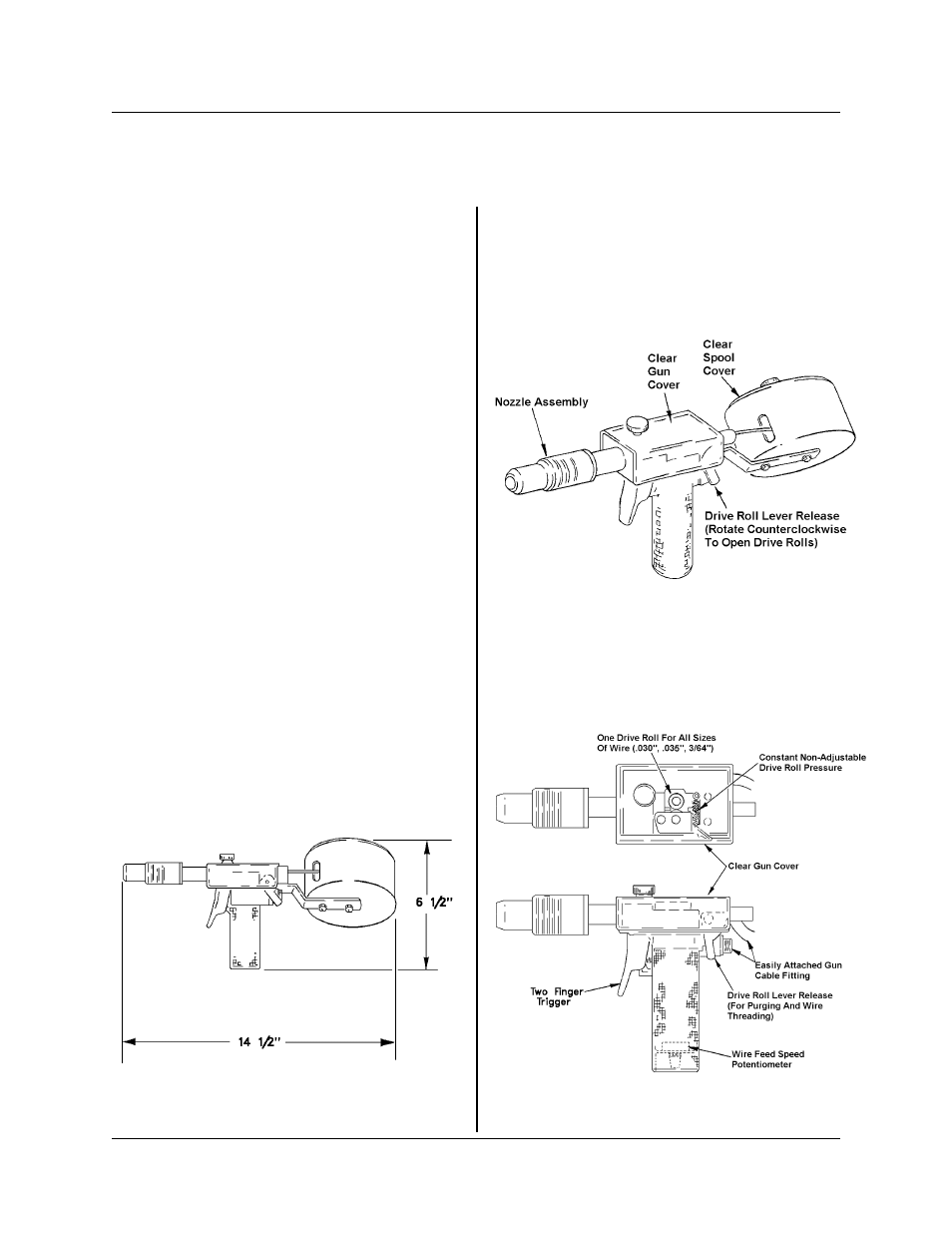

Figure 3-1 SP-2001 Spool Gun Dimensions
Figure 3-2 SP-2001 Spool Gun Assembly
Figure 3-3 Special Features of SP-2001 Spool Gun
430429-287
DESCRIPTION OF EQUIPMENT
April 6, 1998 Revised 3-1
