CUTMASTER 152
INTRODUCTION Manual 0-4987 2-2

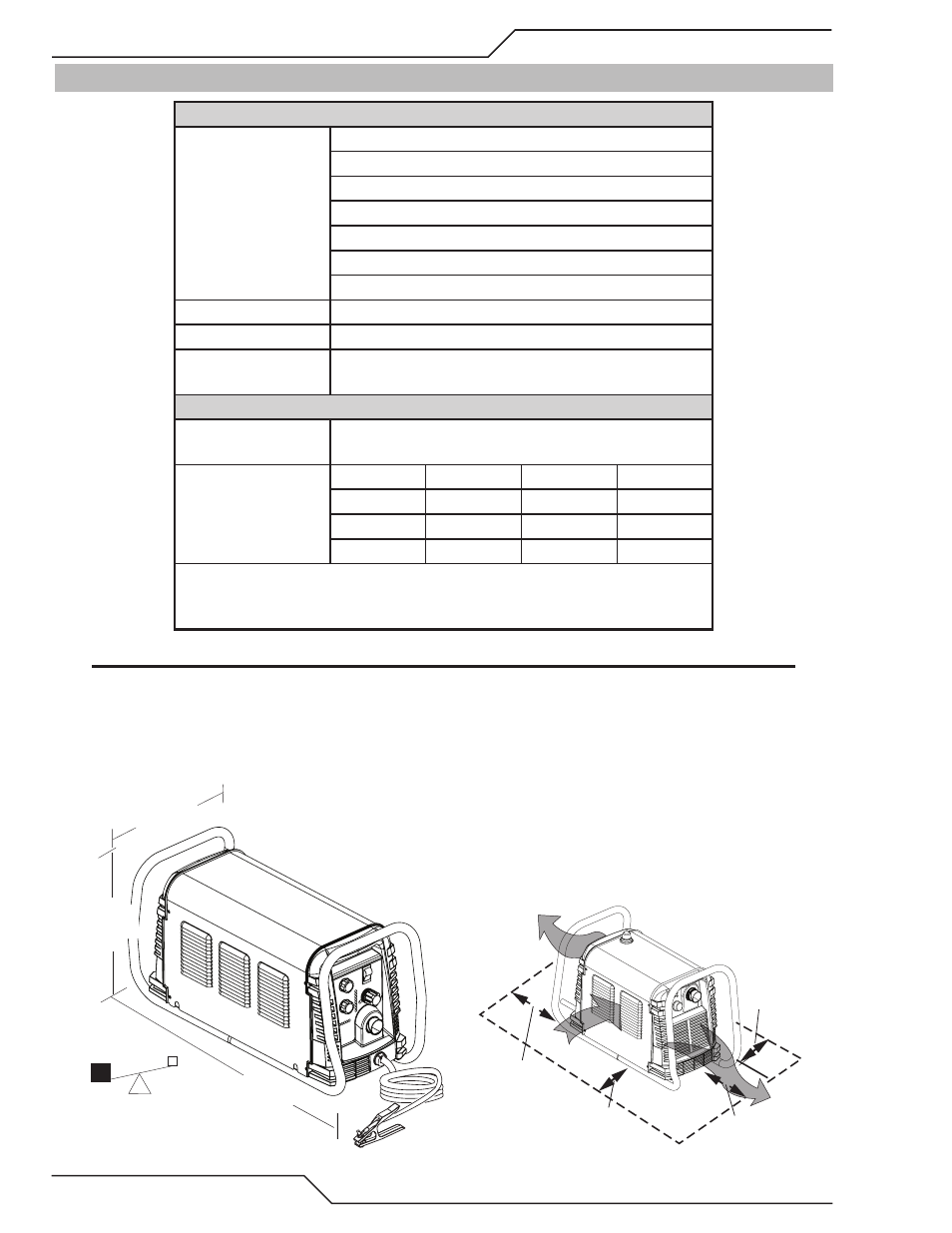

2.04 Power Supply Specifications
CutMaster 152 Power Supply Specifications
Input Power 208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), Three Phase, 50/60 Hz
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), Three Phase, 60 Hz
600 VAC (540 - 630), Three Phase, 60 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 120 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
CutMaster 152 Power Supply Duty Cycle *
Ambient Tempera-
ture
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units Duty Cycle **60% 80% 100%
Current 120 120 100
IEC IEC IEC
DC Voltage 128 128 120
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low
or the output voltage (DC) is higher than shown in this chart.
**60% at 208/230V 1 Phase input ONLY
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These speci-
fications include calculating an output voltage based upon power supply rated current. To facilitate
comparison between power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
30.5"
774.7 m 63 lb / 28.6 kg
10.75"
273 mm
16.375"
416 mm
Art # A-08358
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
