5 OPERATION
5.1 System Operation with Standalone Controller
5.1.1 State Diagram of Standalone Controller
The standalone controller allows operation with manual speed setting (Button Control Mode) as well as
extended operation with analog speed setting (Analog Control Mode). Figure 23 shows the state
diagram, which
can be controlled with the manual buttons and the signals on the “USER INTERFACE”
connector. The operation mode can be chosen
by pressing the “UP” and “DOWN” buttons
simultaneously for five seconds. For the standard firmware, D6.25, the default setting from the factory is
“Button Control Mode”.

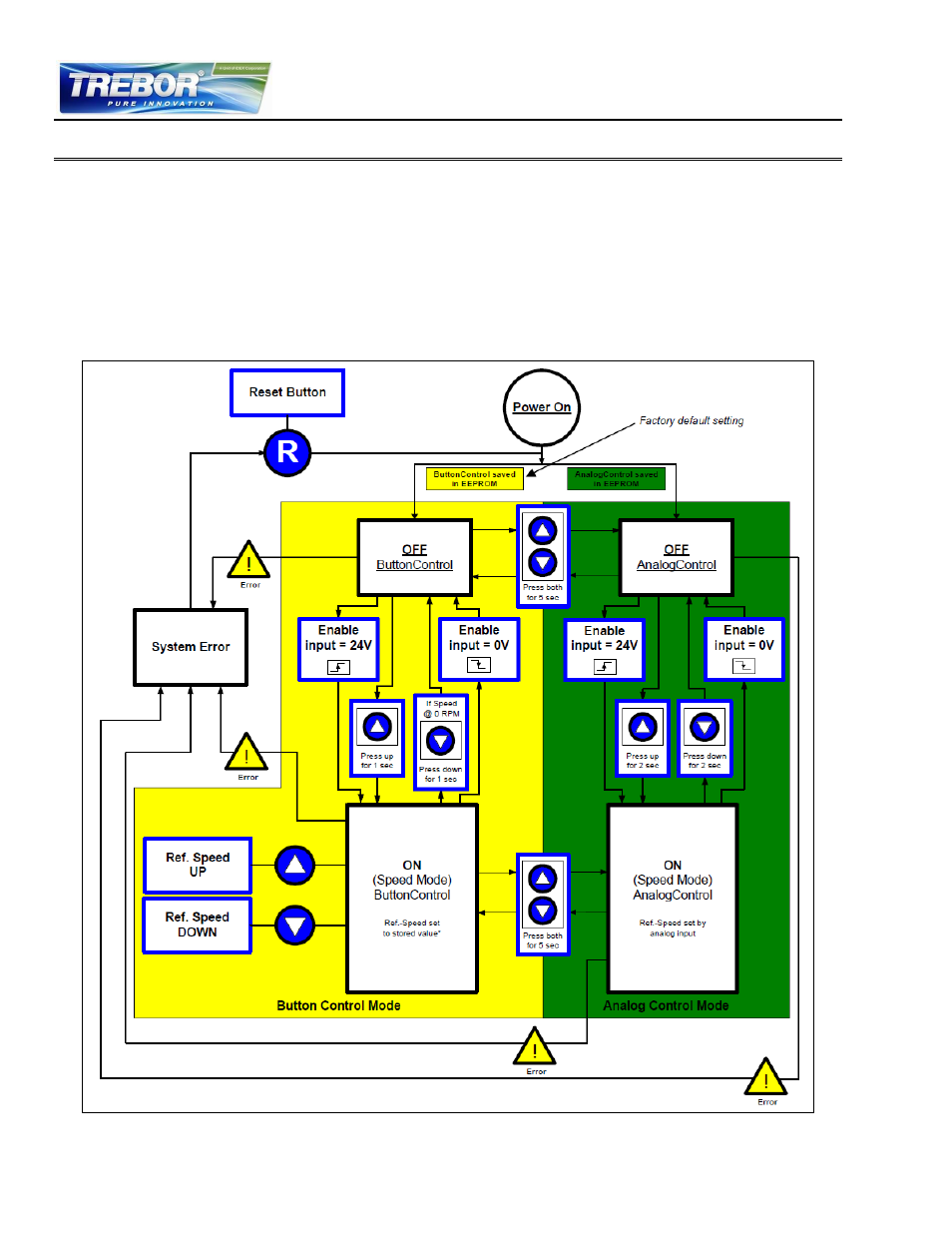

Figure 23 - State Diagram for Standalone Controller Operation
(Description is for firmware D6.25 with Revision > 01, for other configurations refer to alternate firmware documentation)
