REV6 OPERATION / MAINTENANCE MANUAL
13
CONTENTS

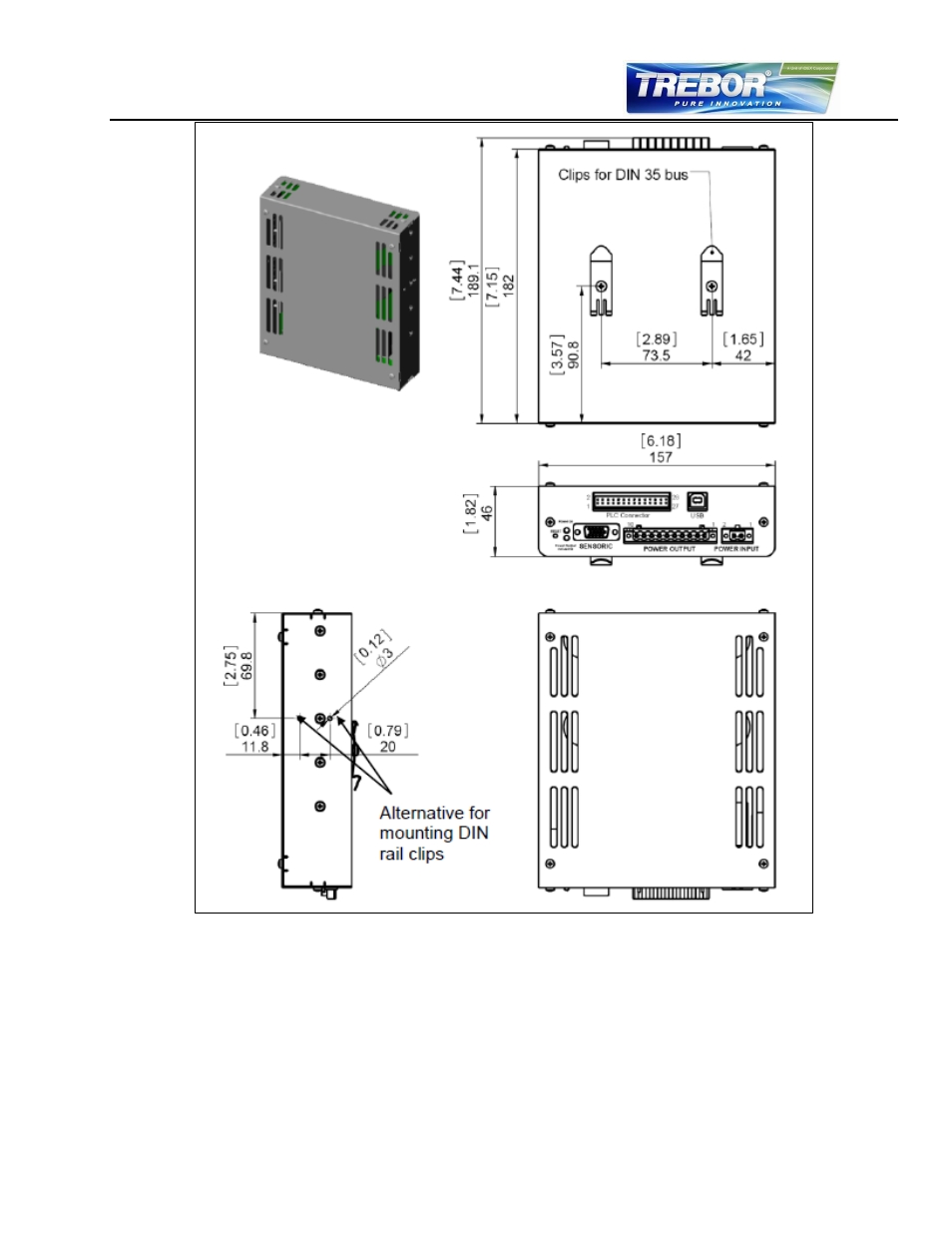

Figure 9
– Controller Basic Dimensions
2.6 Air Cooling Module
The motor can be cooled by using the air-cooling module. This module attaches to the back of the
pump motor with four bolts. Section 3.4.1 gives more information on motor cooling requirements. Figure
10 shows the dimensions of the motor with the attached air-cooling module.
