REV6 OPERATION / MAINTENANCE MANUAL 22 CONTENTS
4 INSTALLATION
4.1 Electrical Installation of Controller
4.1.1 Overview
The Rev6 standalone controllers have signal processor controlled power converters with four switched
inverters for the drive and the bearing windings of the motor. The signal processor allows precise
control of pump speed and impeller position. Figure 20 shows the interfaces of the standalone
controller with standalone and minimal PLC functions.

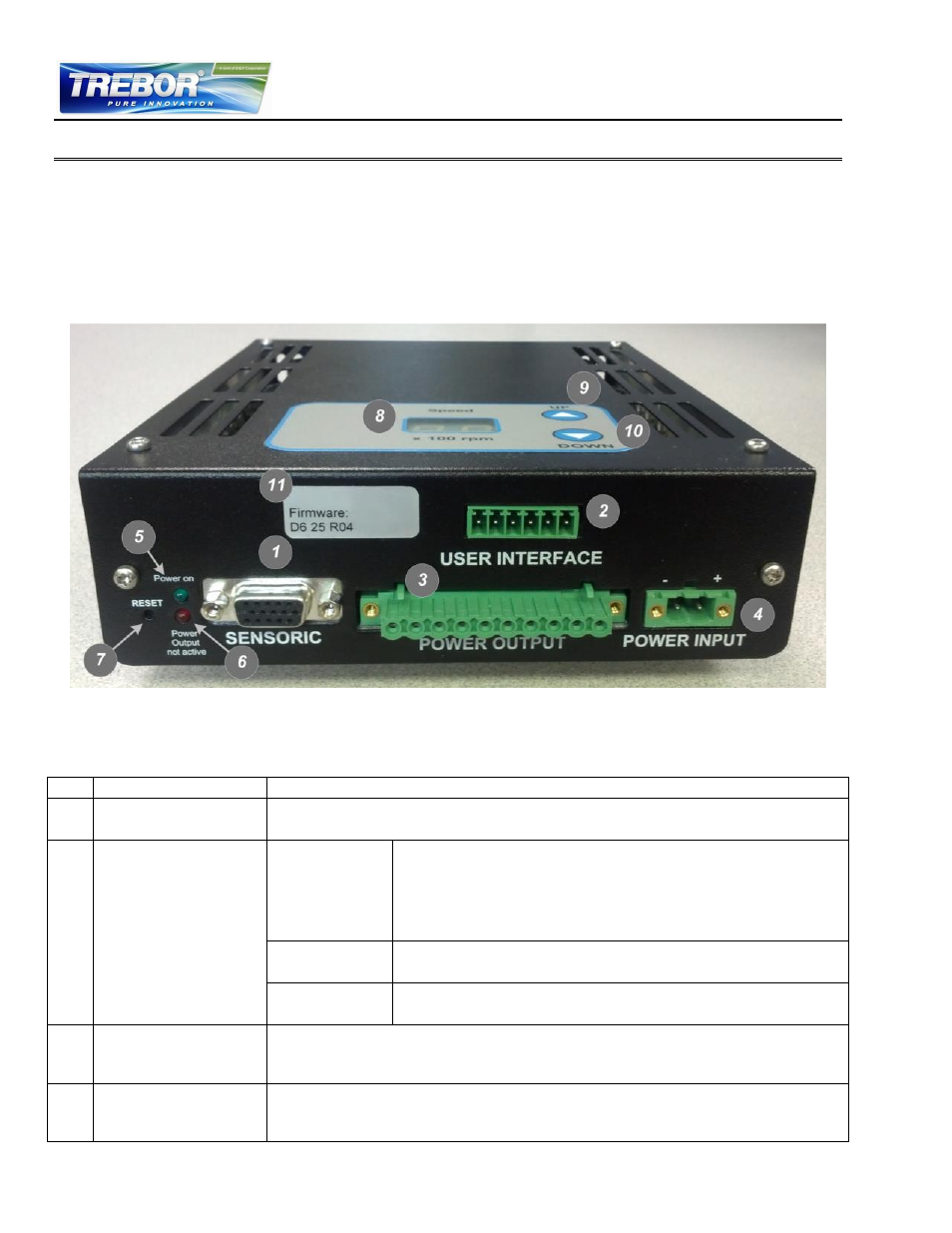

Figure 20 – Overview of the Standalone Controller Interface
Table 7 – Interface Description of Standalone Controller
Item Interface Description
1 “SENSORIC”
Position, field and temperature sensor signals from motor
Torque spec. for tightening of connector screws: Min. = 0.4, Max. = 0.6 Nm
2 “USER INTERFACE”
1 Digital Input
Galvanic isolation with optocoupler
Lowest input voltage for high level detection: min. 5 V; typical 24 V /
16 mA; maximum 30 V / 20 mA
Highest input voltage for low-level detection: max. 0.8 V
Minimum input resistance: RIN = 2.2 kΩ
1 Digital Output
Galvanic isolation with relay
Relay: 1A / 30VDC, 0.3A / 125 VAC
1 Analog Input
Analog current input: 4 – 20 mA
450 Ω shunt input
3 “POWER OUTPUT”
Drive and bearing currents of the motor
Torque spec. for tightening of connector screws on motor side: Min. = 0.5 Nm, Max. = 0.6
Nm
4 “POWER INPUT”
DC power input
Torque spec. for tightening of connector screws on motor side: Min. = 0.5 Nm, Max. = 0.6
Nm
