EVOLVE 55E PUMP OPERATION / MAINTENANCE MANUAL PAGE 5
1.3 OPTIONAL END-OF-STROKE PROBE INSTALLATION
Optic Cable: 1mm core; 1/4” PFA protective tubing.

Install seal into head.

Install probe assembly into head.

Thread probe cap into head hand tight only. No tool needed.
 Connect fiber optic cable to sensor. NOTE: Minimize bends in fiber optic cable to 2”
radius minimum to help ensure optimum signal strength.

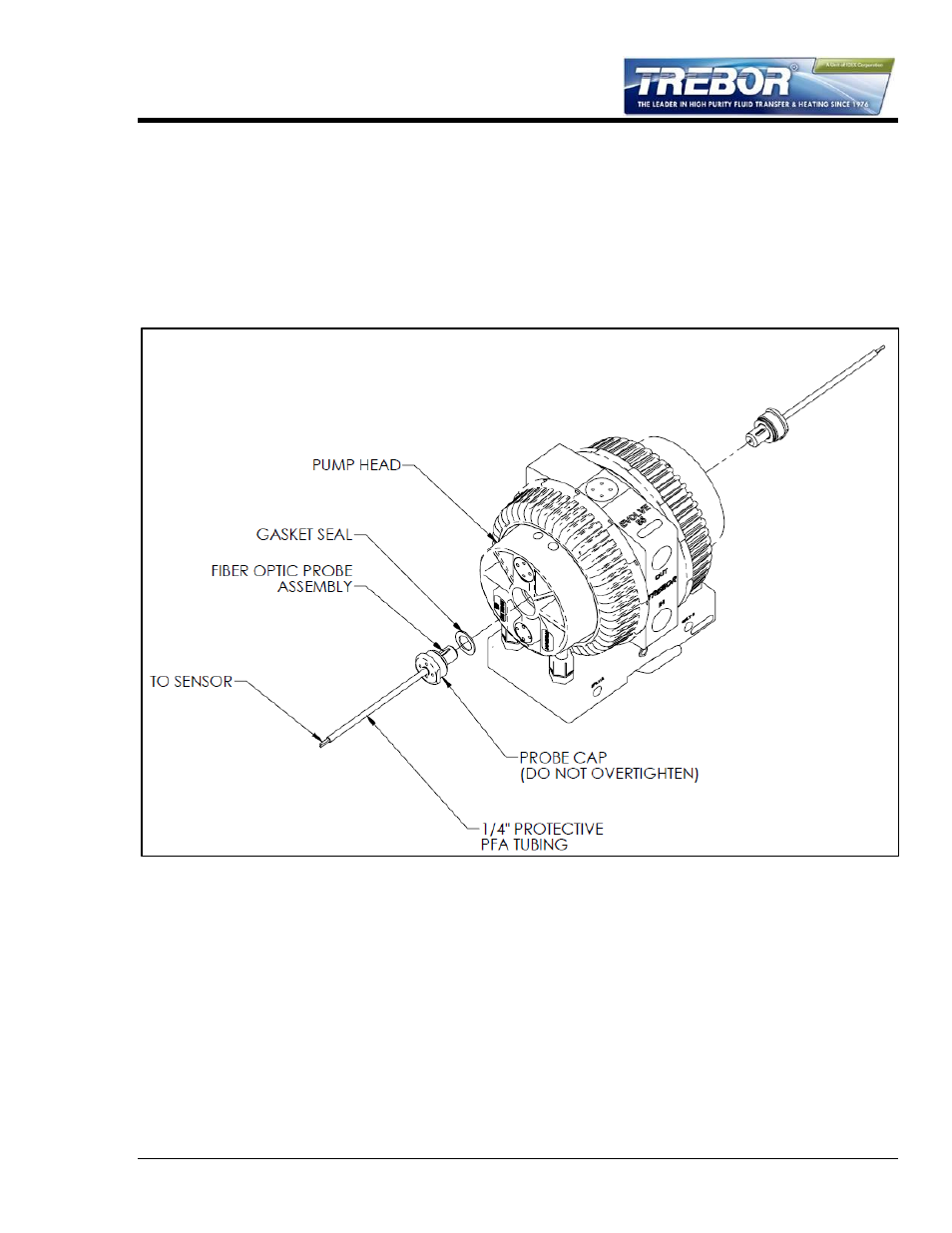

Figure 1-2: End-of-Stroke Sensor Installation
1.4 REMOTE EXHAUST CONNECTION
Some installations may benefit from remotely exhausting air from the pump to eliminate
unwanted air turbulence or to prevent potentially damaging chemical vapors from entering
the pump air cavities.

Remove existing Muffler Assemblies from the pump base.

Replace Muffler Assemblies with Exhaust Plug
 Remove Pipe Plug (¼” NPT) from the pump base. Install the appropriately sized
fitting and tubing (not provided) to remote exhaust.
