EVOLVE 55E PUMP OPERATION / MAINTENANCE MANUAL

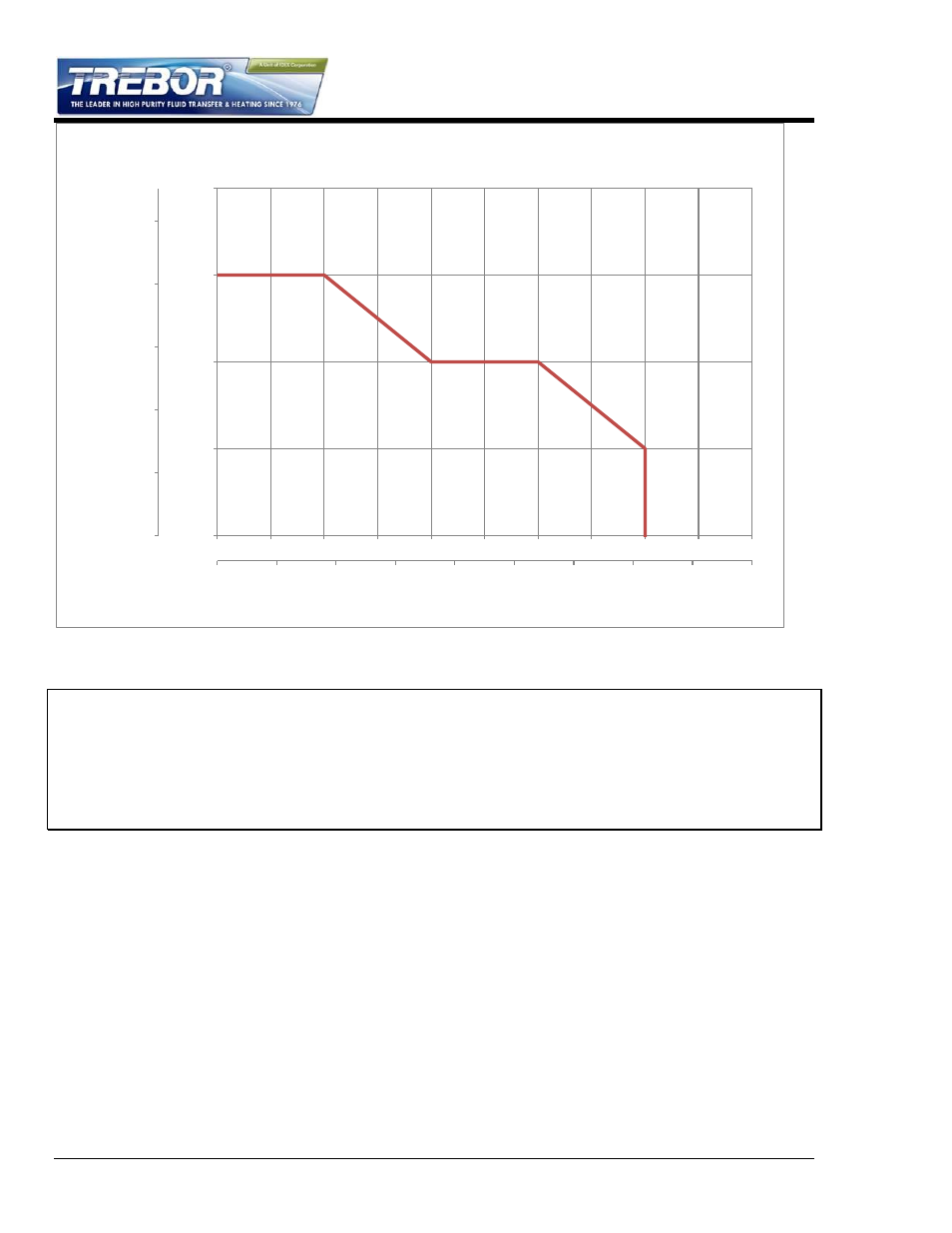

Figure 3-2: Pressure vs. Fluid Temperature Chart
Recommended Maximum Pump Operating Levels
NOTE:
1. The above graphs are not representative of all operating conditions
– field application results
may vary.
2. Be sure that fittings and tubing used are capable of operating conditions.
Noise level while operating is approximately 80 dB
68°F
88°F
108°F
128°F
148°F
168°F
188°F
208°F
228°F
248°F
0.28 MPa
0.38 MPa
0.48 MPa
0.58 MPa
0.68 MPa
0.78 MPa
40 PSIG
60 PSIG
80 PSIG
100 PSIG
120 PSIG
20°C
30°C
40°C
50°C
60°C
70°C
80°C
90°C
100°C
110°C
120°C
Su
p
p
ly
Ai
r
Pr
e
ssur
e
Fluid Temperature
Temperature vs. Pressure
