The menu is displayed in the Menu Field at the top left side of the display. Four menus are available: View, Adjust, Monitor
and Toolbox (identified by the wrench symbol).
Press the Menu button to switch between menus. •

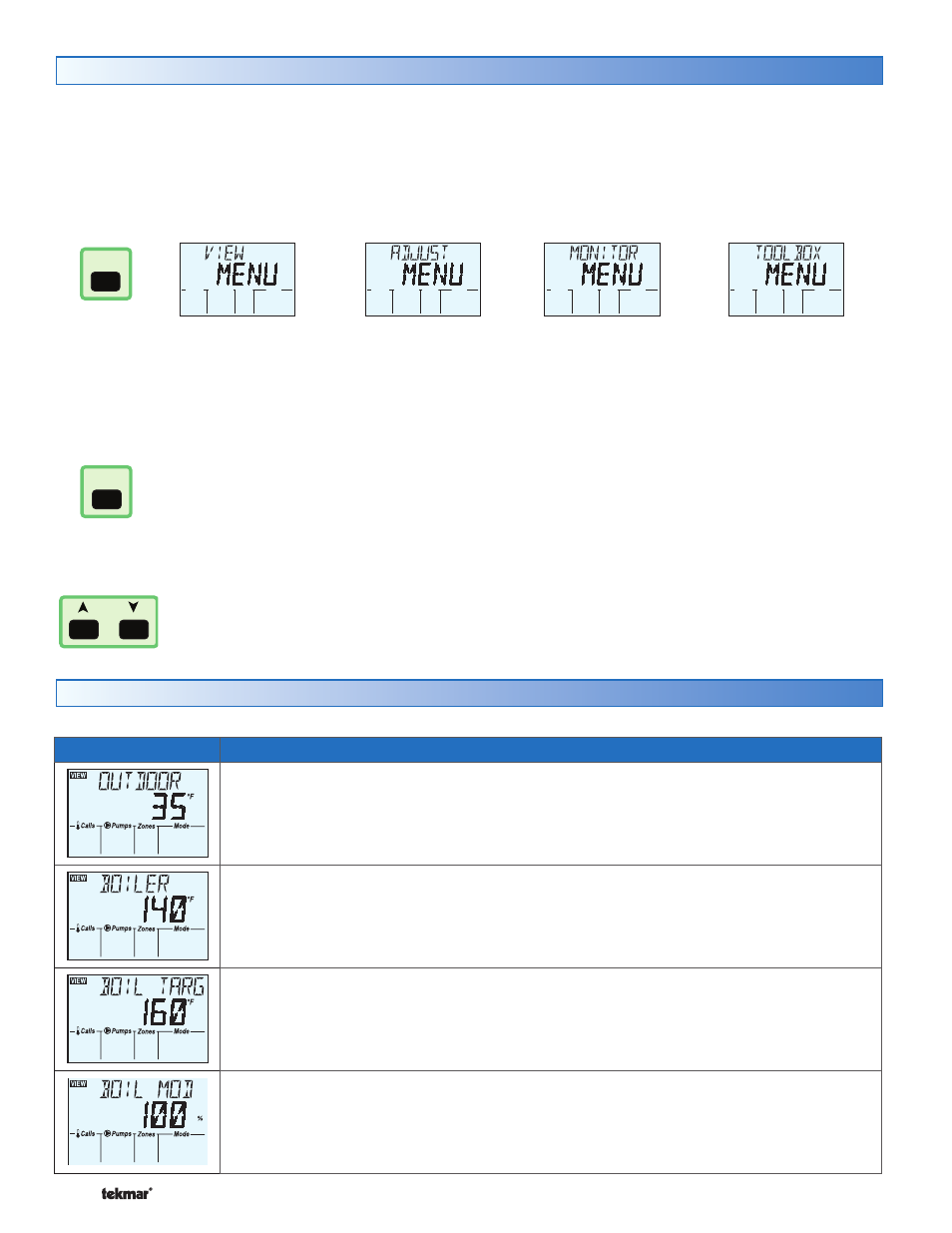

Navigating The Display
The 406 uses a simple user interface to accomplish a variety of functions. The four buttons beneath the display are used
to change the menu, sort through Items, and adjust each setting as required.
Step 1 - Select A Menu --------------------------------------------------------------------------------- ---------------------------------------------------------------------------------
View Menu Items
Outdoor
Boiler
Boil Target
Boiler Modulation •
•
•
•
Adjust Menu Items
Mode
WWSD
Units •
•
•
Monitor Menu Items
Outdoor Low
Outdoor High
Run Time Heat Pump 1
Run Time Heat Pump 2
Run Time Boiler •
•
•
•
•
Toolbox Menu Items
Type 406
Access •
•
Step 2 - Select An Item --------------------------------------------------------------------------------- ---------------------------------------------------------------------------------
Menu
Each menu contains a list of Items that can be viewed and, in some cases, adjusted. Press the item button to scroll through
the list in each Menu.
To view the next available item, press and release the Item button.
To view the previous item, hold down the Item button, and press and release the Up button. •
•
Step 3 - Adjust The Item -------------------------------------------------------------------------------- --------------------------------------------------------------------------------
The Up and Down buttons are primarily used for adjusting settings. To adjust a setting:
Select the appropriate menu using the Menu button.
Select the item using the Item button.
Use the Up or Down button to make the adjustment. •
•
•
Item
View Menu
Item Description
OUTDOOR
Current outdoor air temperature as measured by the outdoor sensor. The outdoor air temperature
is shared to all thermostats in the tekmarNet
® system.
BOILER
Current boiler supply water temperature as measured by the boiler sensor.
Note: This item is only available when a boiler water temperature is selected.
BOILER TARGET
The boiler target is the temperature the control is currently trying to maintain at the boiler supply
sensor. “– – –” is displayed when no heat is required for boiler zones.
Note: This item is only available when a boiler water temperature is selected.
BOILER MODULATION
Current percent modulation of the boiler’s burner.
Note: This item is only available when a modulating boiler is selected.
The View menu items display the current operating temperatures and status information of the system.
